20W 300×300 Surface Mounted LED Flat Light Panel Fixture Warm White

LED Panel light is a kind of elegant and high-grade indoor lighting lamps, its outer frame composed of anodised aluminum, the whole lamp is beautiful and luxurious, not only have good lighting effect, but also can bring nice feeling.

Item: 30x30 LED Panel Light

Power: 12W /18W /20W

Input Voltage: AC85~265V, 50/60HZ

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product video

1. Product Features of 295x295mm LED Panel Light 20W.

• Using PS materials, more than 90% light output, even light, no glare.

• Ultra-thin design: 10mm; High color rendering index is Ra> 80.

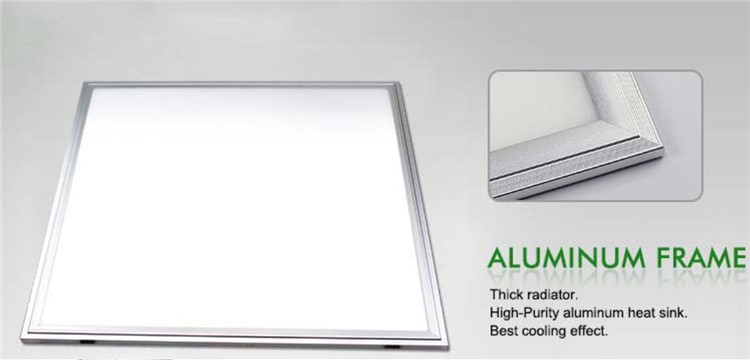

• Pure aluminum frame with bright silver or white processing and good heat dissipation, and high-grade appearance as well.

• Excellent heat dissipation performance effectively ensure the stability for long-term use.

• Instant start-up, no flickering, no noise.

• The light effect well without dark area, efficacy is more than 90 LM/W.

• Unique design, Embedded installation without the accessories. Available for Triac dimmer, 0-10V and DALI system, intelligent controls.

• Installation Type: Recessed , Suspended , Surface Mounted. You can choose the installation method according to the lighting environment.

2. Product Specification:

Model No	PL-3030-12W	PL-3030-18W	PL-3030-20W
Power Consumption	12 W	18 W	20 W
Luminous Flux (Lm)	960～1080lm	1440～1620lm	1600～1800lm

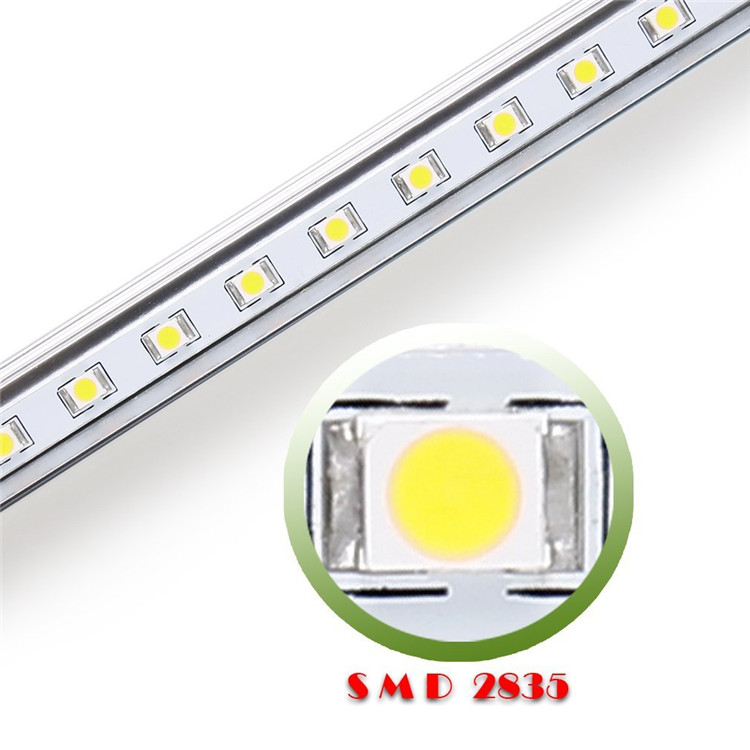

LED Type	SMD 2835
Color Temperature (K)	2800 - 6500K
Color	Warm/Natural/Cool White
Dimension	295x295x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor

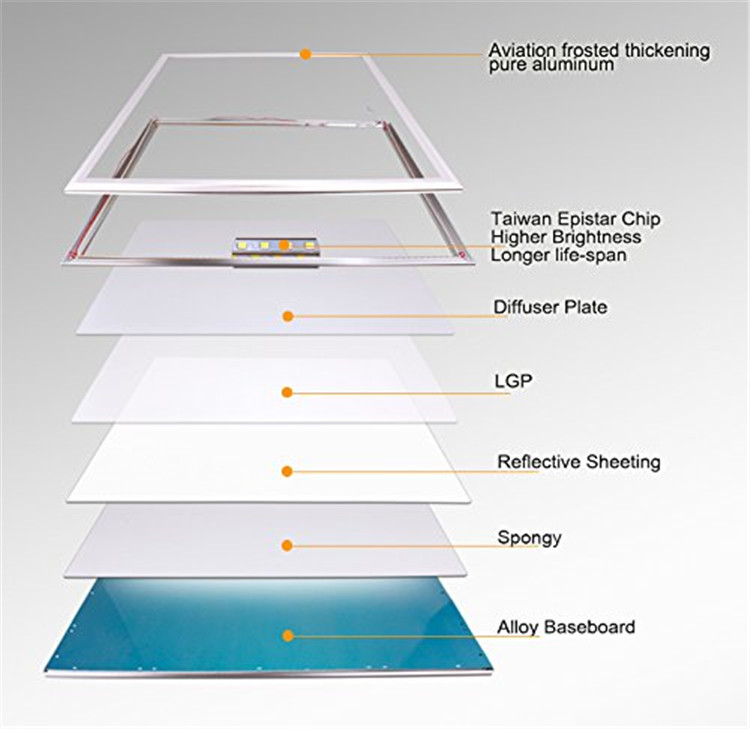

Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years or 5 Years

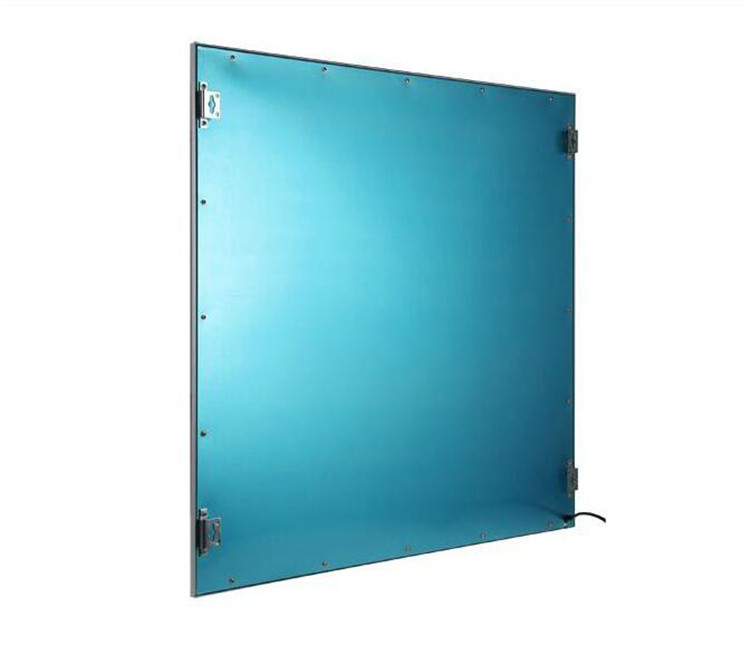

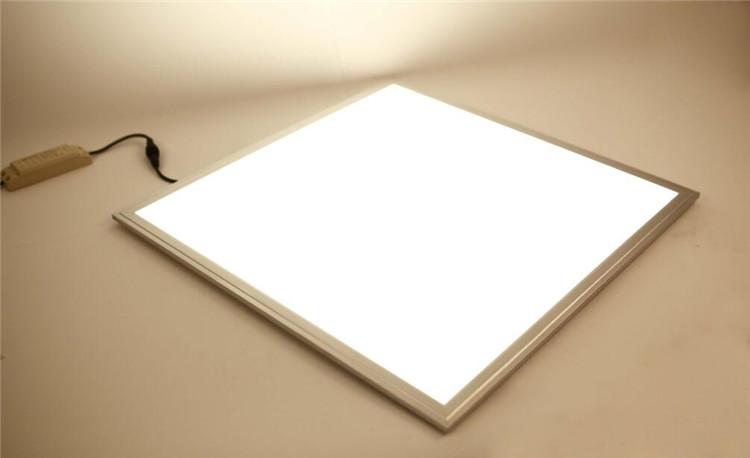

3. LED Panel Light Pictures:

1. led panel ip44 2. dimmable led light panel 5500k 3. led panel light 300 1200 4. 600 600 led panel light 5. led panel light ceiling 6. 600x600 LED Panel Light with clips 7. 600 600 led panel light dimmable

6. led 60x60-Product Detail

7. led 595x595-Product Detail

4. LED Panel Light Application:

LED flat panel light can be used in residential, schools, supermarkets, hotels, conference rooms, factories and offices etc.

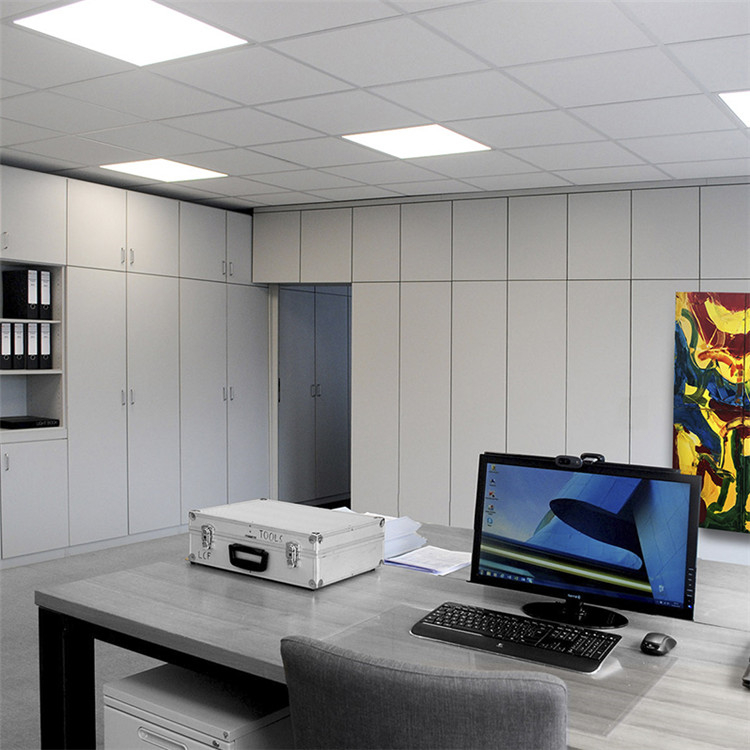

Recessed Installation Project:

10. led office lighting

Surface Mounted Installation Project:

11. surface mount led panel

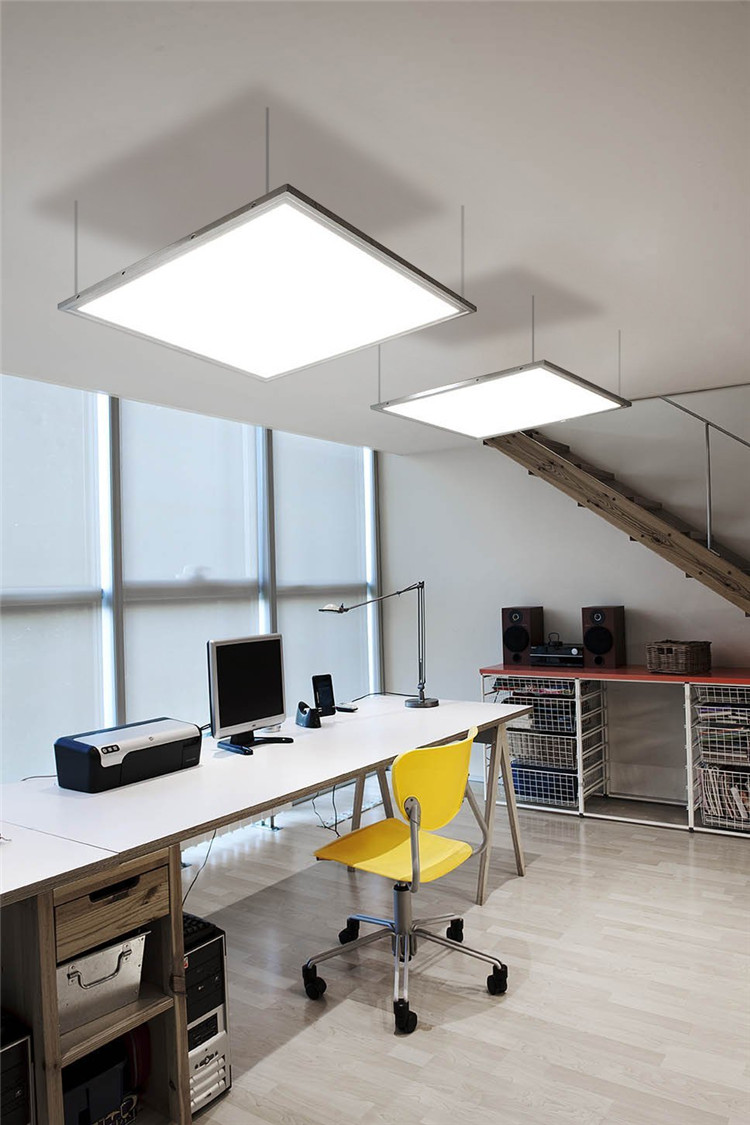

Suspended Installation Project:

12. suspension led panel light 600x600

Wall Mounted Installation Project:

11. 40 watt led panel light

Previous: Kitchen Lighting 18W 30×30 Recessed LED Ceiling Panel Lamp

Next: 36W 40W 48W Recessed 600×600 LED Panel Light 60×60 for Plasterboard Ceiling

For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements. 12. Installation Guide

Suspension Kit:

The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

Items included in the Suspended Mount Kit:

Items	PL-SCK4				PL-SCK6
	3030	3060	6060	6262	3012	6012
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 4				X 6

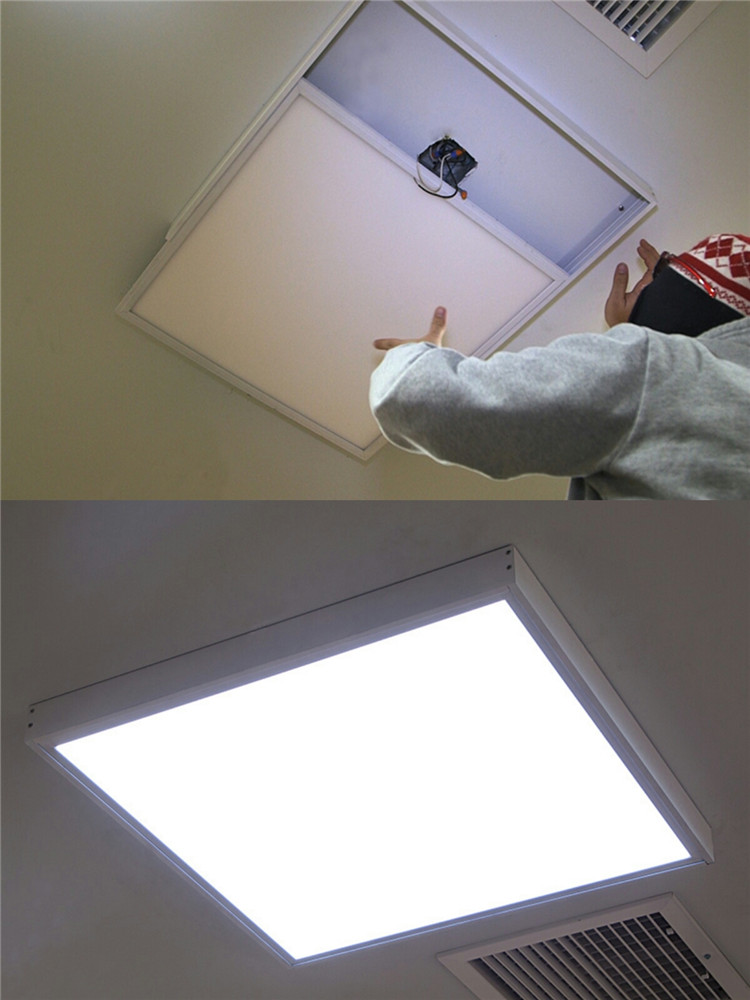

Surface Mount Frame Kit:

This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the three frame sides to the ceiling. The LED panel is then slid in. At last complete the installation by screwing the remaining side.

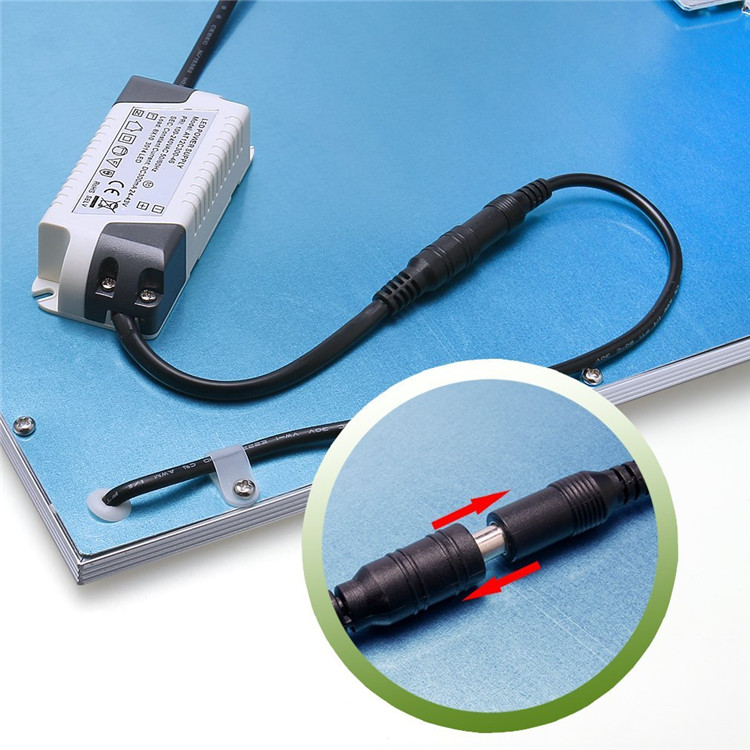

The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

Items included in the Surface Mount Frame Kit:

Items	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Dimension	302x305x50 mm	302x605x50 mm	602x605x50 mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Frame A	L302 mm X 2 pcs	L302mm X 2 pcs	L602 mm X 2 pcs	L622mm X 2 pcs	L1202mm X 2 pcs	L1202 mm X 2 pcs
Frame B	L305 mm X 2 pcs	L305 mm X 2 pcs	L605mm X 2 pcs	L625 mm X 2 pcs	L305mm X 2 pcs	L605mm X 2 pcs
	X 8 pcs
	X 4 pcs			X 6 pcs

Ceiling Mount Kit:

The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the clips to the ceiling / wall, and the corresponding clips to the LED panel. Then couple the clips . At last complete the installation by placing the LED driver at the back of the LED panel.

Items included in the Ceiling Mount Kits:

Items	PL-SMC4				PL-SMC6
	3030	3060	6060	6262	3012	6012
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
