300x1200mm LED Ceiling Panel Lamp 72W LED Panel Light for workshops

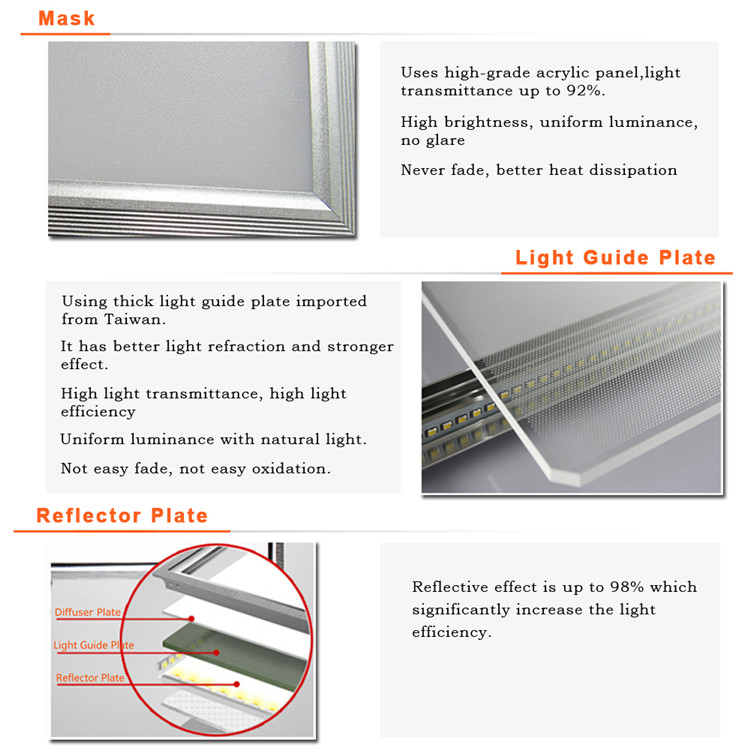

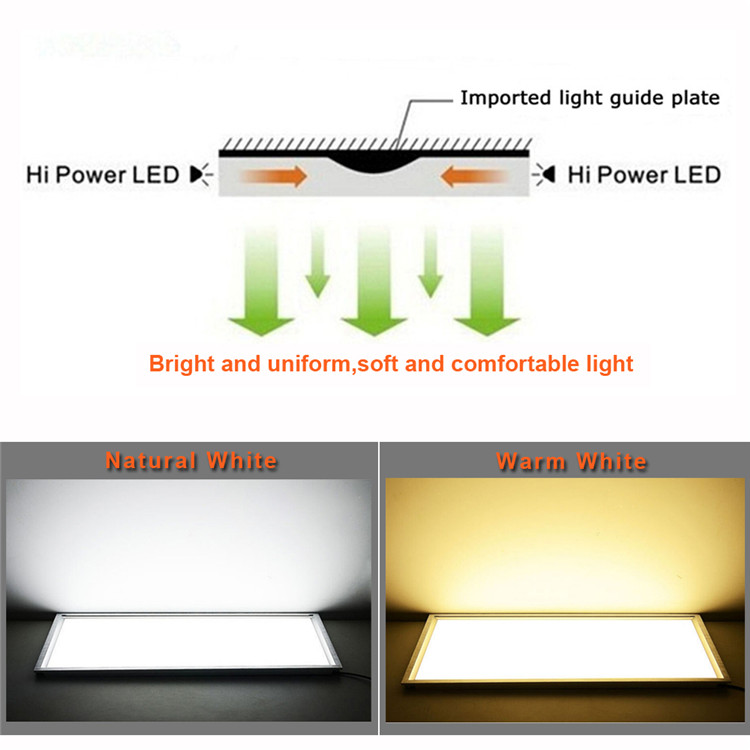

These LED ceiling light fixtures adopt a edge-lit design technique, and this light technology is a new type of energy saving lighting. The LED ceiling light fixture features good multi-color temperature, high luminance, long use age, energy saving and environmental, thus ensuring LED ceiling light fixture can replace traditional lighting systems. The LED ceiling light fixture can be widely used in hotels, offices, residences and conference rooms. The LED ceiling light fixture is made of a shell body, light source, light guide plate, diffuser plate and reflective sheeting etc.

Item: 30x120 LED Panel Light

Power: 36W /40W /48W /54W /60W /72W /80W

Input Voltage: AC85~265V / AC220V-240V, 50-60Hz

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

1. Product Features of 30x120cm LED Panel Light 72W.

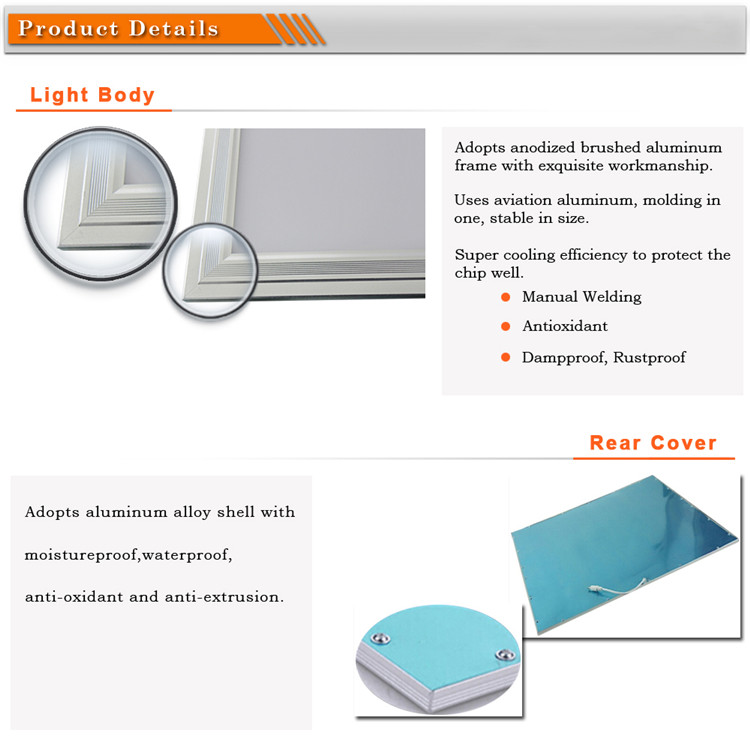

• Lightman led flat panel light adopts 6063 pure aluminum, fully automatic laser welding process, no light leakage, solid without deformation.

• The PS diffuser ensures that the whole lamp with no dark area, no deformation, but uniform lighting.

• Lightman 72w led panel lamp adopts Epistar SMD2835 led chips, high CRI effect, high brightness, the whole lamp luminous efficiency up to 90lm/w.

• No delay on start, no warm up time required, no noise, no flickering.

• No UV or IR radiation in the beam, mercury free, lead free.

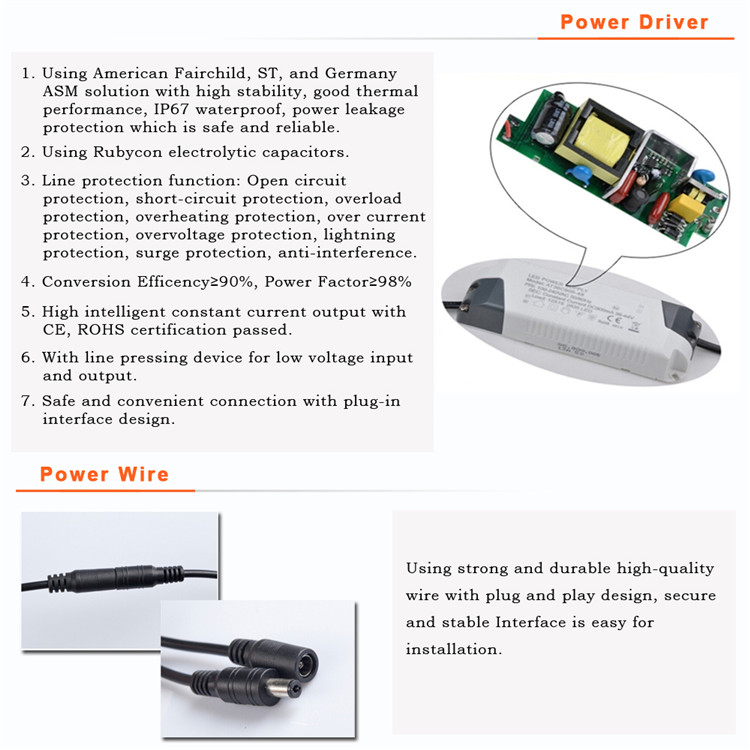

• Lightman led panel light fixture uses constant current led driver, the lamp bead is not affected by voltage fluctuations, and it’s durable.

2. Product Specification:

Model No	PL-30120-36W	PL-30120-40W	PL-30120-48W	PL-30120-54W
Power Consumption	36 W	40 W	48 W	54 W
Luminous Flux (Lm)	2880～3240lm	3200～3600lm	3840-4320lm	4320-4860lm
LED Qty(pcs)	192pcs	204 pcs	252 pcs	280 pcs
LED Type	SMD 2835
Color Temperature (K)	2700 - 6500K
Color	Warm/Natural/Cool White
Dimension	295x1195x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3Years or 5 Years

3. LED Panel Light Pictures:

1. led panel 30x120 2. led panel light 300x1200 3. 30x120 led 4. 295x1195 led panel 5. 30x120 led slim panel

6. led 60x60-Product Detail

7. led 595x595-Product Detail

4. LED Panel Light Application:

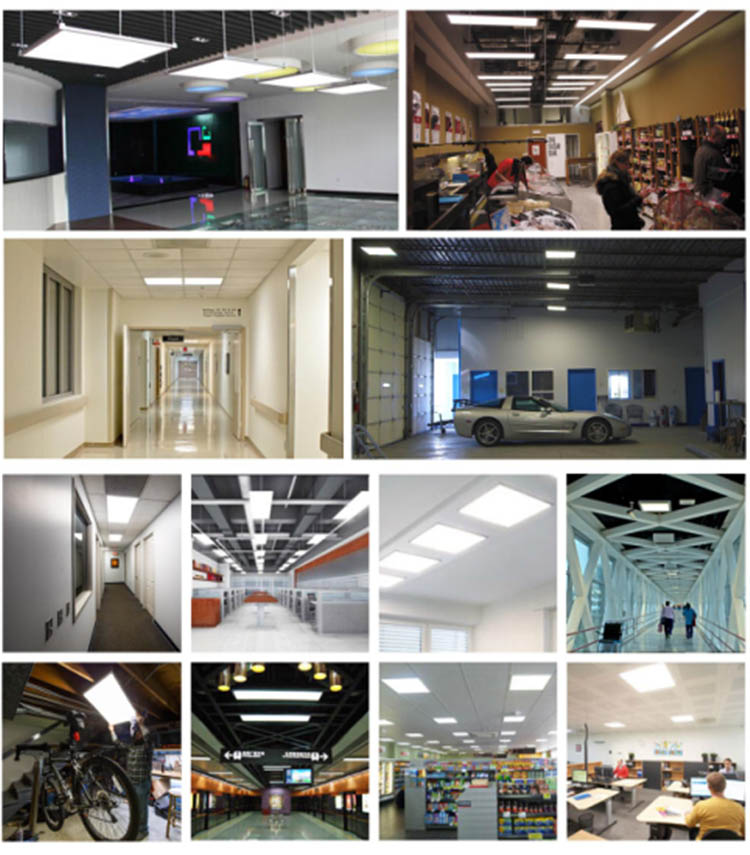

LED light panels for homes, offices, restaurants, hotels, malls, casinos, bars etc; Display lighting for museums, galleries, stores, malls, shop windows, exhibitions etc.

8. led panel light

Previous: 60W 120×30 Recessed LED Flat Panel Ceiling Light For Indoor Lighting

Next: Fireproof Light 80W 300×1200 Suspended LED Flat Panel Lamp

For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements. 12. Installation Guide Suspension Kit:

The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

Items included in the Suspended Mount Kit:

Items	PL-SCK4				PL-SCK6
	3030	3060	6060	6262	3012	6012
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 4				X 6

Surface Mount Frame Kit:

This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the three frame sides to the ceiling. The LED panel is then slid in. At last complete the installation by screwing the remaining side.

The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

Items included in the Surface Mount Frame Kit:

Items	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Dimension	302x305x50 mm	302x605x50 mm	602x605x50 mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Frame A	L302 mm X 2 pcs	L302mm X 2 pcs	L602 mm X 2 pcs	L622mm X 2 pcs	L1202mm X 2 pcs	L1202 mm X 2 pcs
Frame B	L305 mm X 2 pcs	L305 mm X 2 pcs	L605mm X 2 pcs	L625 mm X 2 pcs	L305mm X 2 pcs	L605mm X 2 pcs
	X 8 pcs
	X 4 pcs			X 6 pcs

Ceiling Mount Kit:

The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the clips to the ceiling / wall, and the corresponding clips to the LED panel. Then couple the clips . At last complete the installation by placing the LED driver at the back of the LED panel.

Items included in the Ceiling Mount Kits:

Items	PL-SMC4				PL-SMC6
	3030	3060	6060	6262	3012	6012
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
