1. Product Introduction of 300x300 Recessed LED Panel Light.
• LED ceiling lights anodized aluminum frame is simple and elegant with ever lasting color.
• LED flat panel uses High quality transparent acrylic board ensures soft and uniform light output, high lumen efficiency.
•Voltage is from AC85-265V input. Color temperatures available in warm white 3000K, Natural white 4000K and cool white 6000K.
• LED light panel widely used in Hotels, supermarket, department store, kitchen etc.
• Excellent thermal management effectively guarantees stability work of LED light source.
• With CE TUV certified No Flickering led power supply ,3 or 5 years warranty.
2. Product Specification:
Model No |
PL-3030-12W |
PL-3030-18W |
PL-3030-20W |
Power Consumption |
12W |
18W |
20W |
Luminous Flux (Lm) |
960~1080lm |
1440~1620lm |
1600~1800lm |
LED Qty (pcs) |
50pcs |
96pcs |
100pcs |
LED Type |
SMD 2835 |
||
Color Temperature (K) |
2700 - 6500K |
||
Color |
Warm/Natural/Cool White |
||
Dimension |
312*312*12mm Cutting Hole:295*295mm |
||
Beam Angle (degree) |
>120° |
||
Light Efficiency (lm/w) |
>80lm/w |
||
CRI |
>80 | ||
Power Factor |
>0.95 |
||
Input Voltage |
AC 85V - 265V |
||
Frequency Range (Hz) |
50 - 60Hz |
||
Working Environment |
Indoor |
||
Material of Body |
Aluminum alloy frame and PS Diffuser |
||
IP Rating |
IP20 |
||
Operating Temperature |
-20°~65° |
||
Life span |
50,000hours |
||
Warranty |
3 Years |

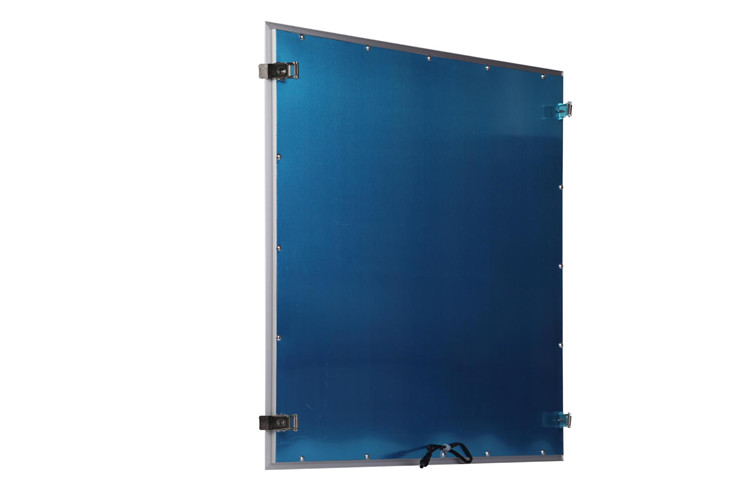

3. LED Panel Light Pictures:
4. LED Panel Light Application:
LED panel light is widely used for Factories, Hospital Lighting, Warehouse, Supermarket Lighting, Schools, offices, Residential Area Lighting, Hotels, Conference, Meeting rooms Lighting etc.

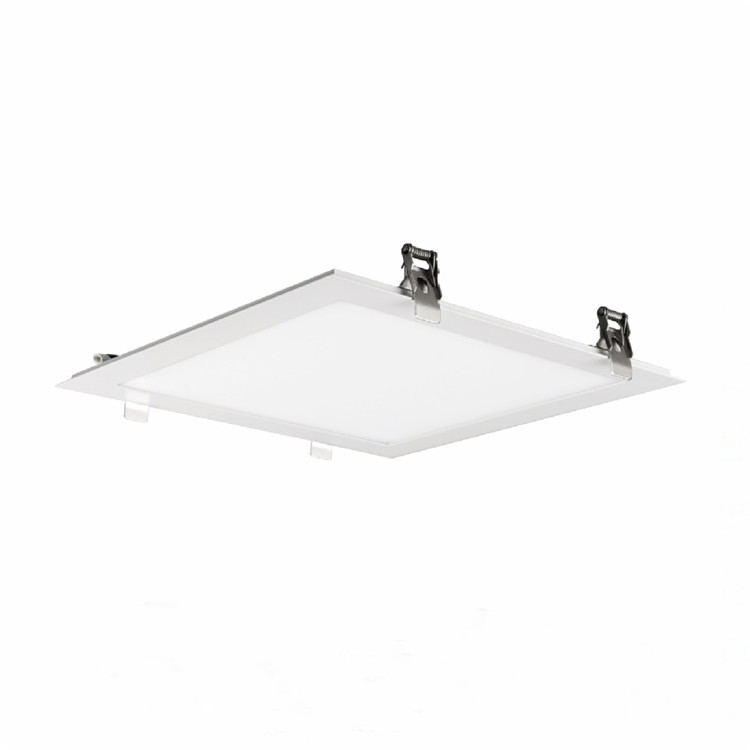

Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size.

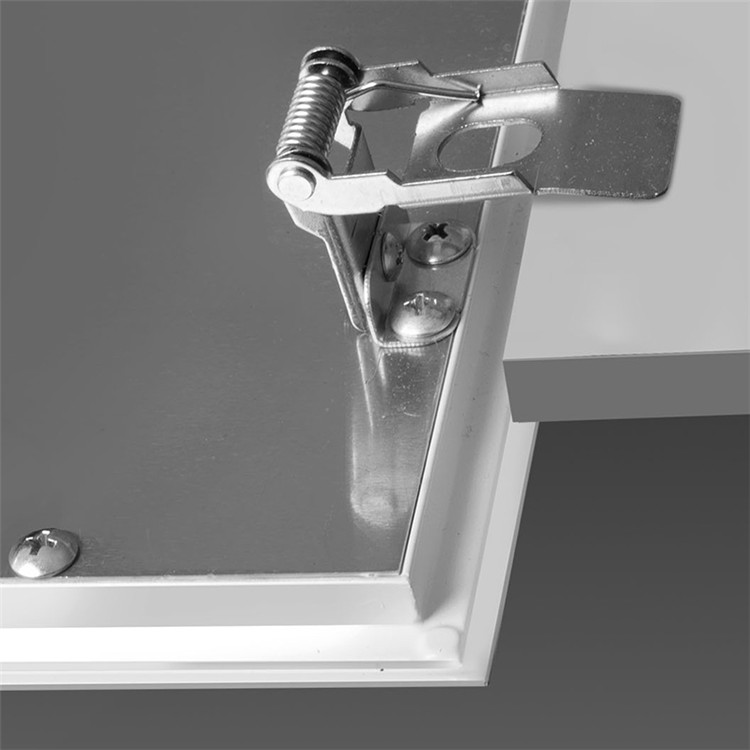

Spring Clips:
The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.
First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.
Items included:
Items |
PL-RSC4 |
PL-RSC6 |
||||
3030 |
3060 |
6060 |
6262 |
3012 |
6012 |
|
X 4 |
X 6 |
|||||
X 4 |
X 6 |

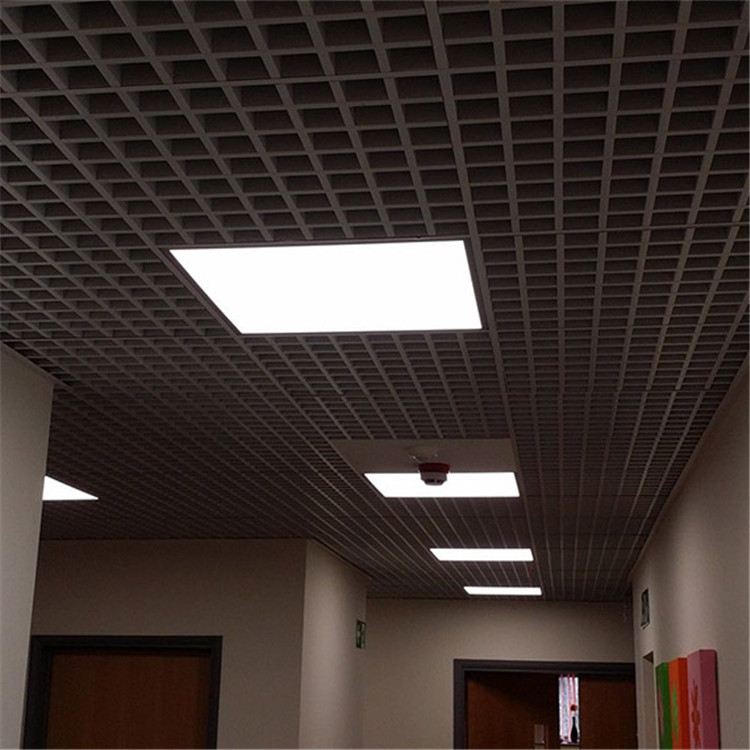

Office Lighting (Germany)
Company Lighting (Germany)
Shoes Store Lighting (USA)
Conference Room Lighting (USA)
