30×60 Square RGB IP65 Integrated LED Ceiling Panel Light Fixtures 36W 40W

The IP65 integrated LED panel light is designed for applications in dusty or wet / damp environments where before this was just not possible with normal LED panels. This Panel Series is also designed to the good energy saving panel with 50,000 hours long life, and 90% uniformity across the emitting surface. It enables customers to recover initial investment quickly and greatly reduce the maintenance cost


  • Item: 30x60 IP65 Integrated LED Panel Light
  • Power: 18W /20W /36W /40W
  • Input Voltage: AC85~265V
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1. Product Features of 300x600 IP65 Integrated Waterproof LED Panel Light.

    •IP65 waterproof housing for damp and wet locations.

    •High-grade materials assembled in a dust-free environment result in minimal degradation over time.

    •Elegant low profile (12mm ultra-thin frame) for new lighting design concepts.

    •SDCM < 5 delivering consistent light color quality.

    •Full compatibility with intelligent lighting control systems for upgraded energy-efficiency and savings.

    •No mercury or other hazardous substances; No RF interference.

    •We provide three years warranty for led panel light and led driver.

    2. Product Specification:

    Model No

    PL-3060-18W

    PL-3060-20W

    PL-3060-36W

    PL-3060-40W

    Power Consumption

    18 W

    20 W

    36 W

    40W

    Luminous Flux (Lm)

    1440~1620lm

    1600~1800lm

    2880~3240lm

    3200~3600lm

    LED Qty(pcs)

      96pcs

    100pcs

    192pcs

    204pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2800 - 6500K

    Color

    Warm/Natural/Cool White

    Light Efficiency (lm/w)

    >80lm/w

    Dimension

    298*598*12mm

    Beam Angle (degree)

    >120°

    CRI

     >80

    Power Factor

    >0.95

    Input Voltage

    AC85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS Diffuser

    Frame Color RAL

    Pure white/RAL9016; Silver

    IP Rating

    IP65

    IK Grade

    IK06

    Operating Temperature

    -20°~65°

    Dimmable Solution

      Dali/0~10V/PWM/Triac Optional

    Life span

    50,000hours

    Warranty

    3 Years

    3. LED Panel Light Pictures:

    1. IP65 led panel

    2. IP65 led panel lamp

    3. ip65 wateproof led panel

    4. ip65 rating led panel

    5. IP65 Connector

    7. ip65 wateproof led panel test


  • Previous:
  • Next:

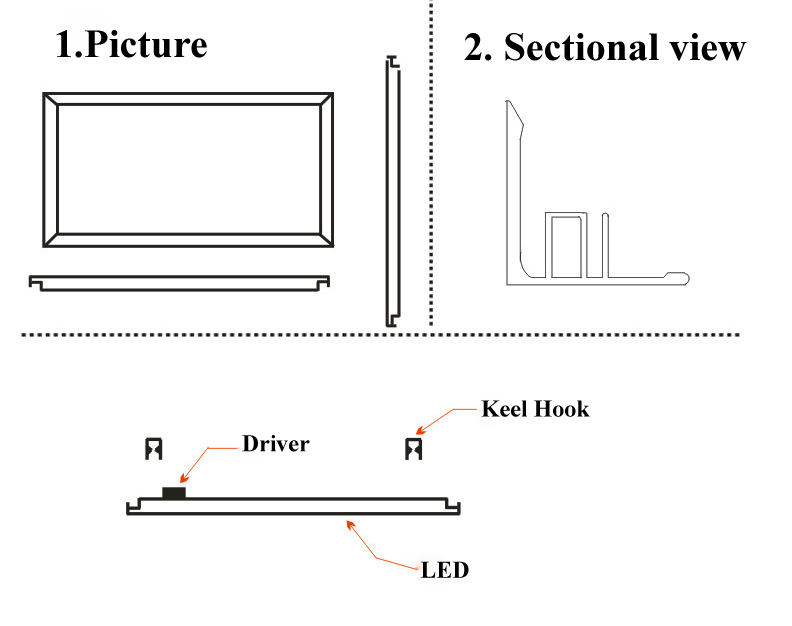

  • 6. installation guide

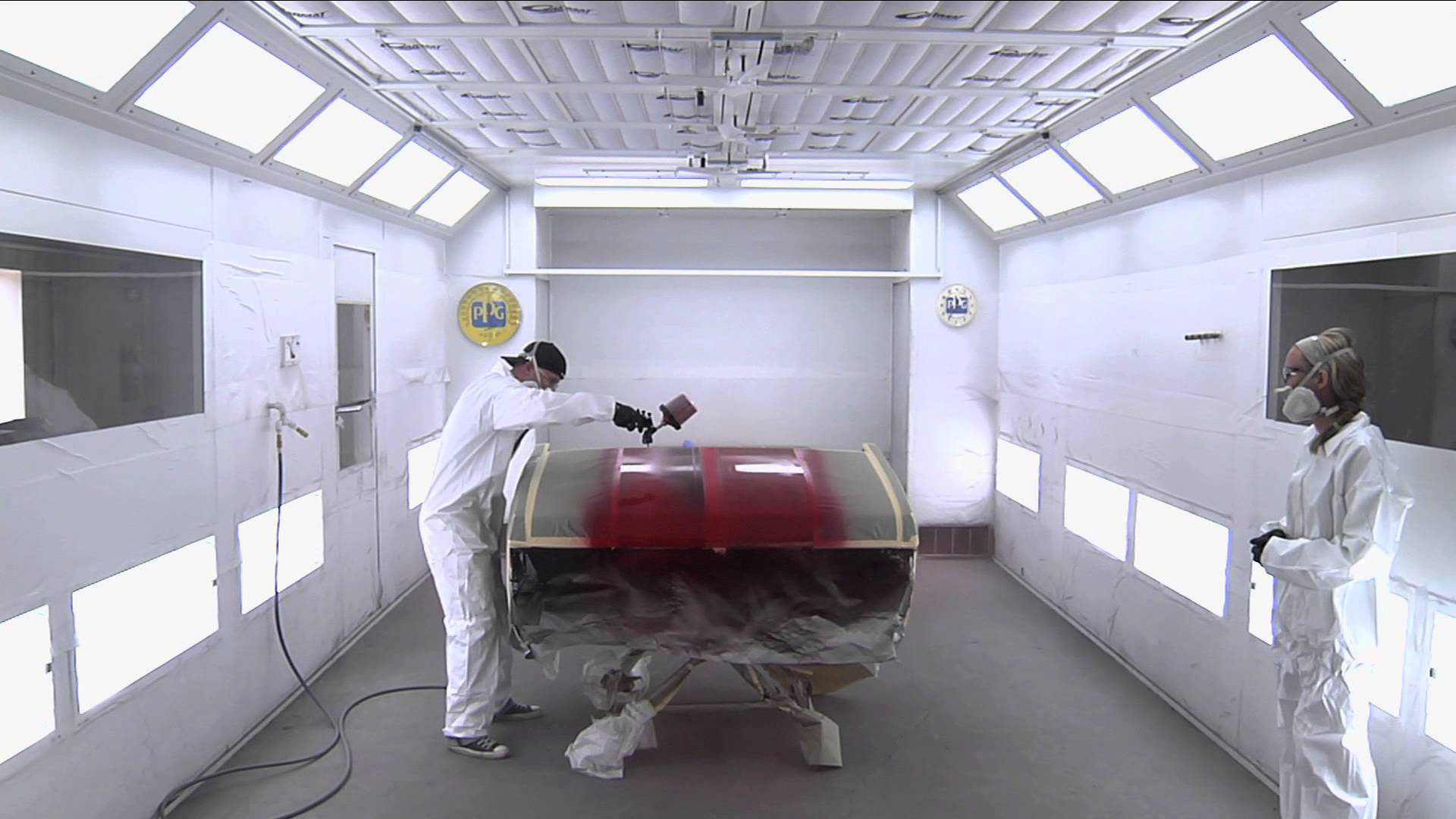

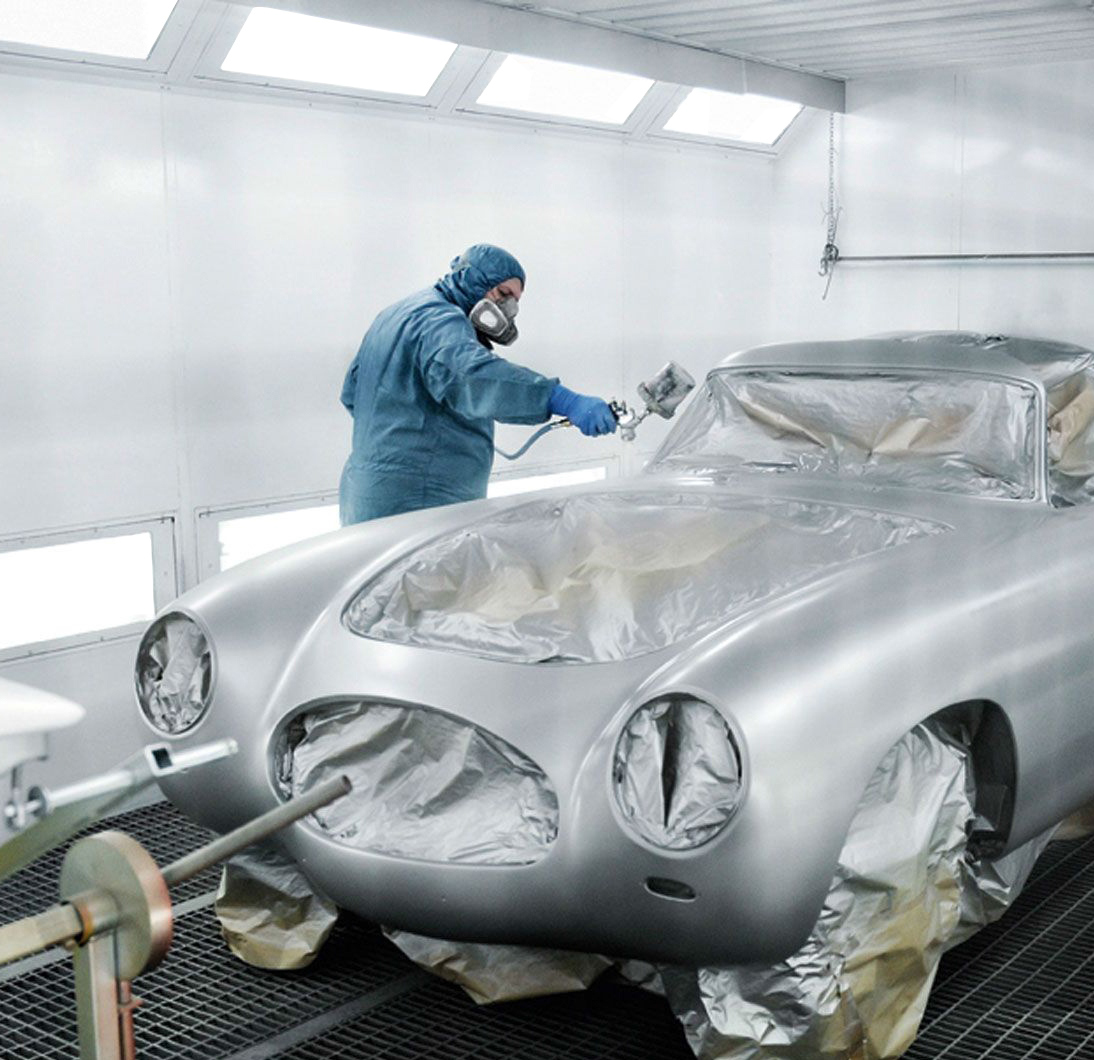

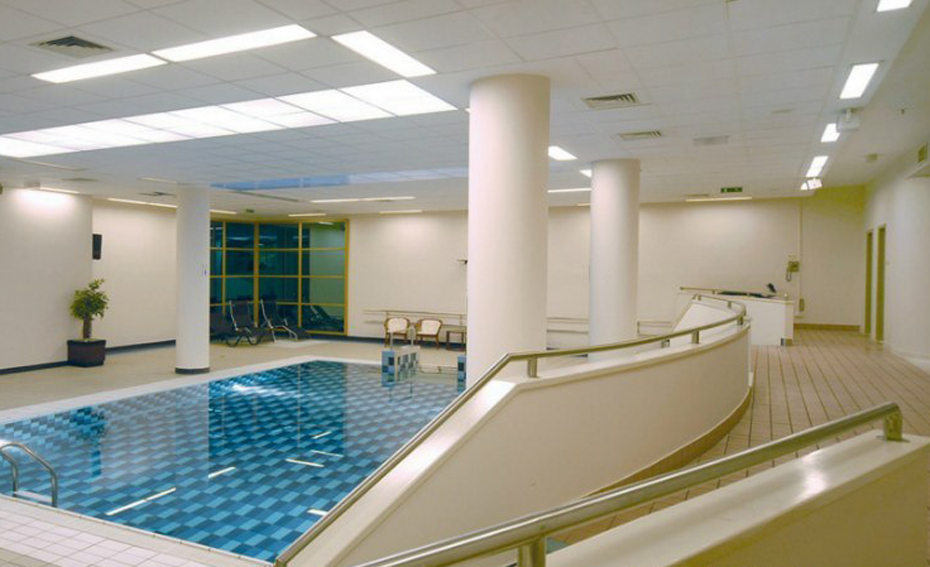

    7. ip65 led ceiling panel light 9. ip65 waterproof led panel light 8. ip65 led flat panel light
