36W 40W 48W 1500mm x 300mm Recessed LED Slim Flat Panel Light 300×1500

Lightman 300x1500mm Recessed led panel light adopts PS diffuser plat ensure the whole lamp luminous uniformity, high light transmittance, soft light, not dazzling. Using Epistar chip SMD 2835 ensure led panel light high brightness and lifespan up to 50,000 hours, and it is side glowing luminance technology.


  • Item: 30x150 LED Panel Light
  • Power: 36W /40W /48W
  • Input Voltage: AC85~265V, 50/60HZ
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product video

    1. Product Features of 30x150 Embedded LED Panel Light.

    • High quality aluminum shell adopted to settle for LED heat releasing and to ensure LED life time.

    • Energy efficient, 95% energy saving compared with traditional CFL grille light.

    • Dimmable: DALI / 0-10V / TRIAC dim control solutions available.

    • High light efficiency, low power consumption, effectively saving energy cost.

    • No Mercury, no UV or IR radiation, EMI free, complete green and ford focus 3 environmental.

    • Long life span, more than 50,000 hours, >3 years using, greatly reduce the cost of light source replacement and maintenance.

    • Good adaptability, easy installation, can completely replace traditional grille light.

    • LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.

    2. Product Specification:

    Model No

    PL-30150-36W

    PL-30150-40W

    PL-30150-48W

    Power Consumption

    36W

    40W

    48W

    Luminous Flux (Lm)

    2880~3240lm

    3200~3600lm

     3840~4320lm

    LED Type

    SMD 2835

    Color Temperature (K)

    2700 - 6500K

    Color

    Warm/Natural/Cool White

    Dimension

    300*1500*10mm

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

      >80lm/w

    CRI

     >80

    Power Factor

     >0.95

    Input Voltage

    AC 85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS diffuser

    IP Rating

    IP20

    Operating Temperature

    -20°~65°

    Dimmable

    Optional

    Life span

    50,000hours

    Warranty

    3 Years or 5 Years

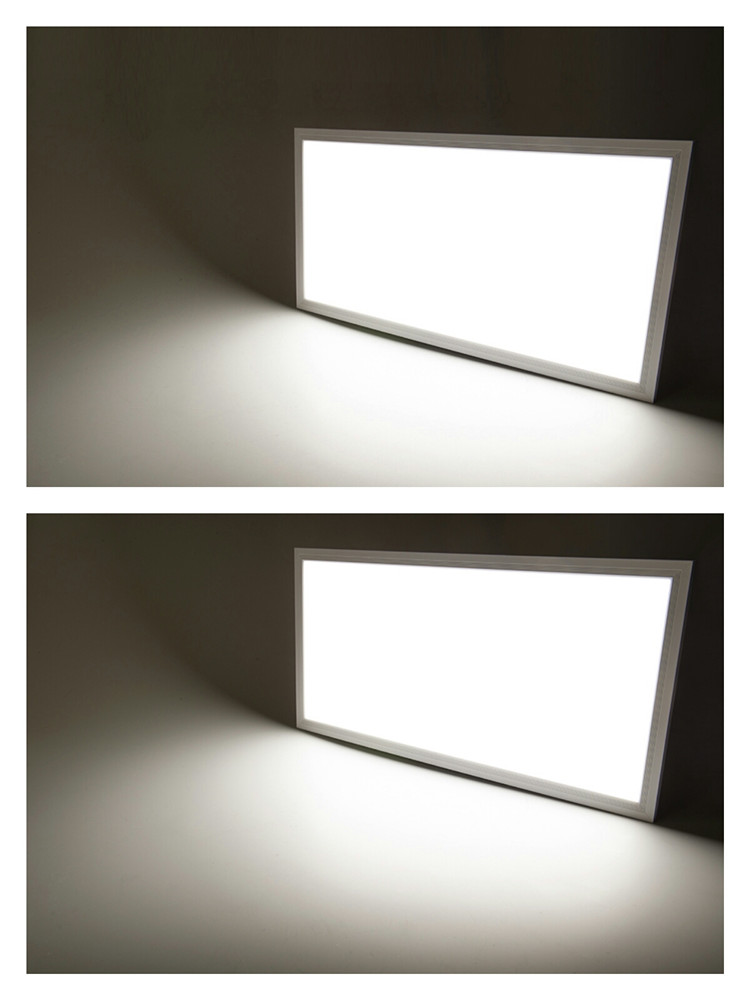

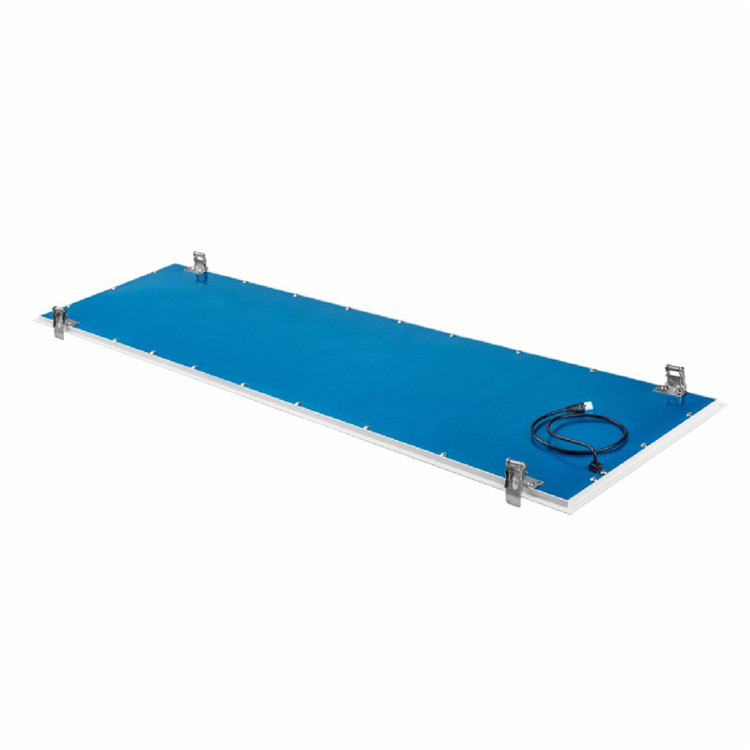

    3. LED Panel Light Pictures:

    1. recessed led panel 30x150 2. 30x150 led panel 3. led panel light housing 4. led 600x600 ceiling panel light

    6. led 60x60-Product Detail

    7. led 595x595-Product Detail

    4. LED Panel Light Application:

    Our led panel light is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

    7. led light panel

    6. 120x60 LED Panel Light were installed in Hospital


  • Previous:
  • Next:

  • Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size.  9. Spring Clip Installation

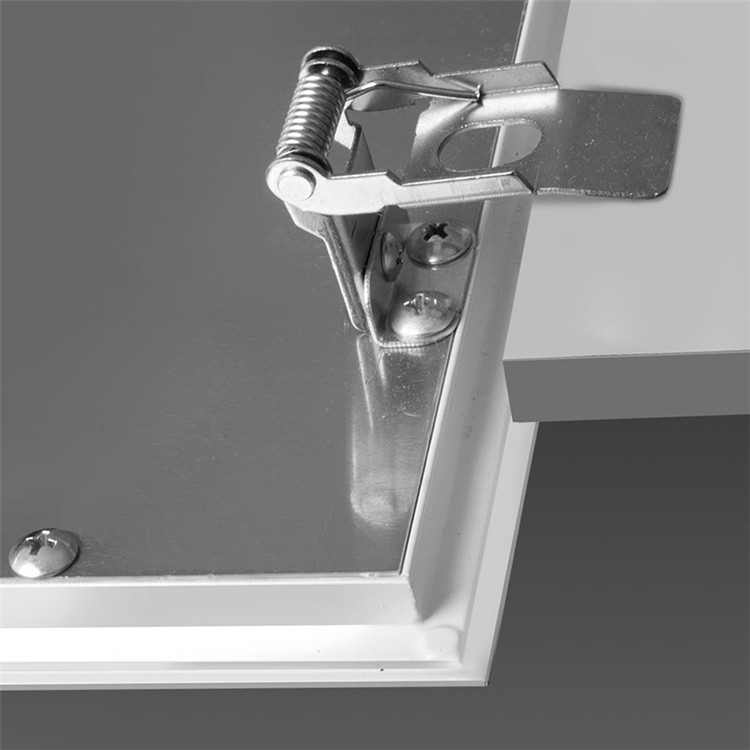

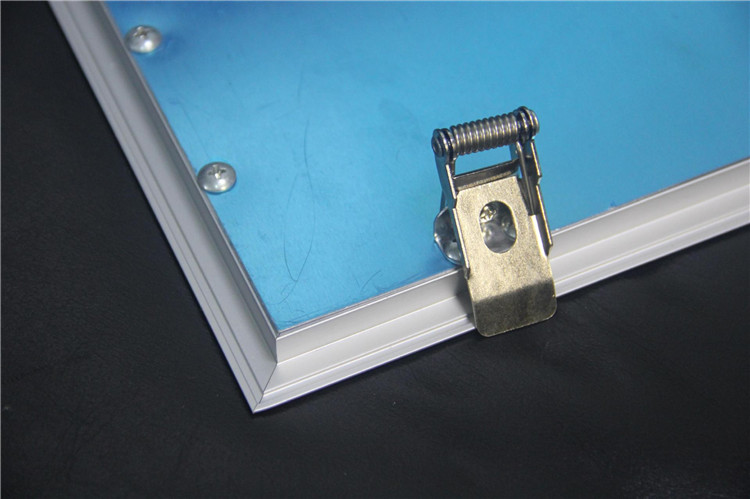

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    01

    X 4

    X 6

    02

    X 4

    X 6




    13. led panel light housing

    Office Lighting (UK)

    11. led panel 600x600

    Customer Garage Lighting (USA)

    12. ceiling panel light

    otel Lighting (China)

    13. led panel lights 60 60

    Conference Room Lighting (Germany)
