36W 40W 60W 300×1200 Recessed LED Ceiling Light Panel 30×120

LED Recessed flat panel light 60x60cm is designed to recessed frame with spring clips. It can be used in gird ceiling of corridors, offices in hospitals etc. While it is also able to be installed in ceiling without grid. Then it needs to cut hole correspondingly for this installation.


  • Item: 30x120 LED Panel Light
  • Power: 36W /40W /48W /54W /60W /72W /80W
  • Input Voltage: AC85~265V, 50/60HZ
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product video

    1. Product Features of 300x1200 Embedded LED Panel Light.

    • Aluminum frame seamless welding connection, prevent light-leaking.

    • The light distributes evenly, high brightness, anti-glare.

    • Unique optical design: even light distribution, without dizzy light and no light pollution and no frequent.

    • Instant on, no warm up time required.

    • Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.

    • Green environmental protection, lead-free material, conforming to ROHS.

    • High quality driver and LM80 test LED, to make the 3 years warranty.

    2. Product Specification:

    Model No

    PL-30120-36W

    PL30120-40W

    PL-30120-48W

    PL-30120-54W

    Power Consumption

    36W

    40W

    48W

    54W

    Luminous Flux (Lm)

    2880~3240lm

    3200~3600lm

    3840~4320lm

    4320~4860lm

    LED Qty (pcs)

    192pcs

     204pcs

    252pcs

    300pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2700 – 6500K

    Color

    Warm/Natural/Cool White

    Dimension

    1212*312*12mm

    Cutting Hole:1195*295mm

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

    >80lm/w

    CRI

     >80

    Power Factor

     >0.95

    Input Voltage

    AC 85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS diffuser

    IP Rating

    IP20

    Operating Temperature

    -20°~65°

    Life span

    50,000hours

    Warranty

    3 Years

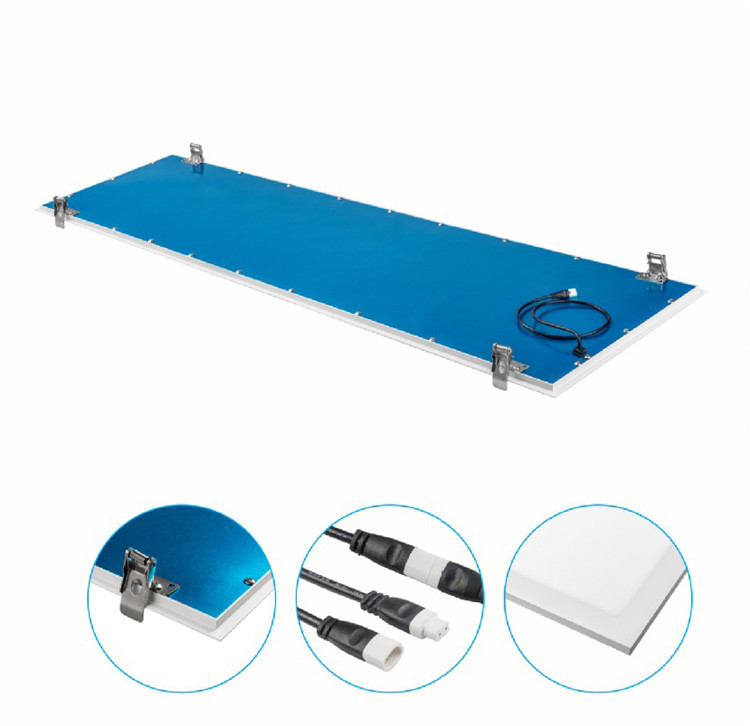

    3. LED Panel Light Pictures:

    1. 30x120 recessed led panel

    2. led panel 300x1200

    3. embedded led panel

    6. led 60x60-Product Detail

    7. led 595x595-Product Detail

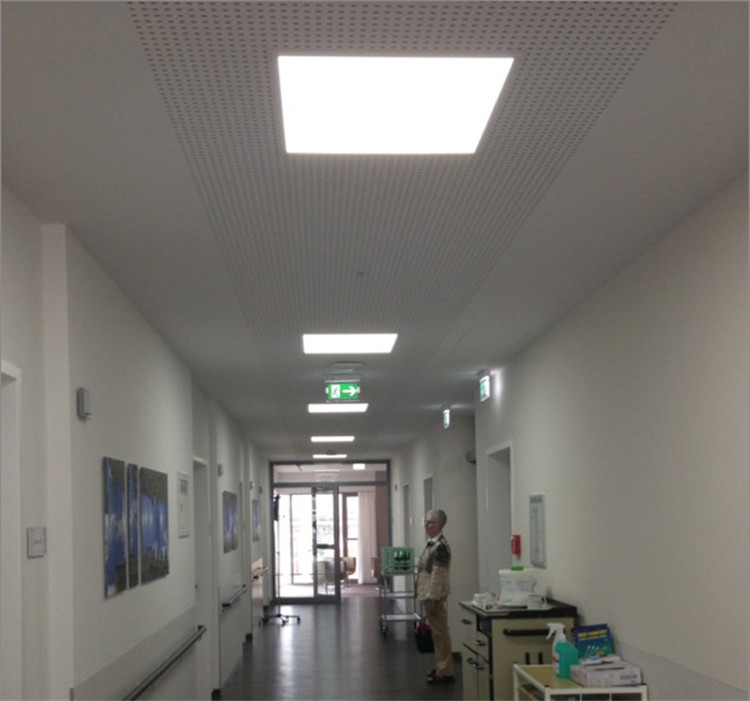

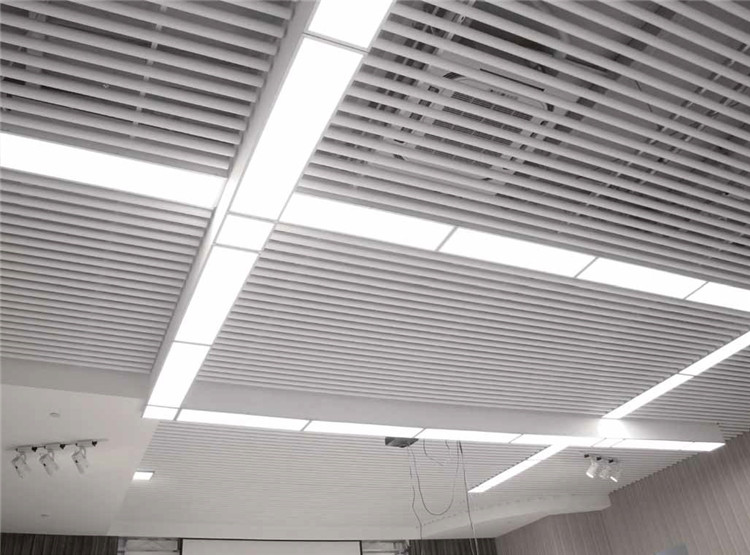

    4. LED Panel Light Application:

    Our led panel light can be widely installed at home and public areas: Living room, bedroom, kitchen, hotel, meeting room, show room, shop, telephone booth ,etc.. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

    7. 300x1200 led lamp

    8. panel led slim


  • Previous:
  • Next:

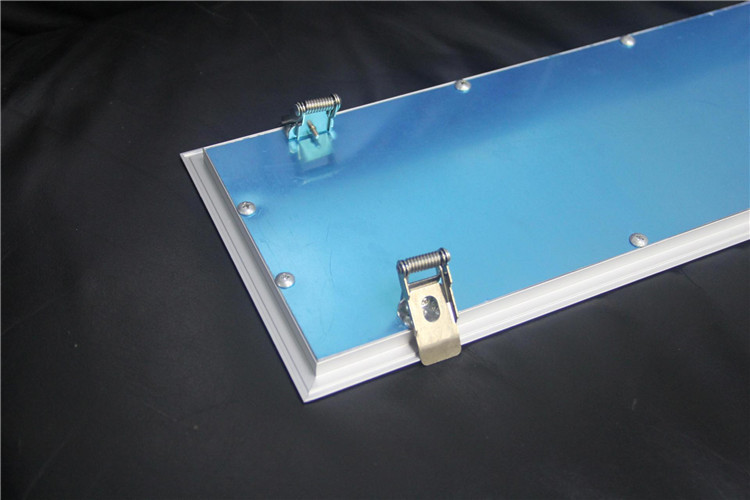

  • Installation Guide: For led panel lamps, the recessed frame with spring aclips. This one need to cut hole size according to the inner frame size.  9. Spring Clip Installation

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

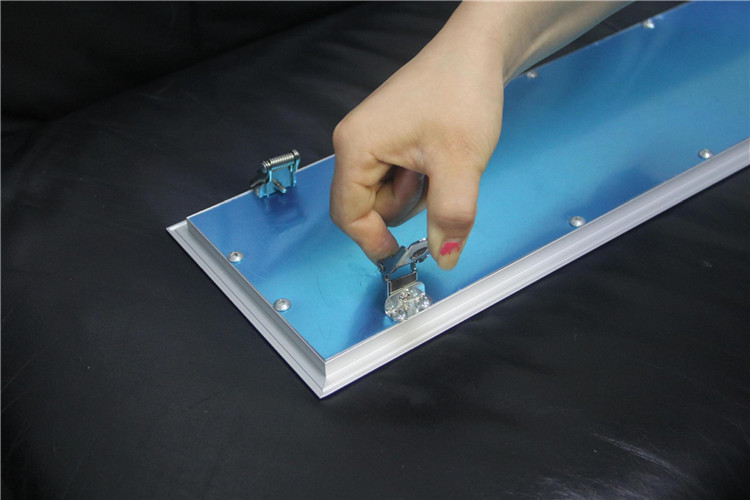

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    01

    X 4

    X 6

    02

    X 4

    X 6




    13. led panel light housing

    Office Lighting (UK)

    11. led panel 600x600

    Customer Garage Lighting (USA)

    12. ceiling panel light

    Hotel Lighting (China)

    13. led panel lights 60 60

    Conference Room Lighting (Germany)
