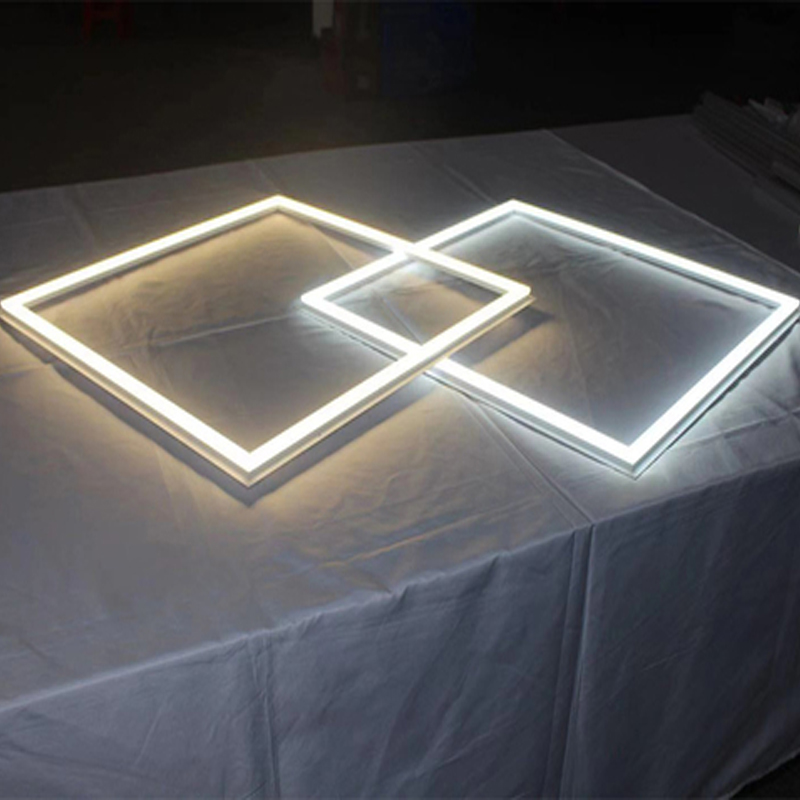

36W 40W 60W 80W 620×620 Dimmable LED Frame Flat Panel Light

LED frame panel light is a completely new kind of LED panel light. The novelty depends not only on the technology applied in it, but also on its unusual design. led frame ceiling panel is a LED frame producing a great amount of light. We recommend the LED frame panel light primarily for the interiors of offices and hotels,home and lighting communication routes etc.

Item: 620x620 LED Frame Panel Light

Power: 36W /40W /60W /80W

Input Voltage: AC85~265V / AC220V-240V, 50-60Hz

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Project Video

1. Product Features of 620×620 LED Frame Panel Light.

•Lightman adopts A6063 aviation aluminum material frame with anti-oxidation treatment for rustproof and moisture-proof.

•Lightman adopts high brightness low decay Epistar SMD 2835 led chip with better heat dissipation.

•Different sizes of led frame panel light for your options. Diversity in shape (square, rectangle).

• It is suitable to be used in offices, retail stores, hospitals, schools, hallways and lobbies, meeting rooms, restaurants, etc.

2. Product Specification:

Model No	PL-6262-36W	PL-6262-40W	PL-6262-60W	PL-6262-80W
Power Consumption	36W	40W	60 W	80W
Luminous Flux (Lm)	2880-3240lm	3200-3600lm	4800-5400lm	6400-7200lm
LED Qty(pcs)	192pcs	204pcs	300pcs	432pcs
LED Type	SMD 2835
Color Temperature (K)	2700 – 6500K
Color	Warm/Natural/Cool White
Dimension	620x620x11mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V/AC220-240V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years
