40W Selectable CCT 3500K 4000K 5000K 2×2 LED Backlit Panel Light

The backlit led panel is designed to the good energy saving panel with 100-125lm/w, 60,000 hours long life, and 90% uniformity across the emitting surface. Ideal panels enables customers to recover initial investment quickily and greatly reduce the maintenance cost.

The UL backlit led panel light is ideal for EMC energy-saving projects in places of work and educational locations, healthcare and retail environments.

Item: : 2x2ft Backlit LED Panel Light

Power: : 30W /36W /40W

Input Voltage: : AC100-277V, 50-60Hz

Color Temperature: : 3000K /4000K /5000K /6000K

Lifespan:: ≥60000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide:

Project Case :

Video:

Product Detail:

1. Product Features of 2ft x2ft Backlit LED Panel Light 30W.

•Lightman30w 36w 40w led panel light has 100lm/w～125lm/w high lumen efficacy for options.

•UL listed led panel light uses SMD2835 led chip, input voltage is AC100~277V.

•For UL led flat panel light, there are 2x2ft, 2x4ft and 1x4ft for options.

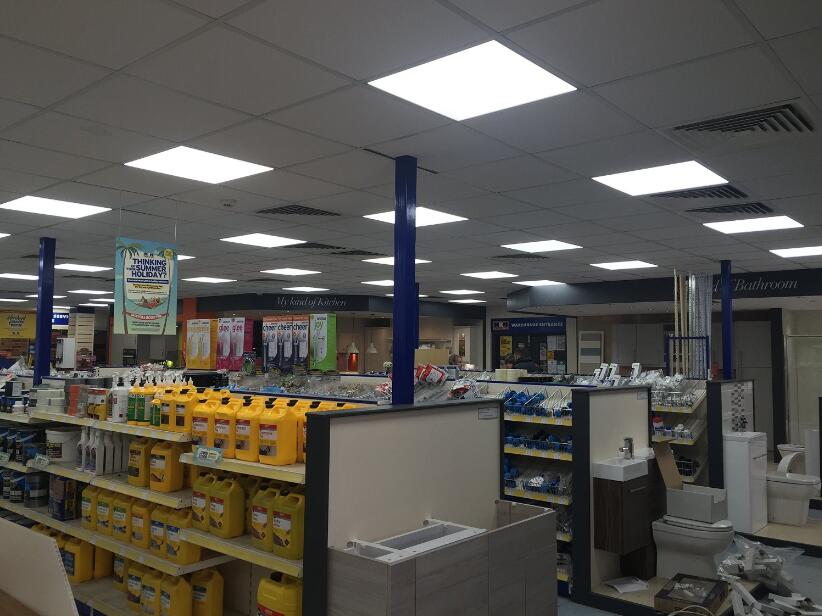

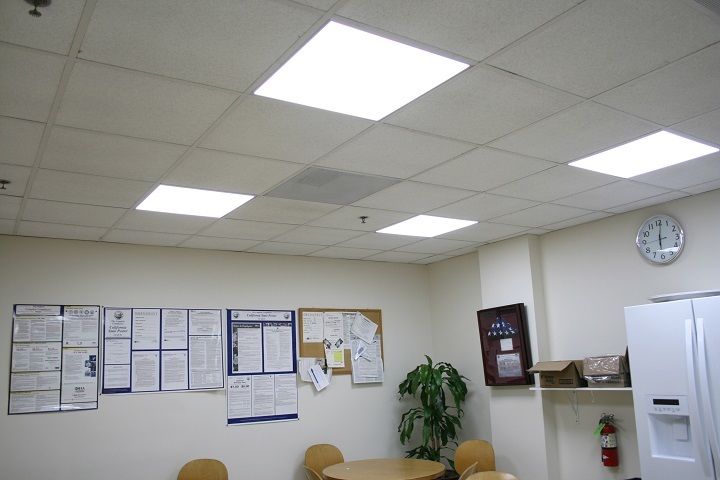

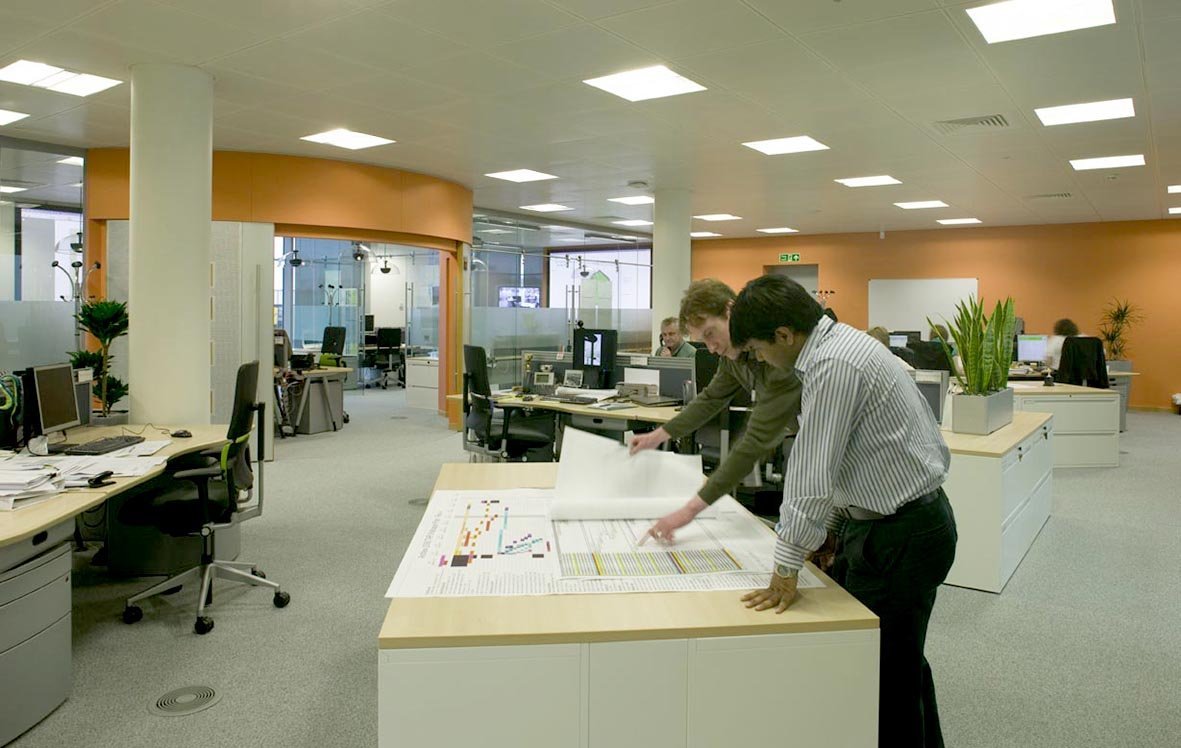

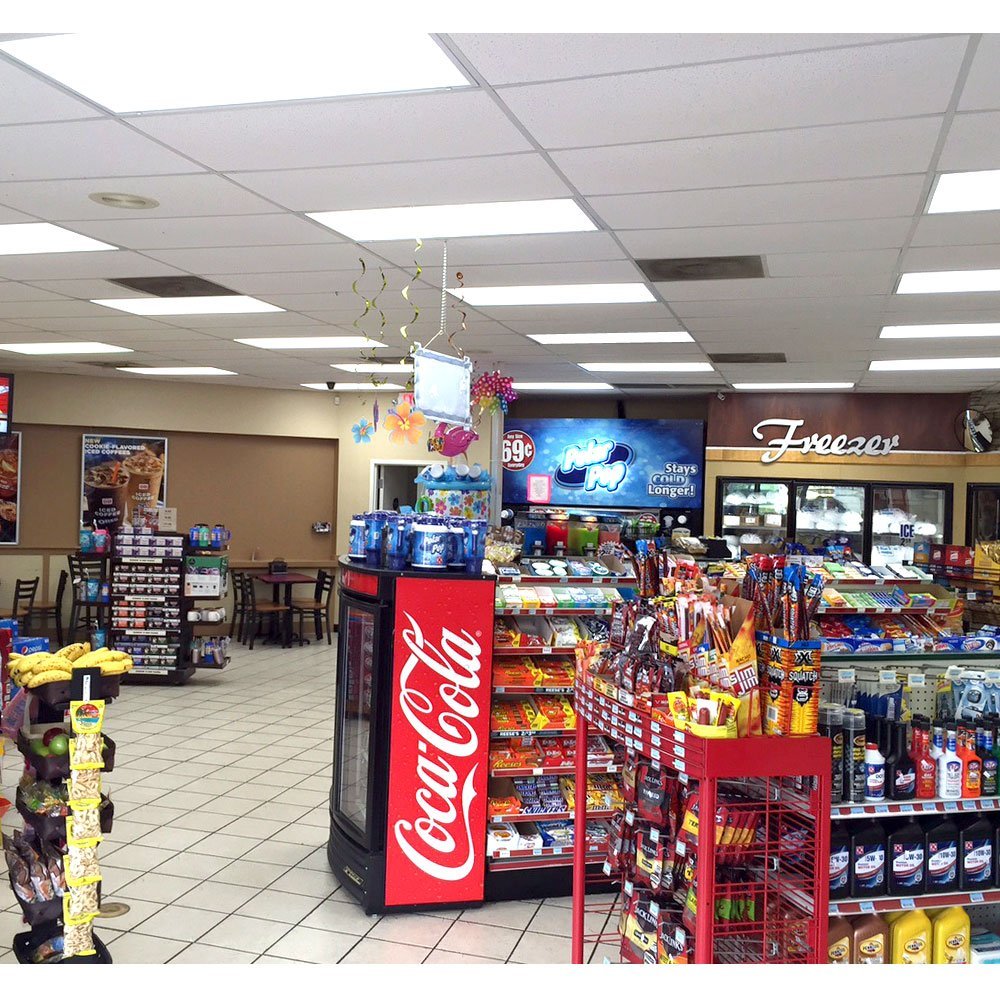

•UL square panel led light is available in 3000k, 4000k, 5000k and 6000K CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with widely used in office spaces, major retail stores, education, government, healthcare, and hospital etc.

•LED backlight panel using PS materials,more than 90% light output,even light,no glare.

•Super long life span up to 60,000hours, ten times to traditional energy-saving lamp.

•We can provide 5 years warranty for UL&DLC ETL led office panel light.

2. Product Specification:

Model No	PL-2x2-30W-100	PL-2x2-30W-125	PL-2x2-40W-100
Power Consumption	30W	30W	40W
Dimension (mm)	603x603x30mm
LED Type	SMD2835
Color Temperature(K)	3000K/4000K/5000K/6000K
Luminous Flux(Lm/w)	100-125lm/w
Input Voltage	AC 100V – 277V, 50 - 60Hz
CRI	>80
Power Factor	>0.9
Working Environment	Indoor
Material of Body	Aluminum Frame+PS Diffuser
IP Rating	IP20
Dimmable	0~10V/CCT Dial Switch
Operating Temperature	-20°~65°

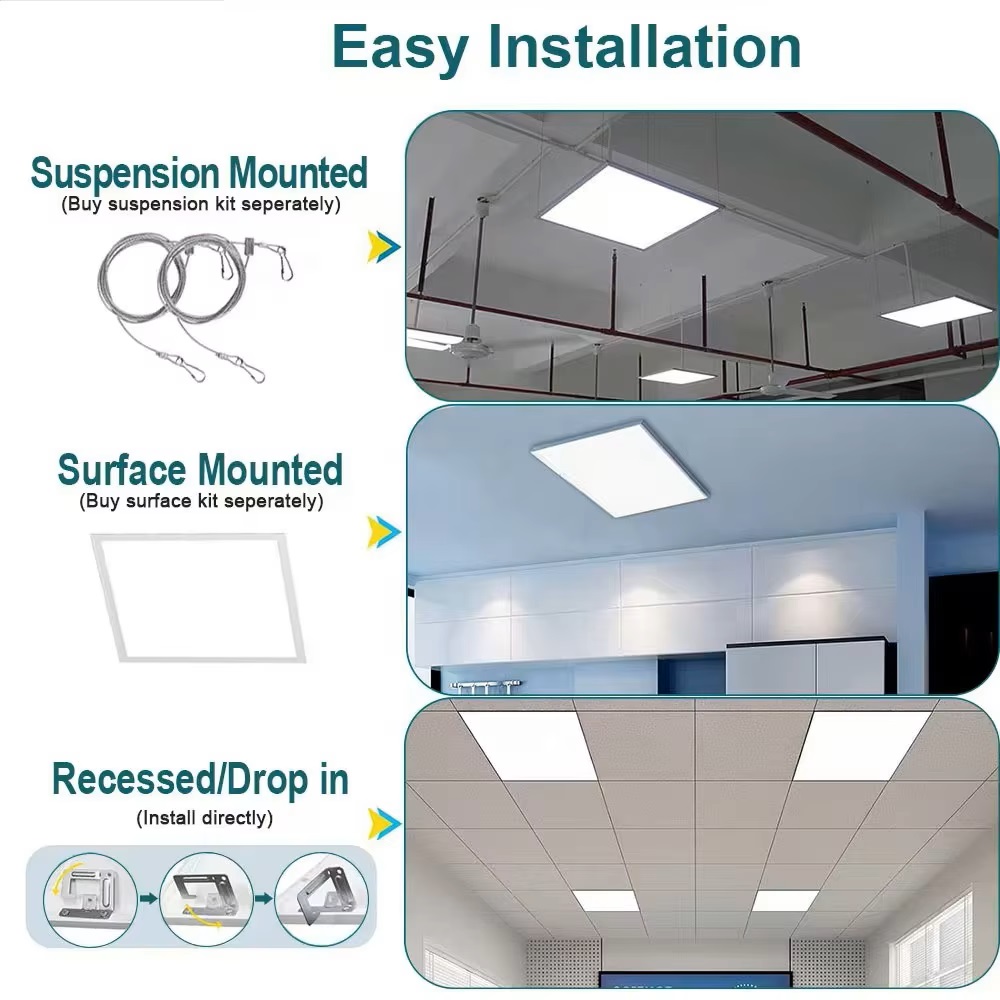

Installation Option	Recessed/Suspended/Surface Mounted
Life span	60,000hours
Warranty	5Years
