595x1195mm 1200×600 Office LED Ceiling Light Panel Lamp With Spring Clamps

Lightman led panel light adopts Epistar SMD2835 as light source, cute light-emitting surface , downy light and visually comfortable. And it uses Aluminum frame ensure heat dissipation aluminum frame antirust, prevent fading and durable. The PS diffuser can improve the uniformity of the pervious to light and scratch proof, light diffusion is more bright and soft.

Item: 60x120 LED Panel Light

Power: 48W /60W /72W /80W

Input Voltage: AC85~265V / AC220V-240V, 50-60Hz

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product video

1. Product Features of 600x1200 LED Panel Light 72W.

• Super slim design, save 70% energy, High efficiency with uniformed luminance.

• Support Kelvin and brightness dimming.

• Utilizing high performance light guide panel for excellent uniformity and efficiency

• Super bright 2835SMD LEDs provide higher light efficacy and color consistency.

• Recessed, Wall Mounted, Surface Mounted and Suspended installations available.

• Professional circuit design, each group of LEDs work separately to avoid any problem of lighting output caused by single faulty LED.

• No electrical wave interference, confirm to the standard of CE.

• No plumbum, green environment friendly, confirm to the standard of ROHS.

2. Product Specification:

Model No	Pl-60120-48W	PL-60120-60W	PL-60120-72W	PL-60120-80W
Power Consumption	48W	60W	72W	80W
Luminous Flux (Lm)	3840-4320lm	4500-5100lm	5400-6120lm	6000-6800lm
LED Type	SMD 2835/SMD4014
Color Temperature (K)	2700 - 6500K
Color	Warm/Natural/Cool White
Dimension	295x1195x10mm
Beam Angle (degree)	>120°
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V/AC220-240V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3Years or 5 Years

3. LED Panel Light Pictures:

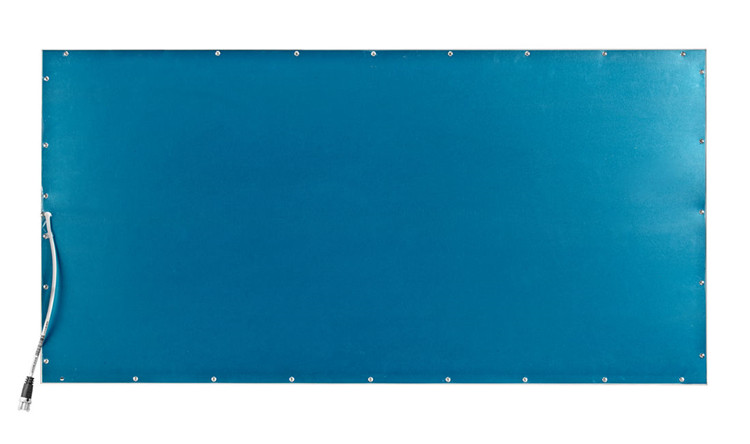

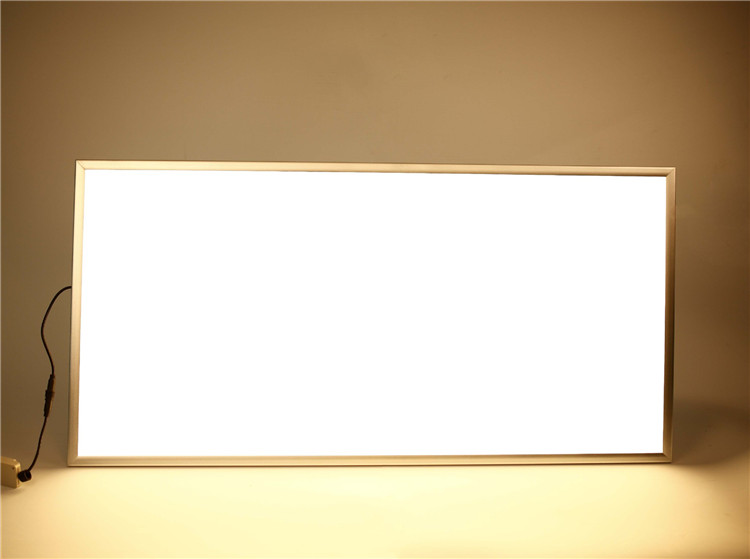

1. led panel lamp 4. led panel light 60x120 3. 1200x600mm led flat panel light 2. 600x1200 led panel

6. led 60x60-Product Detail

7. led 595x595-Product Detail

4. LED Panel Light Application:

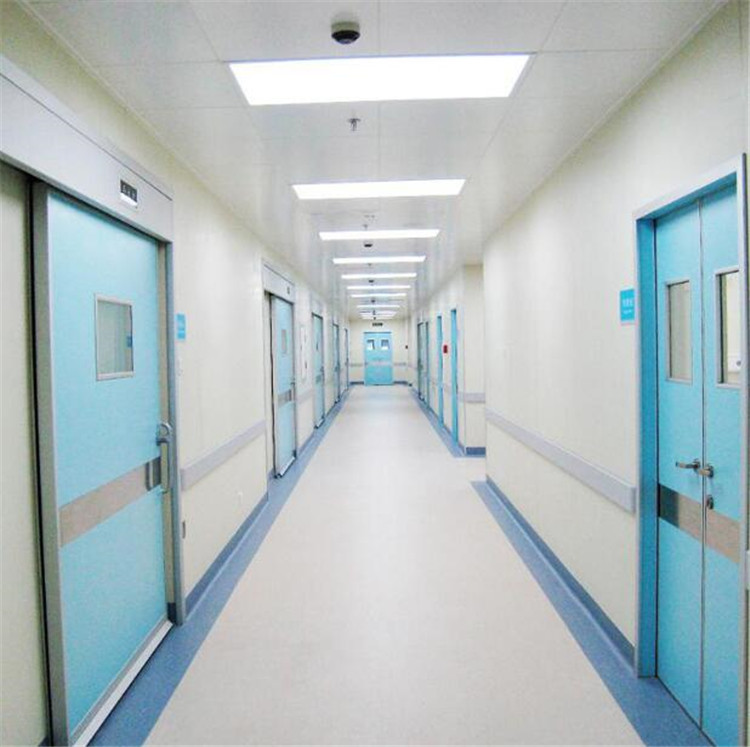

Lightman LED panel light are applied to dust-free plant, electronic factory, hospital, hotel, office, home, school, meeting room, dust-free plant of bakery and confectionery, plant of pharmaceutical fact etc.

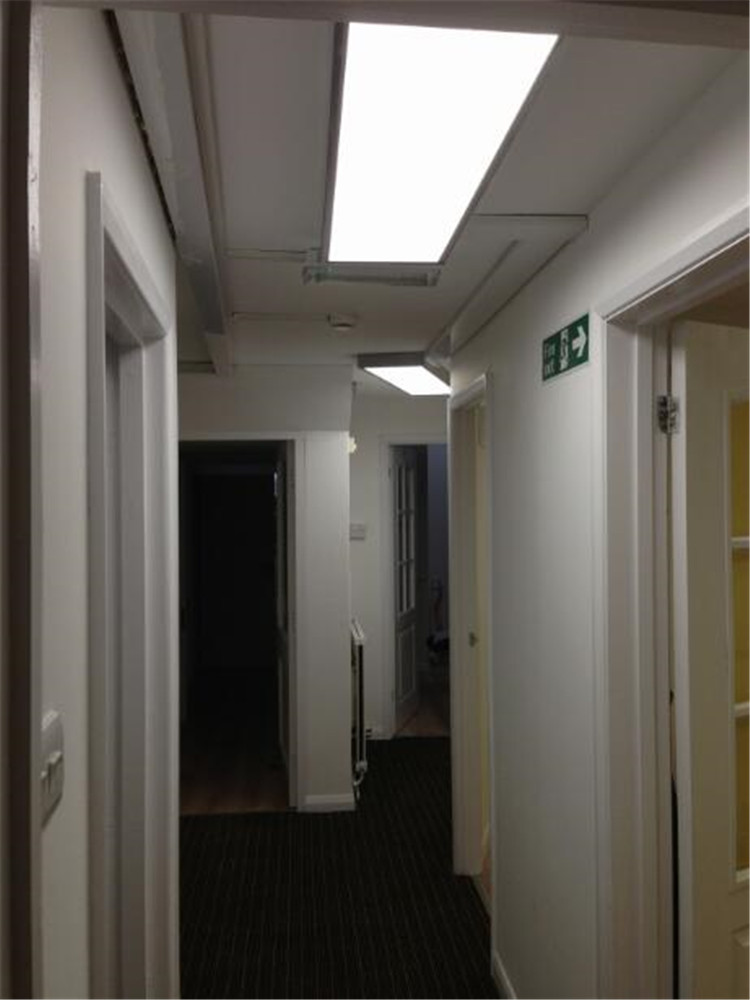

Recessed Installation Project:

Surface Mounted Installation Project:

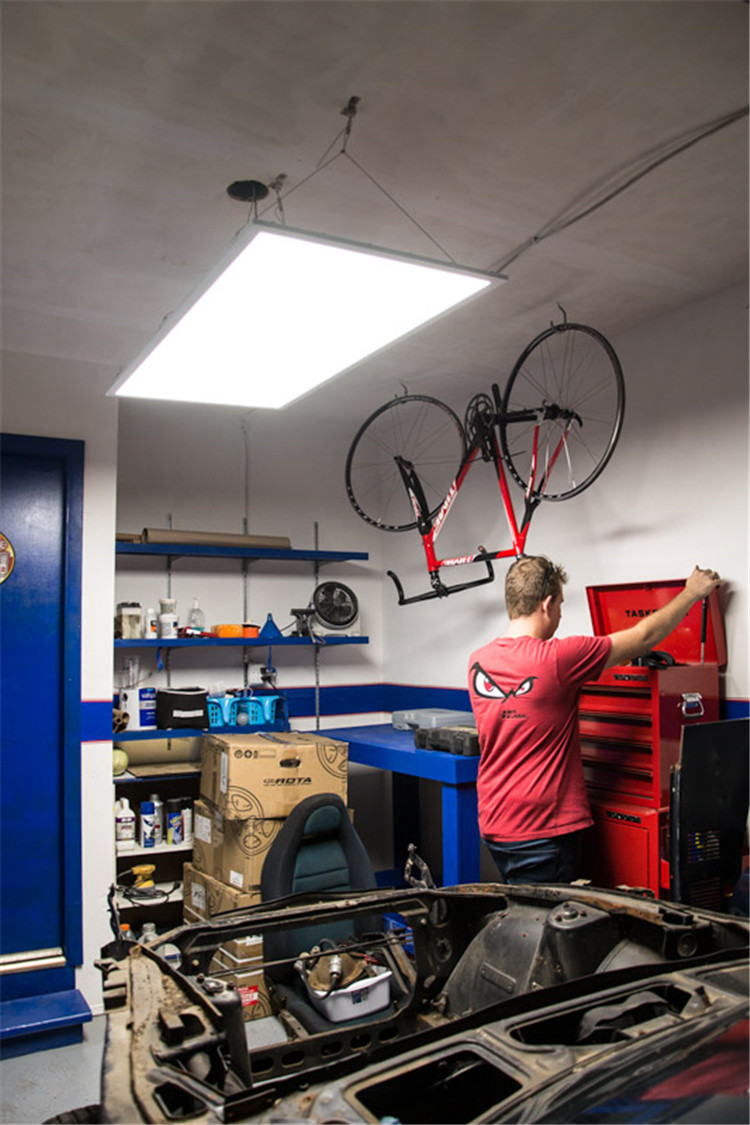

Suspended Installation Project:

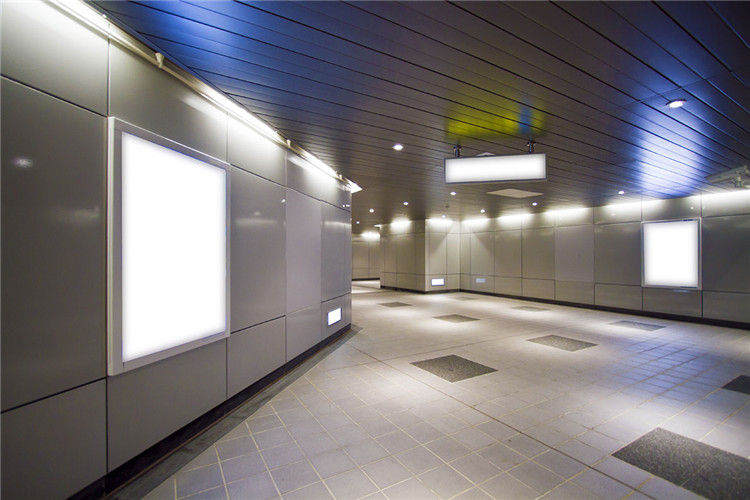

Wall Mounted Installation Project:

Previous: 3000K 4000K 6000K 60W 60×120 LED Flat Ceiling Panel Light 600×1200

Next: SMD2835 60*120 60x120cm 80W LED Flat Panel Ceiling Light For Hospital Lighting

For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements. 12. Installation Guide

Suspension Kit:

The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

Items included in the Suspended Mount Kit:

Items	PL-SCK4				PL-SCK6
	3030	3060	6060	6262	3012	6012
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 4				X 6

Surface Mount Frame Kit:

This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the three frame sides to the ceiling. The LED panel is then slid in. At last complete the installation by screwing the remaining side.

The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

Items included in the Surface Mount Frame Kit:

Items	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Dimension	302x305x50 mm	302x605x50 mm	602x605x50 mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Frame A	L302 mm X 2 pcs	L302mm X 2 pcs	L602 mm X 2 pcs	L622mm X 2 pcs	L1202mm X 2 pcs	L1202 mm X 2 pcs
Frame B	L305 mm X 2 pcs	L305 mm X 2 pcs	L605mm X 2 pcs	L625 mm X 2 pcs	L305mm X 2 pcs	L605mm X 2 pcs
	X 8 pcs
	X 4 pcs			X 6 pcs

Ceiling Mount Kit:

The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the clips to the ceiling / wall, and the corresponding clips to the LED panel. Then couple the clips . At last complete the installation by placing the LED driver at the back of the LED panel.

Items included in the Ceiling Mount Kits:

Items	PL-SMC4				PL-SMC6
	3030	3060	6060	6262	3012	6012
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
