60W 72W 80W 60×120 LED Recessed Ceiling Flat Panel Light

Lightman Recessed 60x120cm led panel light adopts Epistar 2835smd led chips, high brightness, high rendering properties and low light attenuation. It uses PS or PMMA light guide plate with high density laser dotting, the light effect is even, the light effect is better. The LED panel light is intended for illuminating indoor area, it may be installed and used only in dry, enclosed indoor rooms.


  • Item: 600x1200 LED Panel Light
  • Power: 48W /54W /60W /72W /80W
  • Input Voltage: AC85~265V, 50/60HZ
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product video

    1. Product Features of 60x120 Embedded LED Panel Light.

    • High quality aluminum shell adopted to settle for LED heat releasing and to ensure LED life time.

    • LED panel light fixtures use high quality Episatr SMD LED as light source.

    • Low power consumption, high luminous efficiency and energy saving.

    • Dimmable: DALI / 0-10V / TRIAC dim control solutions available.

    • Instant start, gentle light, no shadow, no flickering, eye-protective.

    • 12mm ultra-thin structure in design, succinct and generous.

    • No Mercury, no UV or IR radiation, EMI free, complete green and ford focus 3 environmental.

    • High power factor(>0.95), completely conform to the requirements of state power grid.

    • CE, ROHs, TUV, SAA, FCC, UL,DLC certified etc.

    2. Product Specification:

    Model No

    PL-60120-48W

    PL-60120-54W PL-60120-60W

    PL-60120-72W

    PL-60120-80W

    Power Consumption

    48 W

    54W

    60W

    72W

    80W

    Luminous Flux (Lm)

       3840~4320lm

    4320~4860lm

    4800~5400lm

    5760~6480lm

    6400~7200lm

    LED Qty (pcs)

         252pcs

    280pcs

    300pcs

    392pcs

    408pcs

    LED Type

    SMD2835

    Color Temperature (K)

    2800-6500K

    Dimension

    1212*612*12mm

    Cutting Hole: 1195*595mm

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

    >80lm/w

    CRI

     >80

    Power Factor

    >0.95

    Input Voltage

    AC 85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

        Aluminum alloy frame and PS diffuser

    IP Rating

    IP20

    Operating Temperature

                                     -20°~65°

    Life span

    50,000hours

    Warranty

    3 Years

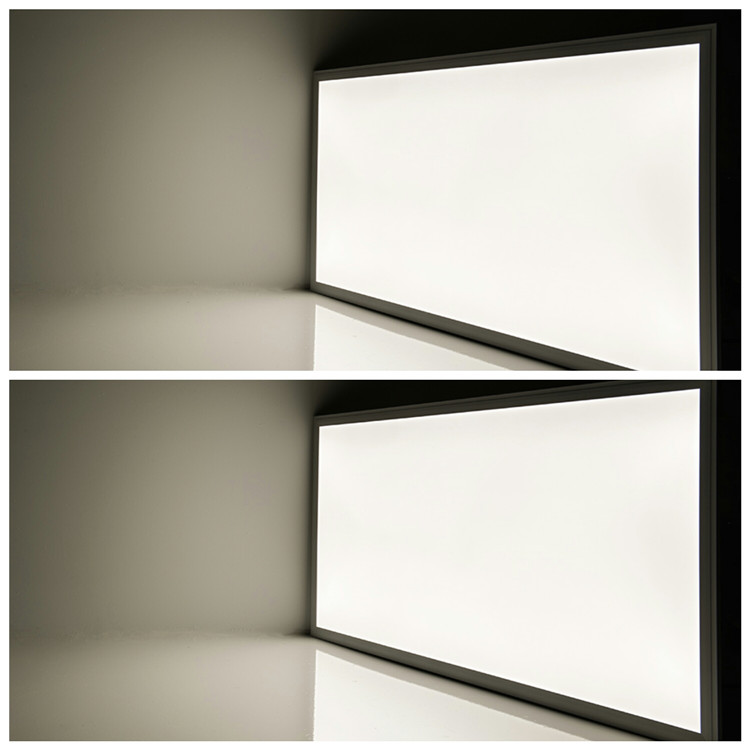

    3. LED Panel Light Pictures:

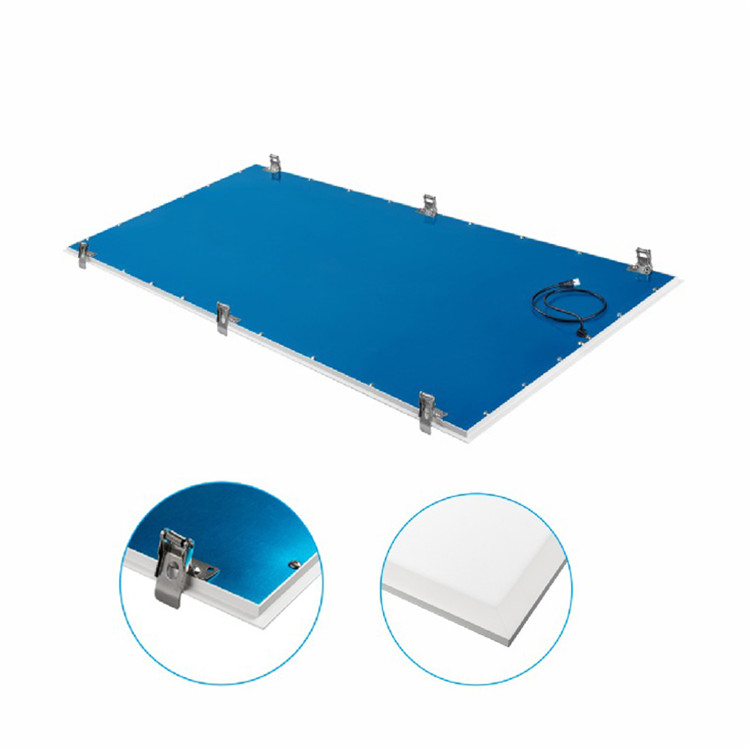

    1. 60x120 led panel 2. 1200x600 Recessed LED Panel light with clips 3. led 600x600 ceiling panel light

    6. led 60x60-Product Detail

    7. led 595x595-Product Detail

    4. LED Panel Light Application:

    Our led panel light is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

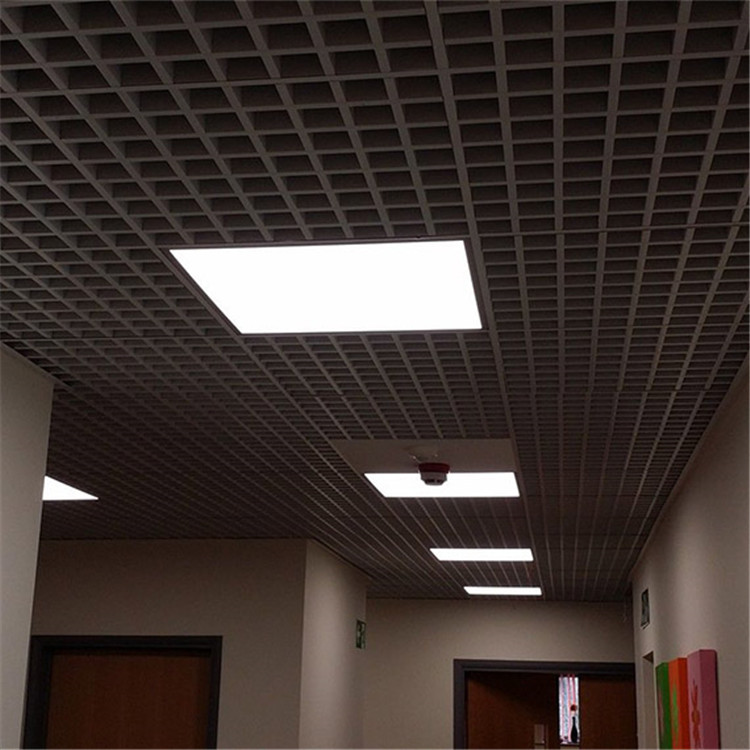

    7. led light panel

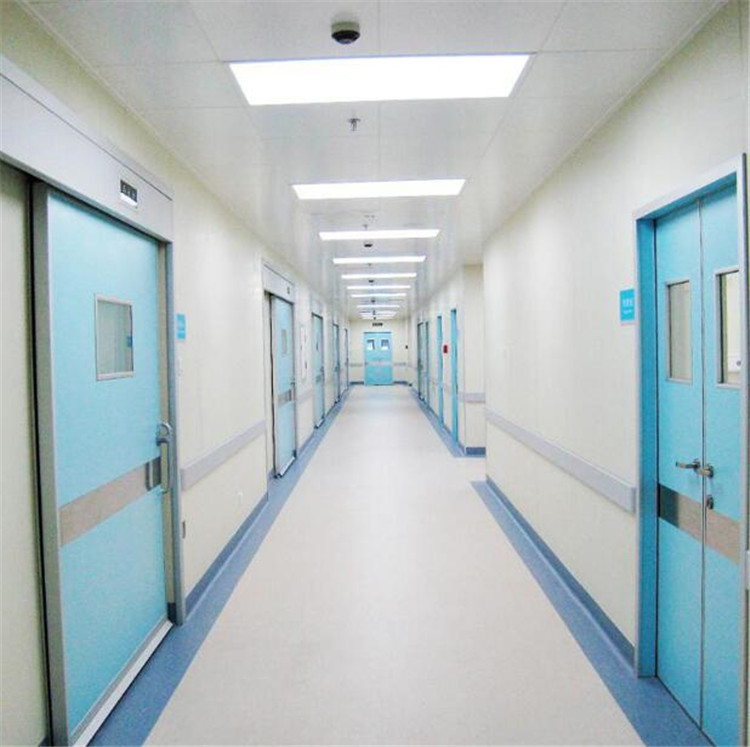

    6. 120x60 LED Panel Light were installed in Hospital


  • Previous:
  • Next:

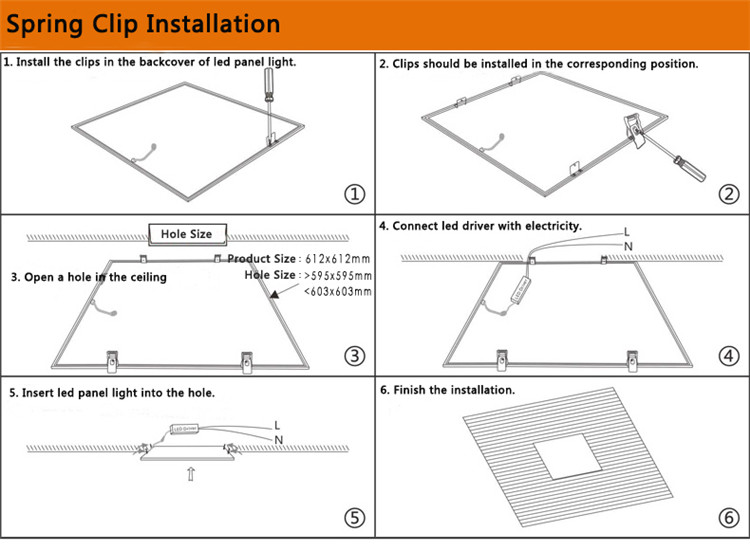

  • Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size.  9. Spring Clip Installation

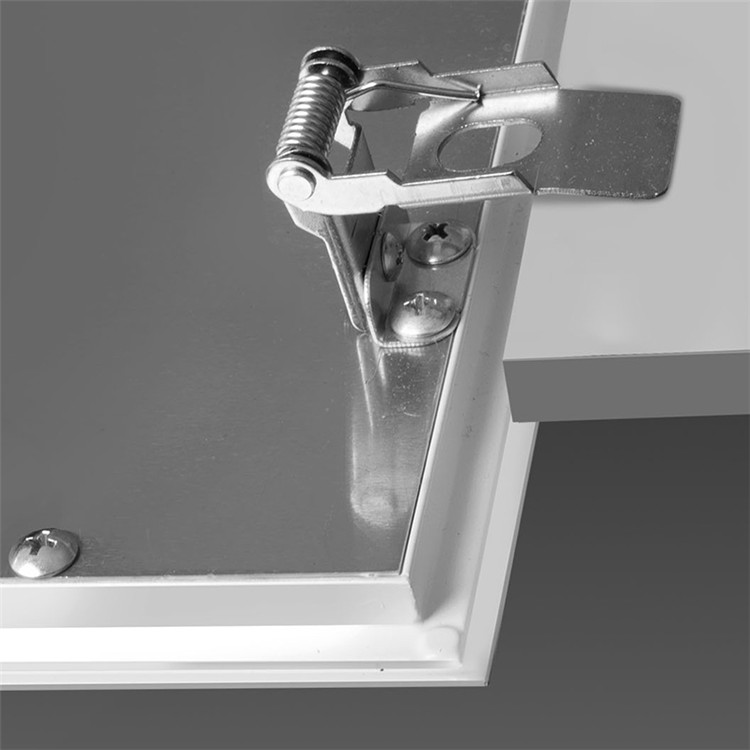

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    01

    X 4

    X 6

    02

    X 4

    X 6




    13. led panel light housing

    Office Lighting (UK)

    11. led panel 600x600

    Customer Garage Lighting (USA)

    12. ceiling panel light

    Hotel Lighting (China)

    13. led panel lights 60 60

    Conference Room Lighting (Germany)
