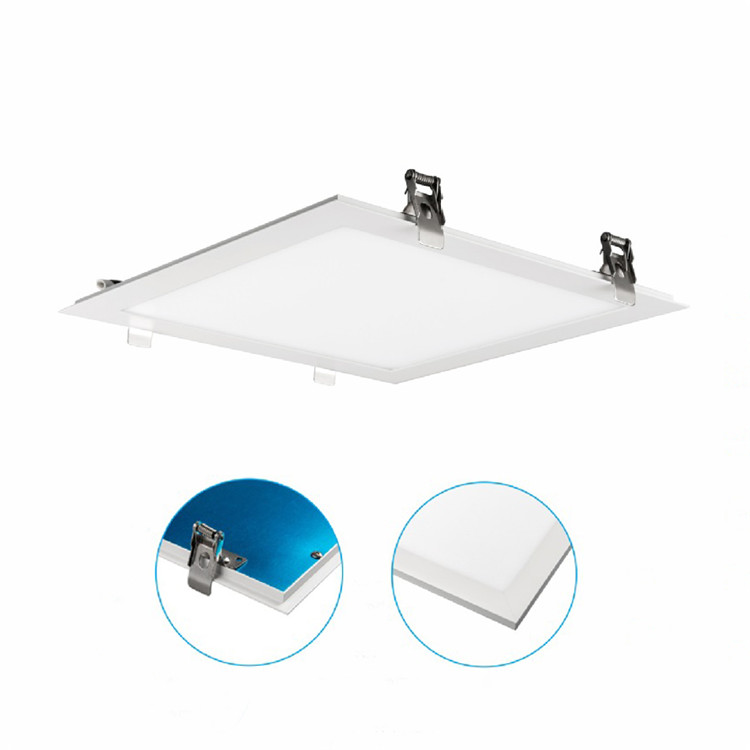

62×62 620×620 Recessed LED Ceiling Panel for Cassette Ceiling

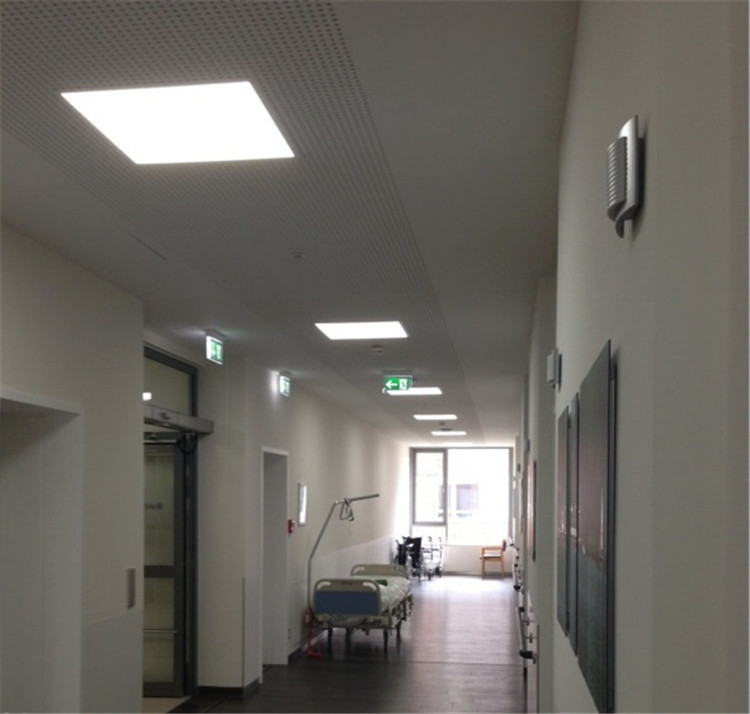

LED flat panel light 620x620mm is designed to recessed frame with spring clips. It can be used in gird ceiling of corridors, offices in hospitals etc. While it is also able to be installed in ceiling without grid. Then it needs to cut hole correspondingly for this installation. And ultra thin design, concise, light and handy volume, easy to transport and install.

Item: 620x620 LED Panel Light

Power: 36W /40W /60W /80W

Input Voltage: AC85~265V, 50/60HZ

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product video

1. Product Features of 62x62 Embedded LED Panel Light.

• Recessed led panel lamp adopts high quality aluminum and acrylic material.

• Epistar SMD2835 led chip,100-120lm/w, high brightness and lighting dimmable.

• The surface is passed through anodic oxidation treat. Its structure is compact and beautiful.

• Instant on, no warm up time required.

• High efficiency, high accuracy, and long-life constant current IC driver LED power supply, the efficiency can reach as high as 95%.

• Integrative design for heat sink and housing. The LED is closely connected to the surface. The heat From the LED is removed through the heat dissipation wing and also by air ventilation.

• No risk of mercury emission, environmental protection.

• High heat conductivity, low luminous decay, pure light color and no ghosting.

2. Product Specification:

Model No	PL-6262-36W	PL-6262-40W	PL-6262-60W	PL-6262-80W
Power Consumption	36W	40W	60W	80W
Luminous Flux (Lm)	2880～3240lm	3200～3600lm	4800～5400lm	6400～7200lm
LED Qty (pcs)	192pcs	204pcs	300pcs	408pcs
LED Type	SMD 2835
Color Temperature (K)	2700 – 6500K
Color	Warm/Natural/Cool White
Dimension	63763712mm Cutting Hole: 620*620mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Life span	50,000hours
Warranty	3 Years

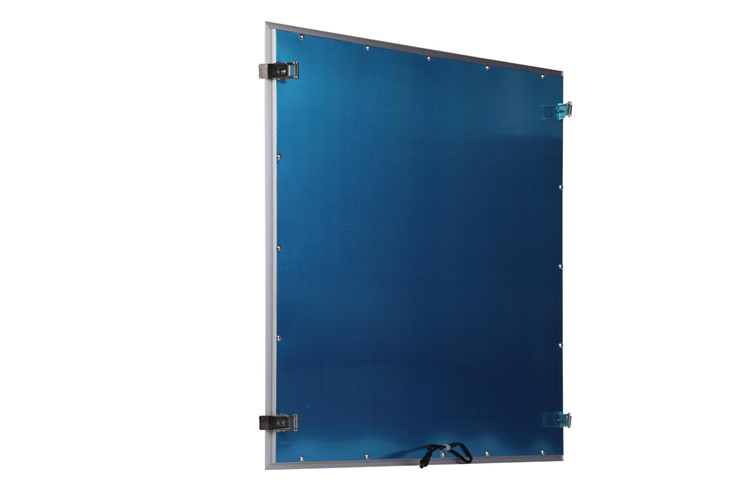

3. LED Panel Light Pictures:

1. 620x620 led panel

2. led panel 62x62

3. led 600x600 ceiling panel light

4. led ceiling panel light

6. led 60x60-Product Detail

7. led 595x595-Product Detail

4. LED Panel Light Application:

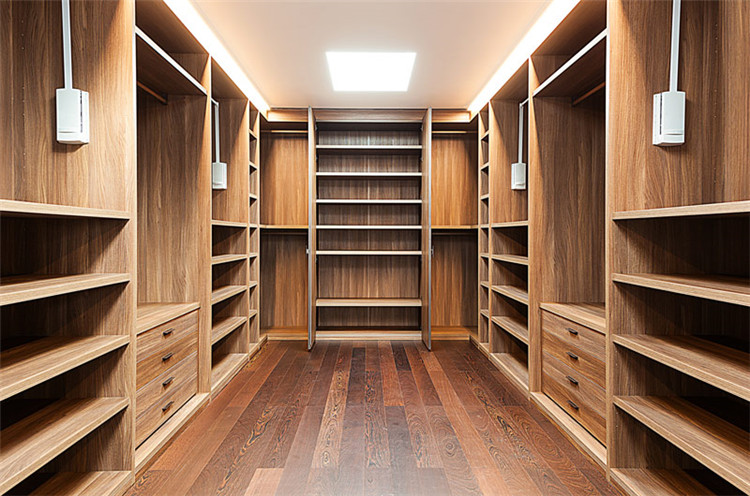

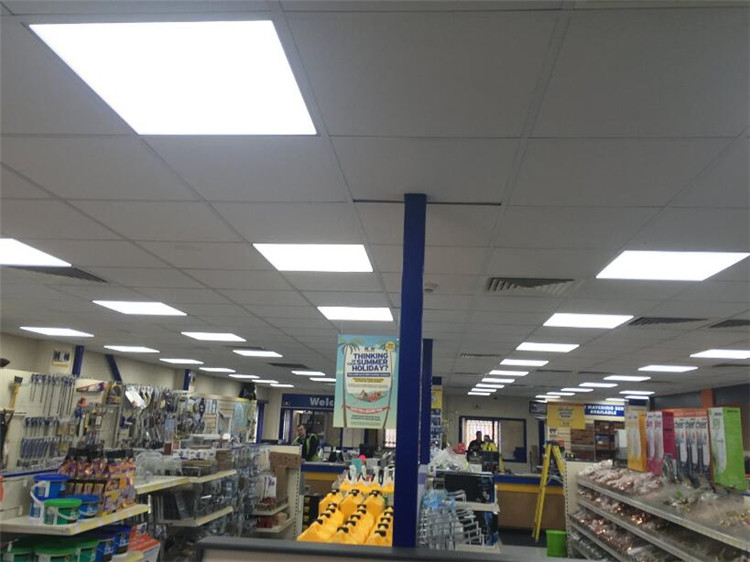

Our led panel light can be widely installed at home and public areas: Living room, bedroom, kitchen, hotel, meeting room, show room, shop, telephone booth ,etc.. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

Previous: 36W 40W 60W 300×1200 Recessed LED Ceiling Light Panel 30×120

Next: 60W 72W 80W 60×120 LED Recessed Ceiling Flat Panel Light

Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size. 9. Spring Clip Installation

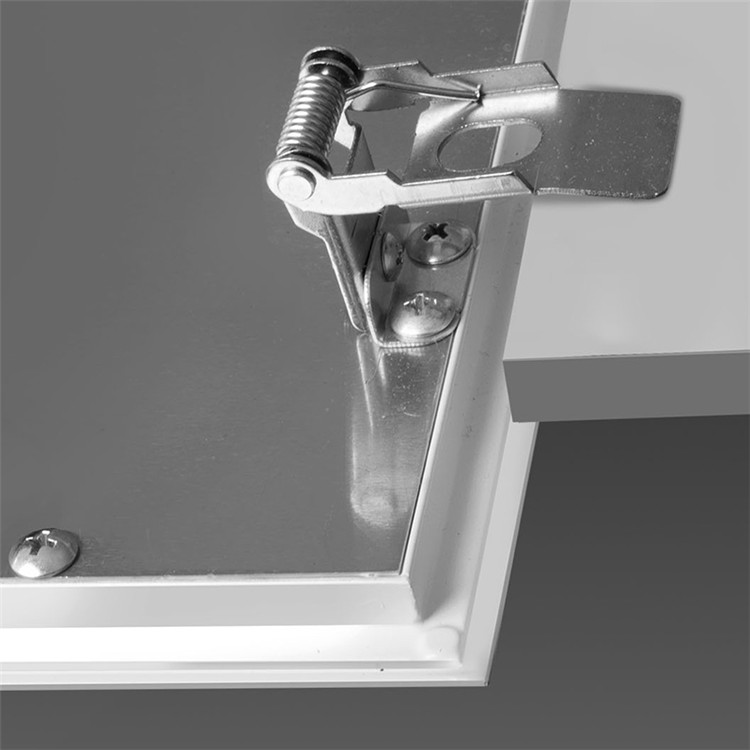

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
