9W 120x120mm Square CCT Dimmable LED Panel Downlight

LED Panel Downlight is designed for residential and commercial suspended grid ceilings. Aesthetically pleasing diffused light with minimal glare, these ultra thin square led panel downlights, use edge-lit technology to provide an even light source. 60×SMD 2835 LEDs deliver very comfortable and homogeneous distribution with optimized optics and give very soft light with no strain to eyes. Robust and high efficiency driver with wide voltage range and inbuilt protection.


  • Item: 120x120 CCT Dimmable LED Panel Light
  • Power: 9W
  • Dimmable: CCT Adjustable and Brightness Dimmable
  • Color Temperature: Tunable from 3000K to 6500K
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1. Product Features of 12x12cm CCT Dimmable LED Panel Light.

    •Color changing small led panel light has long lifespan 50,000 hours and extremely low maintenance cost.

    •CCT dimmable led panel down-light device also has a simple structure, easy installation.

    •CCT adjustable led flat panel down light adopts die-casting aluminum alloy with excellent ability to resist corrosion. Surface costing treatment makes the lamp more beautiful and charming. The color would never changing.

    •120x120mm tunable white led panel light uses acrylic as led panel face mask. It has high light transmission; besides, the precise embedded technology can effectively prevent the mosquitoes entering into the shade.

    2. Product Specification:

    Model No

    DPL-S4-7W-CCT

    DPL-S5-9W-CCT

    DPL-S6-12W-CCT

    DPL-S7-14W-CCT

    DPL-S9-20W-CCT

    Power Consumption

    7W

    9W

    12W

    14W

    20W

    Dimension (mm)

    85x85mm

    120x120mm

    150x150mm

    170x170mm

    225x225mm

    Luminous Flux (Lm)

    490560lm

    630720lm

    840960lm

    9801120lm

    14001600lm

    LED Qty (pcs)

    30pcs

    72pcs

    94pcs

    108pcs

    152pcs

    LED Type

    SMD2835

    Color Temperature (K)

    Dimmable from 3000K to 6500K

    Input Voltage

    AC 85V - 265V, 50 - 60Hz

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

    >80lm/w

    CRI

    >80

    LED Driver

    Constant Current IC Driver

    Working Environment

     Indoor

    Material of Body

    Aluminum Alloy + Mitsubishi LGP + PS Diffuser

    IP Rating

    IP20

    Operating Temperature

    -20°~65°

    Dimmable Way

    Color temperature and brightness dimmable

    Installation Option

    Recessed

    Life span

    50,000hours

    Warranty

    3 Years

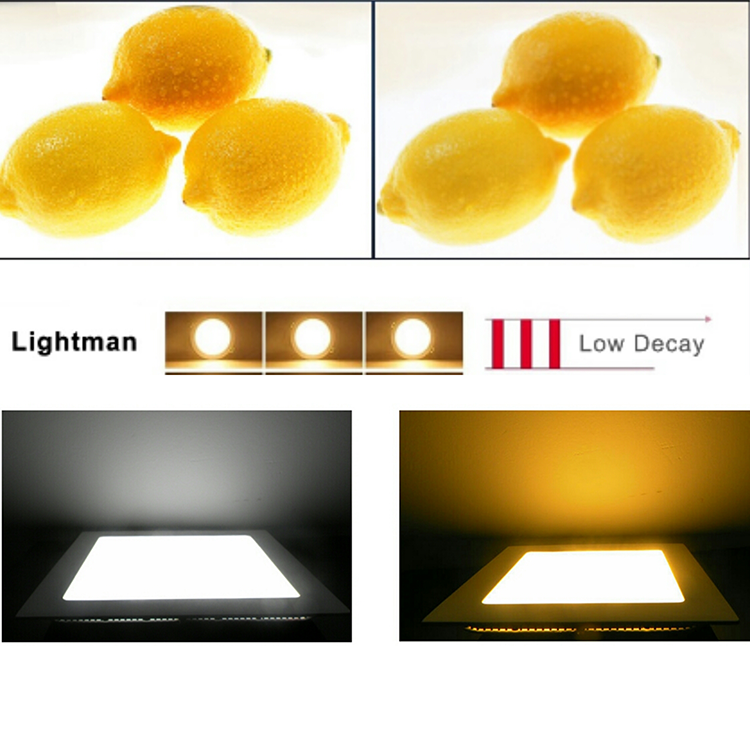

    3.LED Panel Light Pictures:

    1. cct led panel downlight
    2. 7w cct led panel downlight

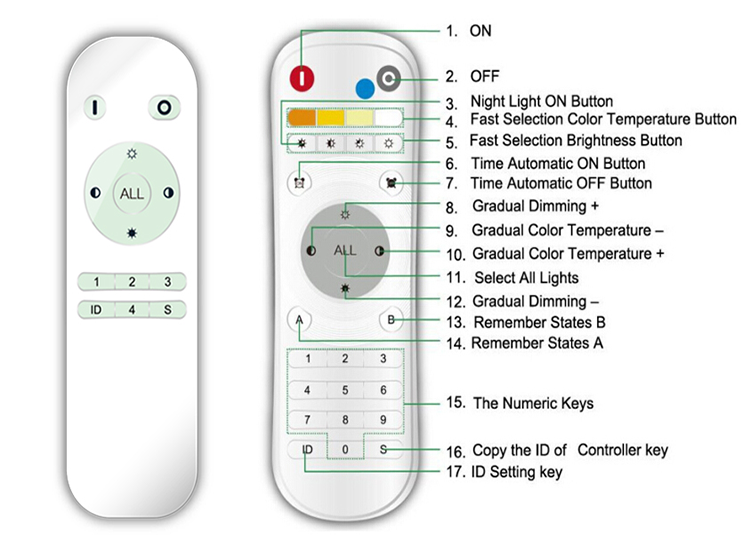

    CCT Dimmable Controller:

    1.Within 3 seconds after the lamp is lit up, press the number key "1", then press the "ID" key, then press the number key "1" again and press the "ID" key again as the first time. If the code is matched successfully, then the light will flash one time;

    2. If you want to set the second light or second group lights, you can press the number key "2", then press the "ID" key, then press the number key "2" again and press the "ID" key again as the same. This is to set the group number for the corresponding panel lights;

    3.When you want to control the number "1" light or number "1" group lights, just press the "1" number key to adjust the brightness or color temperature;

    5. cct led panel lighting
    6. cct led panel lamp
    5. led panel lamp
    6. led surface panel light

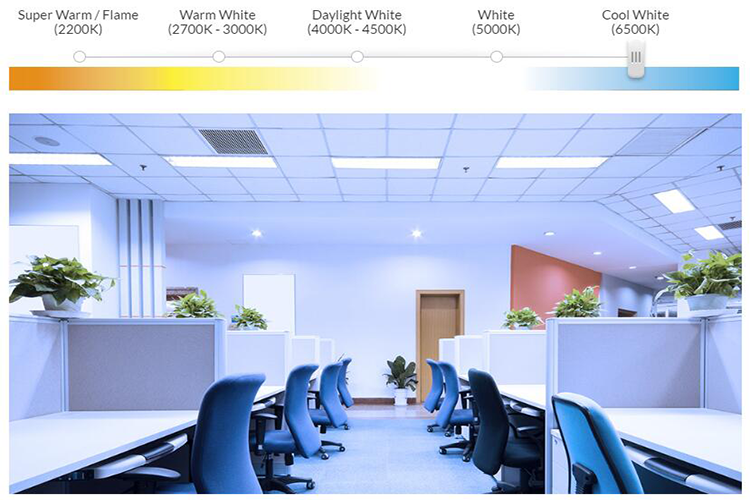

    4. Application:

    Lightman CCT adjustable led panel downlight produces volume of lumens to punch through high ambient levels for accent lighting in fashion stores, jewelry shops, commercial showrooms, galleries, museums, hotel lobbies, office meeting rooms, and public spaces at airports and other areas where adjustable illumination is required.

    9. recessed round led panel
    10. round led panel downlight

  • Previous:
  • Next:

  • Installation Guide:

    1.First of all, cut off the power switch.

    2.Open a hole on the ceiling as required size.

    3.Connect power supply and AC circuit for the lamp.

    4.Stuff the lamp into the hole, finish installation.
