AC110V 3W 4W UL DLC Square LED Panel Dwonlight 4inch – Lightman Detail:

1.Product Introduction of UL&DLC Square LED Panel Downlight.

•Designed for installation in 3inch, 4inch, 6inch, 8 inch, 9inch, 10inch and 12inch etc square shapes.

•High quality SMD LEDs deliver high performance and energy savings.

•Effective thermal management ensures reliability and performance.

•High efficiency, constant current driver provides flicker-free illumination.

•Green, low carbon, mercury-free, no infrared ray and UV, no strobe.

•Thermoset polyester powder coating provides high corrosion resistance.

•Tool-free recessed mounting using spring clips.

•3 years warranty are available by our factory.

2. Product Parameter：

Model No	Power	Product Size	LED Qty	Lumens	Input Voltage	CRI	Warranty
DPL-S3-3W	3W	85*85mm/3inch	15*SMD2835	>240Lm	AC110V	>80	3 Years
DPL-S4-4W	4W	100*100mm/4inch	20*SMD2835	>320Lm	AC110V	>80	3 Years
DPL-S5-6W	6W	120*120mm/5ich	30*SMD2835	>480Lm	AC110V	>80	3 Years
DPL-S6-9W	9W	145*145mm/6inch	45*SMD2835	>720Lm	AC110V	>80	3 Years
DPL-S8-15W	15W	200*200mm/8inch	70*SMD2835	>1200Lm	AC110V	>80	3 Years
DPL-S9-18W	18W	225*225mm/9inch	80*SMD2835	>1440Lm	AC110V	>80	3 Years
DPL-S10-20W	20W	240*240mm/10inch	100*SMD2835	>1600Lm	AC110V	>80	3 Years
DPL-R12-24W	24W	300*300mm/12inch	120*SMD2835	>1920Lm	AC110V	>80	3 Years

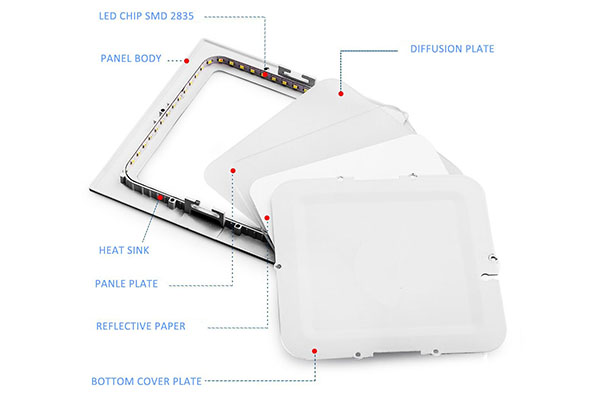

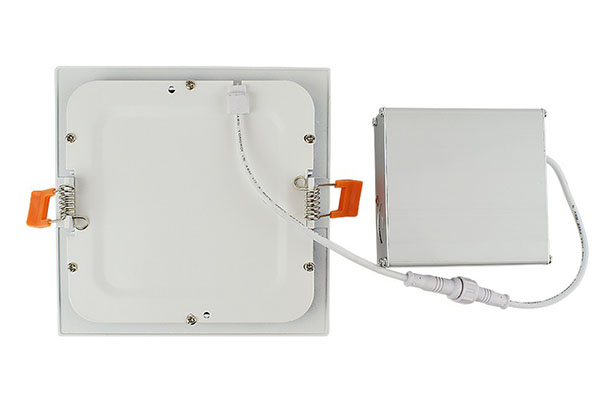

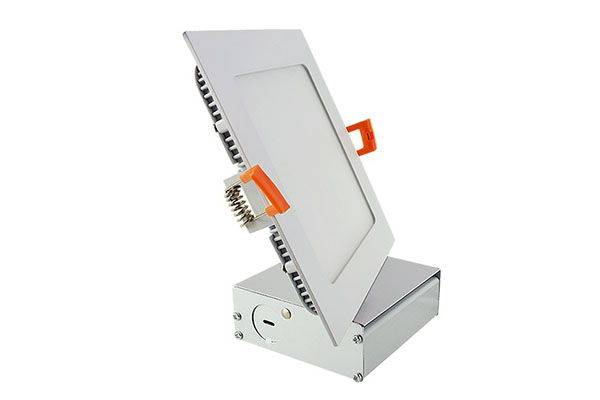

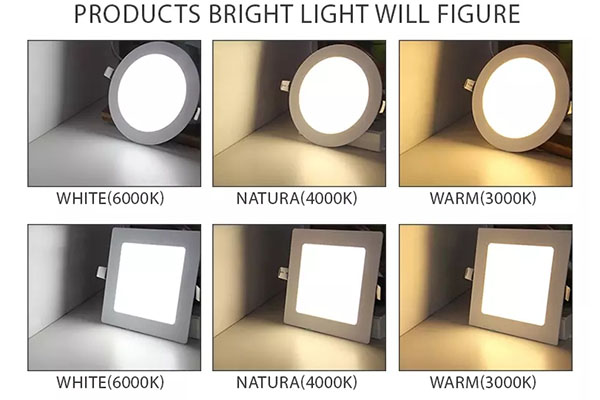

3.LED Panel Light Pictures:

1. 3inch led panel
2. 4inch led panel
3. square led panel downlight
4. led panel 3w
5. led panel lamp
6. led surface panel light

4. LED Panel Light Application:

UL&DLC LED panel downlight an excellent choice for use in offices, hotels, hospitals, conference rooms, restaurants, canopies, corridors, entrances, receptions, lobbies, retail spaces and public buildings etc.

9. recessed round led panel
8. 4inch square led panel

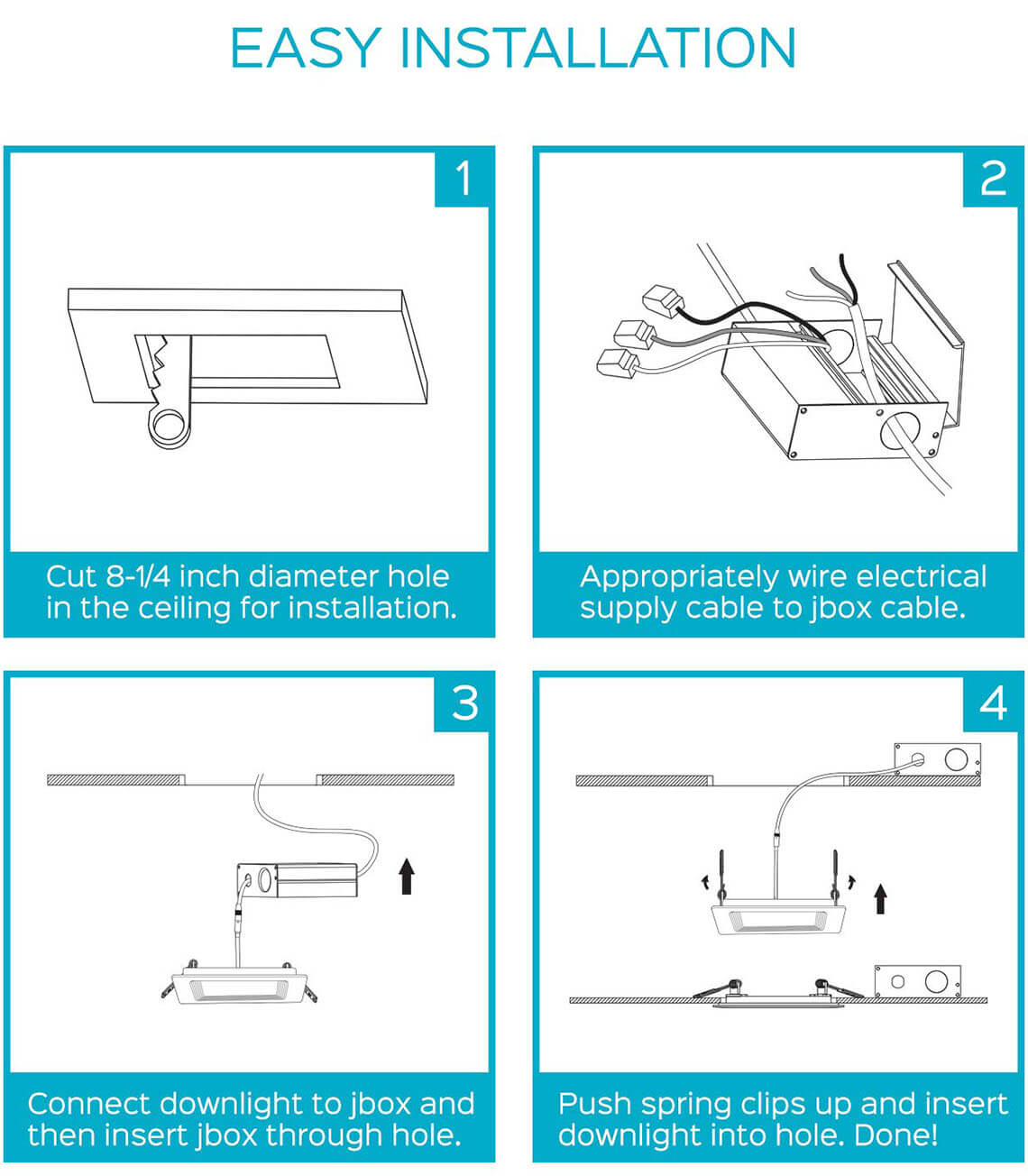

Installation Guide:

9. sauqre led panel downlight

Project Case :

12. 12w led panel

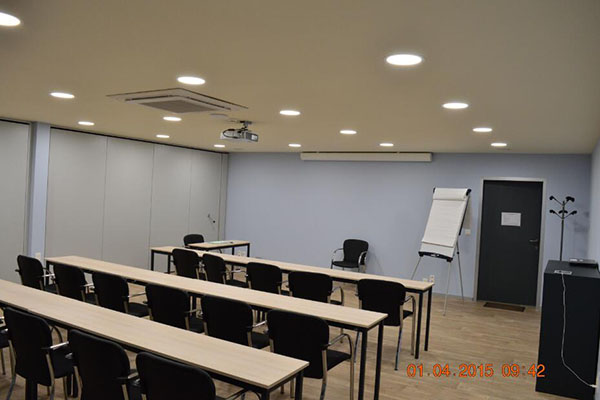

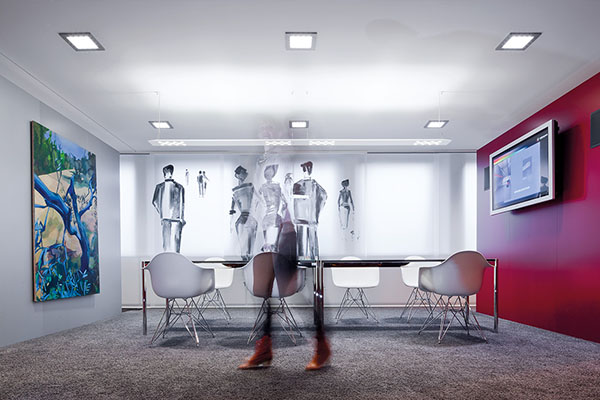

Conference room Lighting (Belgium)

13. ultra slim led panel downlight

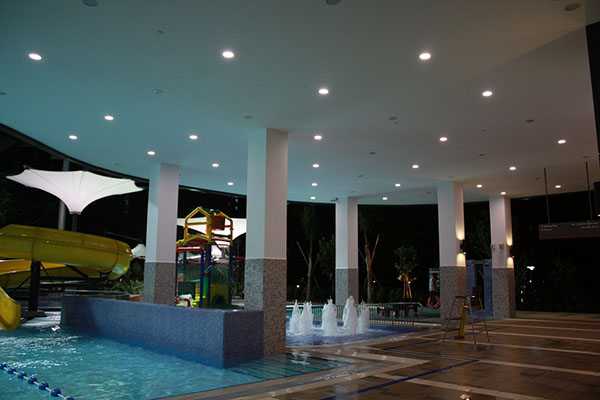

Station Lighting (Singapore)

14. round led ceiling panel lighting

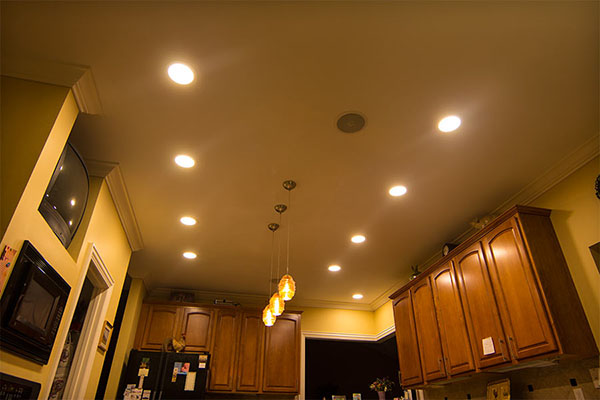

Kitchen Lighting (Italy)

15. 8inch led panel downlight

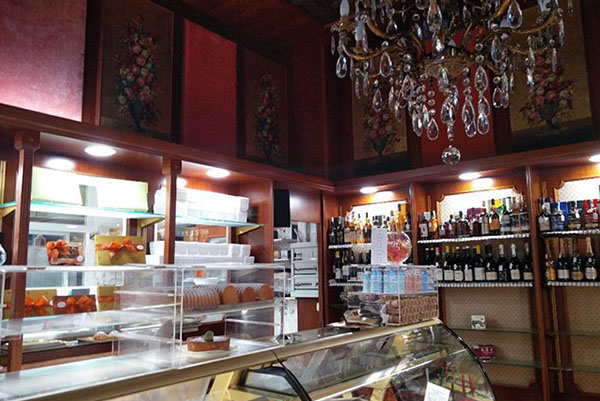

Pastry Shop Lighting (Milan)
