CE SAA ROHS 24W 300mm Surface Mount Round LED Panel Lamp – Lightman Detail:
1.Product Introduction of 300mm LED Flat Panel Light 24W.
• Lightman led panel downlights adopt die-cast aluminum baked white paint treatment, anti-corrosion, wear-resistant; light guide plate, high transmittance PS diffuser to make the light more uniform, softer and comfortable.
• The choice of display dedicated 2835 (30-120pcs) SMD, high significant means (Ra80), high lumen, low light failure, safety and environmental protection, light efficiency, longer life, lead, mercury, sodium and other Potentially hazardous to the health of the material, safety and environmental protection.
• Round surface mounted led panel uses constant current with IC driver, with short circuit, over current, overvoltage and overheating protection, no strobe. DC plug terminals used, the interface solid and durable.
2. Product Parameter:
Model No |
Power |
Product Size |
LED Qty |
Lumens |
Input Voltage |
CRI |
Warranty |
DPL-MT-R5-6W |
6W |
Ф120*40mm |
30*SMD2835 |
>480Lm |
AC85~265V 50/60HZ |
>80 |
3 Years |
DPL-MT-R7-12W |
12W |
Ф170*40mm |
55*SMD2835 |
>960Lm |
AC85~265V 50/60HZ |
>80 |
3 Years |
DPL-MT-R9-18W |
18W |
Ф225*40mm |
80*SMD2835 |
>1440Lm |
AC85~265V 50/60HZ |
>80 |
3 Years |
DPL-MT-R12-24W |
24W |
Ф300*40mm |
120*SMD2835 |
>1920Lm |
AC85~265V 50/60HZ |
>80 |
3 Years |
3.LED Panel Light Pictures:

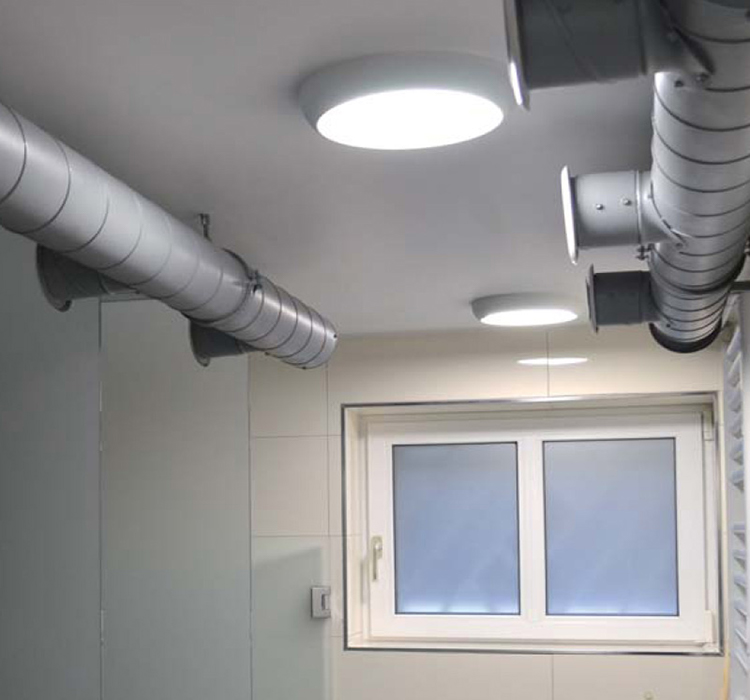

4. LED Panel Light Application:
Lightman LED panel lights can be used in airports, parking lots, factories, production lines, family house, residential lighting, living room, dormitory, corridor, library, hospitals, school, the hall ,metro station, train station, bus station etc.

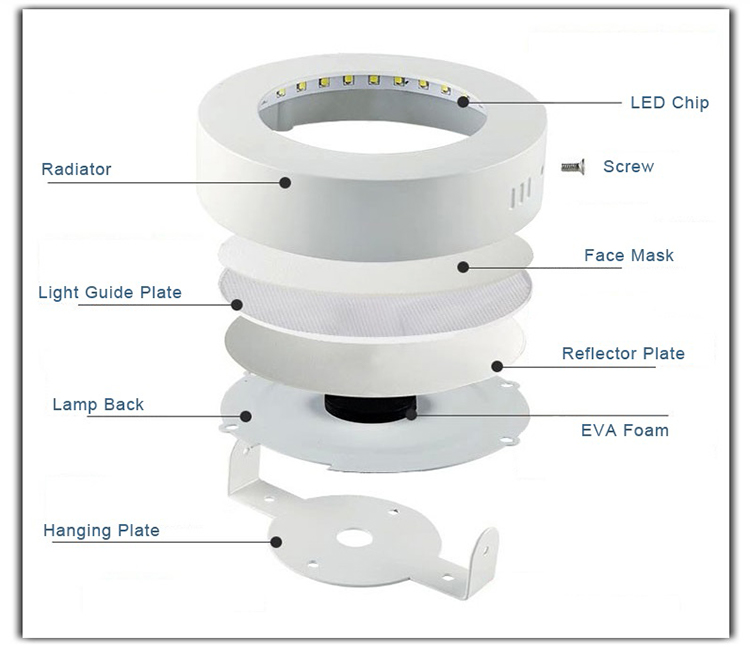

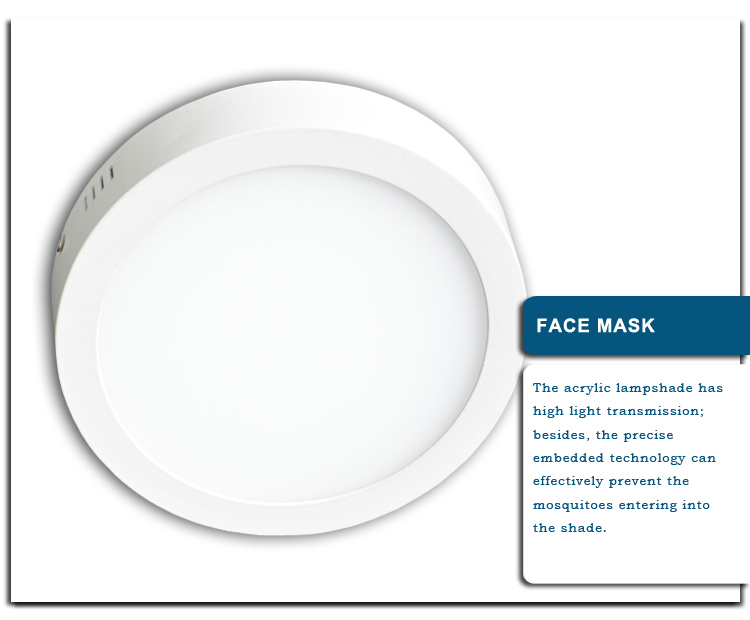

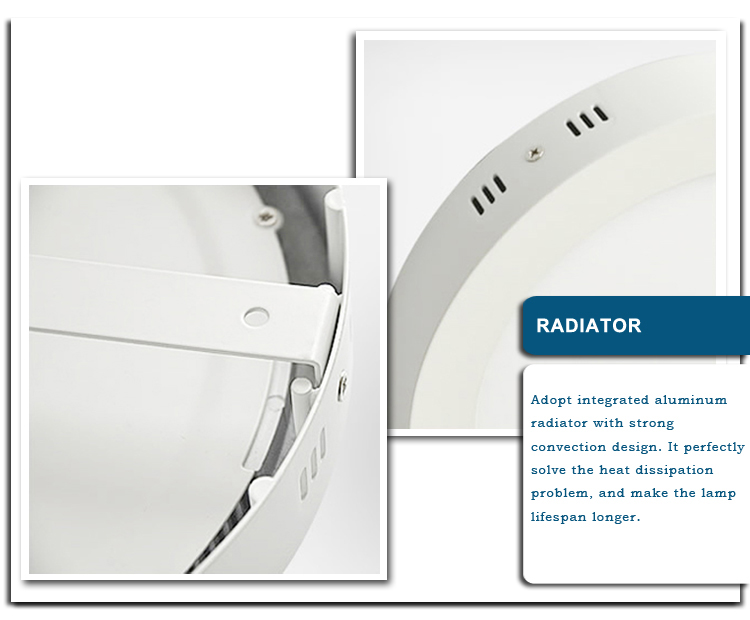

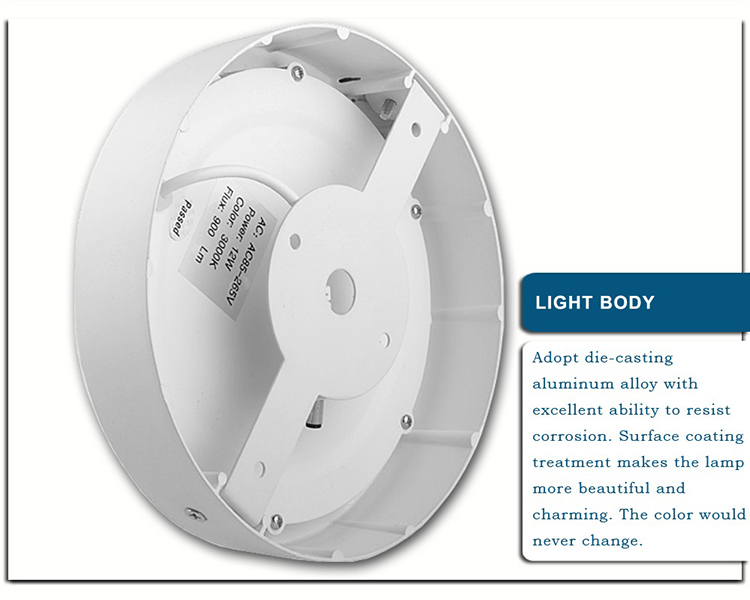

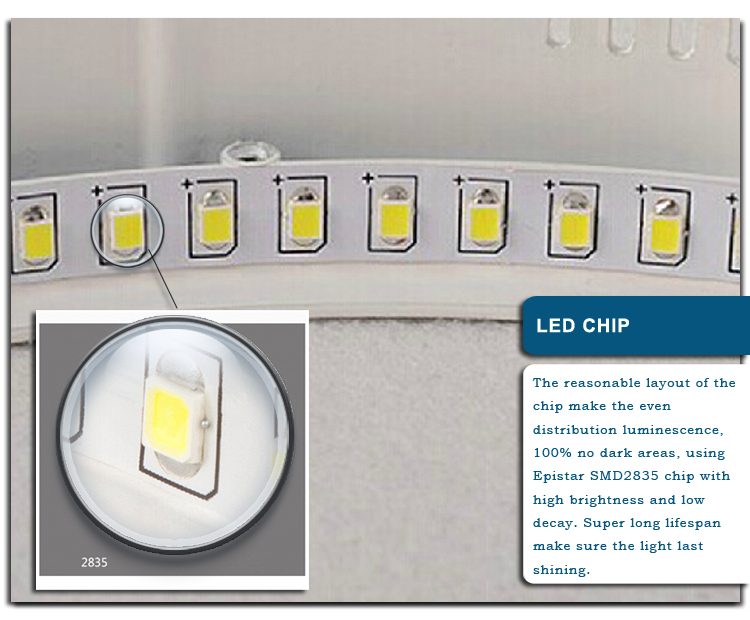

Product detail pictures:
