China Cheap price Led Panel Light Fixture - 40W 300×600 Triac Dimmable Narrow Frame LED Office Panel Lamp 30×60 – Lightman Detail:

1.Product Introduction of 600×600 mm No Frame LED Panel Light.

• 45W dimmable frameless led panel light with high hardness aero aluminum housing material 6063.

• For frameless led panel light fixtures, special different view angles, mixing lighting design.

Great light evenness, no dark zones.

• The frameless led panel light can be used to stitch many panel lights to be a big led panel light

size. And it has Reflective area larger.

• No RF interference of our LED Panel Light, no buzzing noise and UV radiation.

• For our standard seamless led panel light size, there are 598x598mm, 298x598mm, 298x1198mm, 298x298mm, 620x620mm for options.

• Frameless led panel light has 3 years long life, 5 times longer than fluorescent, reduce your replacement frequency and maintenance cost.

2. Product Parameter:

Model No

PL-6060-45W-FS

PL-6262-45W-FS

PL-3060-40W-FS

PL-3030-20W-FS

PL-30120-45W-FS

Power Consumption

45W

45W

40W

20W

45W

Dimension (mm) 598*598*17mm

620*620*17mm

298*598*17mm

298*298*17mm

298*1198*17mm

Luminous Flux (Lm)

3150~3420lm

3150~3420lm

2800~3040lm

1400~1560lm

3150~3420lm

LED Qty (pcs)

238pcs

238pcs

238pcs

126pcs

476pcs

LED Type

SMD4014

Color Temperature (K)

2800K-6500K

Output Voltage

DC24V

Input Voltage

AC 85V - 265V, 50 - 60Hz

Beam Angle (degree)

 >120°

CRI

  >80

Power Factor

 >0.95

Working Environment

 Indoor

Material of Body

Aluminum Alloy + Acrylic + PS Diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Installation Option

Recessed/Suspended/Surface Mounted

Life span

50,000hours

Warranty

3 Years

3.LED Panel Light Pictures:

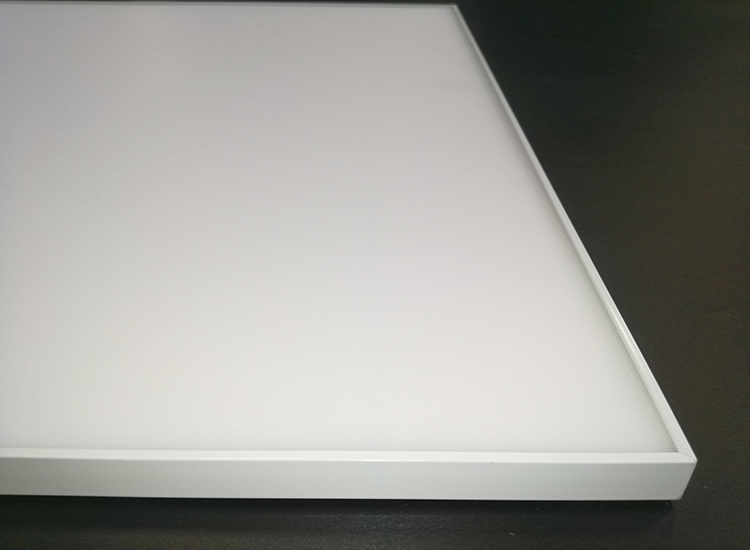

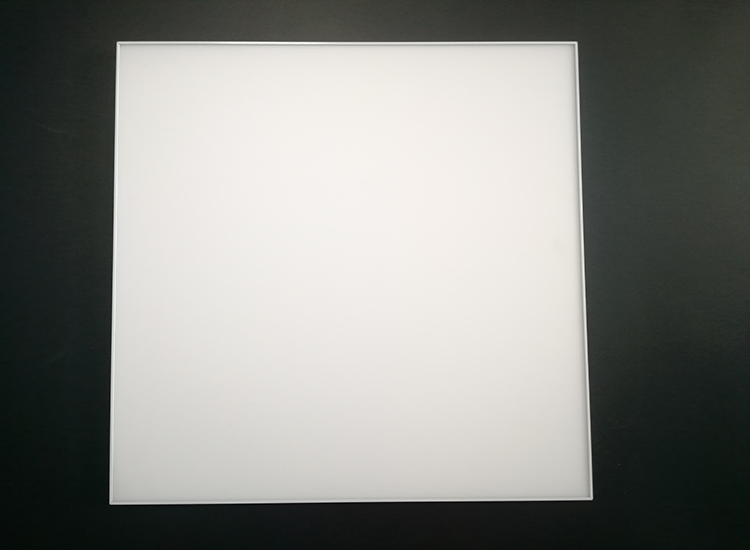

1. narrow frame led panel light 60x60
3. nmarrow frame led panel light 45w
2. narrow frame led sky panel light

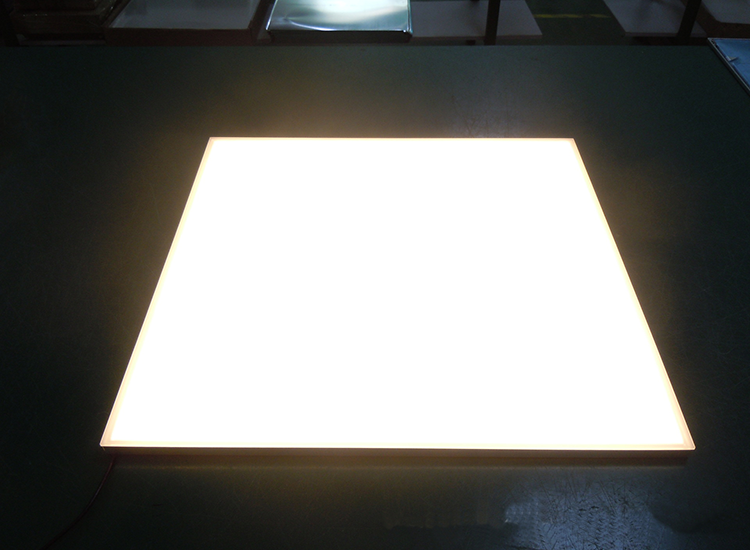

5. narrow frame led sky panel light 600x600

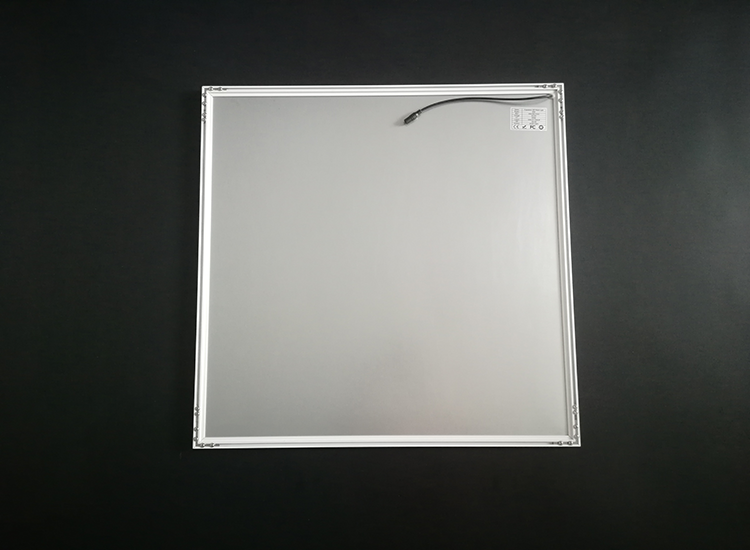

7. led 60x60-Product Detail
8. led Product Detail

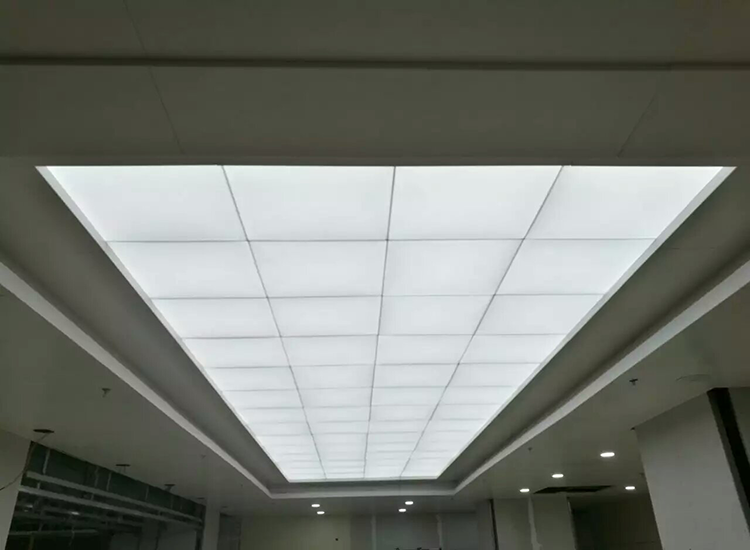

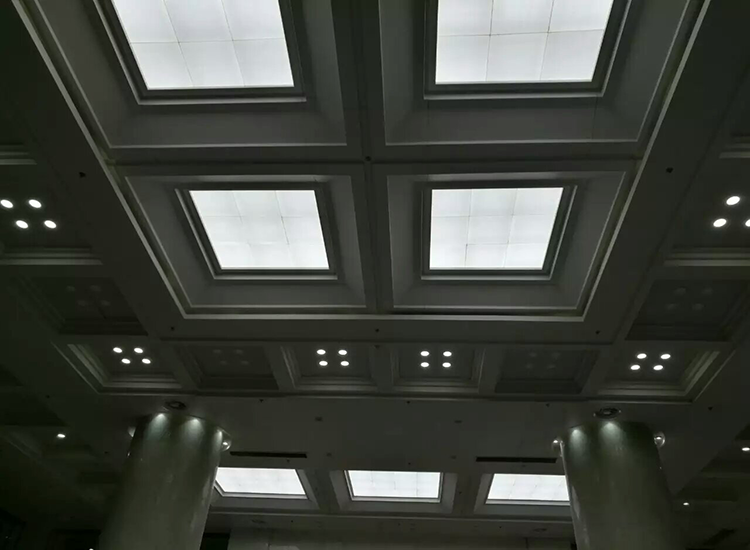

4. LED Panel Light Application:

Frameless led flat panel light is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.

13. cct dimmable frameless led panel light
9. 0-10v dimming frameless led panel lamp


Product detail pictures:

China Cheap price Led Panel Light Fixture - 40W 300×600 Triac Dimmable Narrow Frame LED Office Panel Lamp 30×60 – Lightman detail pictures

China Cheap price Led Panel Light Fixture - 40W 300×600 Triac Dimmable Narrow Frame LED Office Panel Lamp 30×60 – Lightman detail pictures

China Cheap price Led Panel Light Fixture - 40W 300×600 Triac Dimmable Narrow Frame LED Office Panel Lamp 30×60 – Lightman detail pictures
