Cool White Recessed IP65 Integrated LED Panel Light 600×1200 60W 72W 80W

IP65 integrated led panel light fittings are available in a range of different sizes and power options so you’re sure to find the ideal panel for your needs. The high IP rating makes them suitable for use in wet and damp environments such as bathrooms, utilities and clean room areas.


  • Item: 600x1200 IP65 Integrated LED Panel Light
  • Power: 60W /72W /80W
  • Input Voltage: AC85~265V
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Installation Guide

    Product Video

    1. Product Features of 600x1200mm IP65 Integrated Waterproof LED Panel Light.

    •The IP65 LED panel light is designed for applications in dusty or wet & damp environments where before this was just not possible with normal LED panel light.

    It is also ideal for the clean room requirements.

    •Low voltage power supply is used in led panel light, which provides a strong guarantee for the product security and stability, aluminum frame also greatly improve product stability, bring panel light with better quality of anti-broken, shock-resistant and fireproof. Light emitting surface used PS plastic.

    •It uses PMMA light guide plate with light transmittance up to 95%. What's more, PMMA LGP will not turn yellow after using long years.

    •We provide three years warranty for led panel light and led driver.

    2. Product Specification:

    Model No

    PL-60120-60W

    PL-60120-72W

    PL-60120-80W

    Power Consumption

    60 W

    72 W

    80 W

    Luminous Flux (Lm)

    4800~5400lm

       5760~6480lm

      6400~7200lm

    LED Qty(pcs)

    300 pcs

     408 pcs

    408 pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2800 - 6500K

    Color

    Warm/Natural/Cool White

    Dimension

    598*1198*12mm

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

      >80lm/w

    CRI

     >80

    Power Factor

     >0.95

    Input Voltage

    AC 85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS diffuser

    IP Rating

    IP65

    Operating Temperature

    -20°~65°

    Dimmable

    Optional

    Life span

    50,000hours

    Warranty

    3Years

    3. LED Panel Light Pictures:

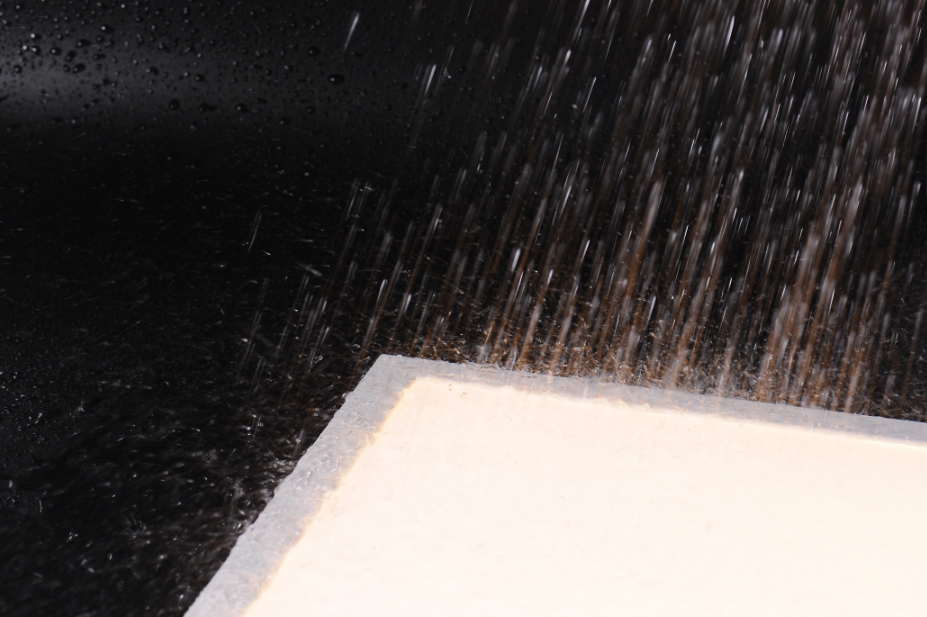

    1. 620x620 waterproof led panel light 36w

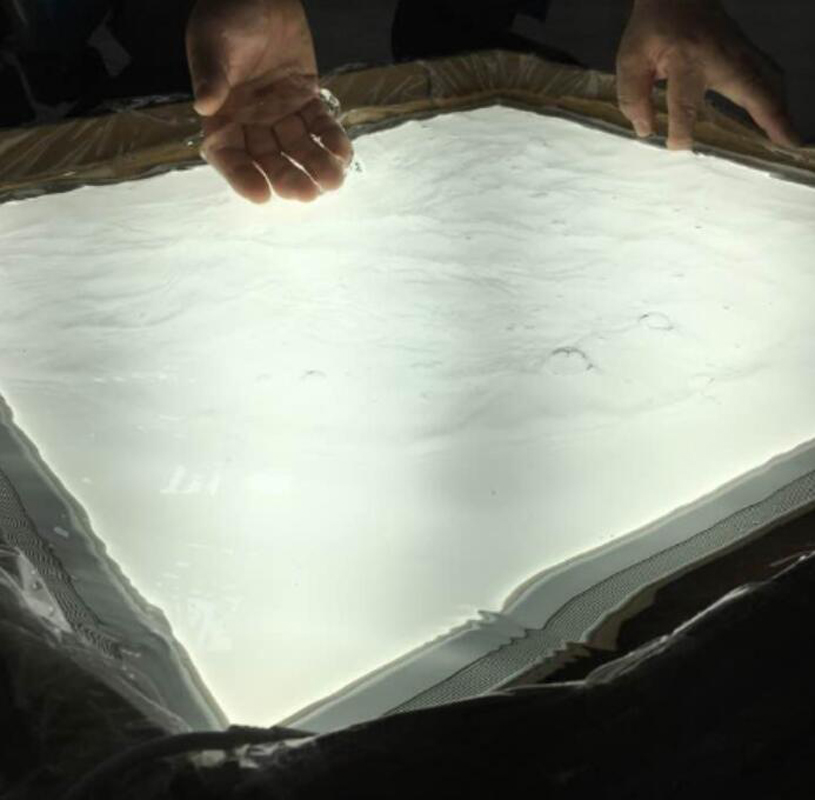

    6. Waterproof led panel light

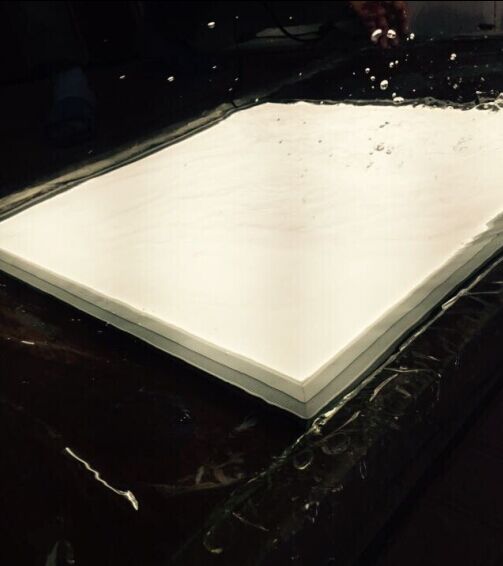

    5. 600x600 IP65 waterproof led panel light

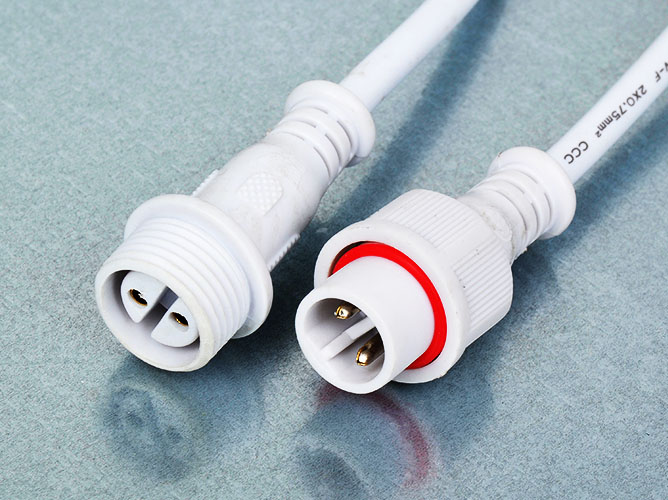

    4. ip65 led ceiling panel light

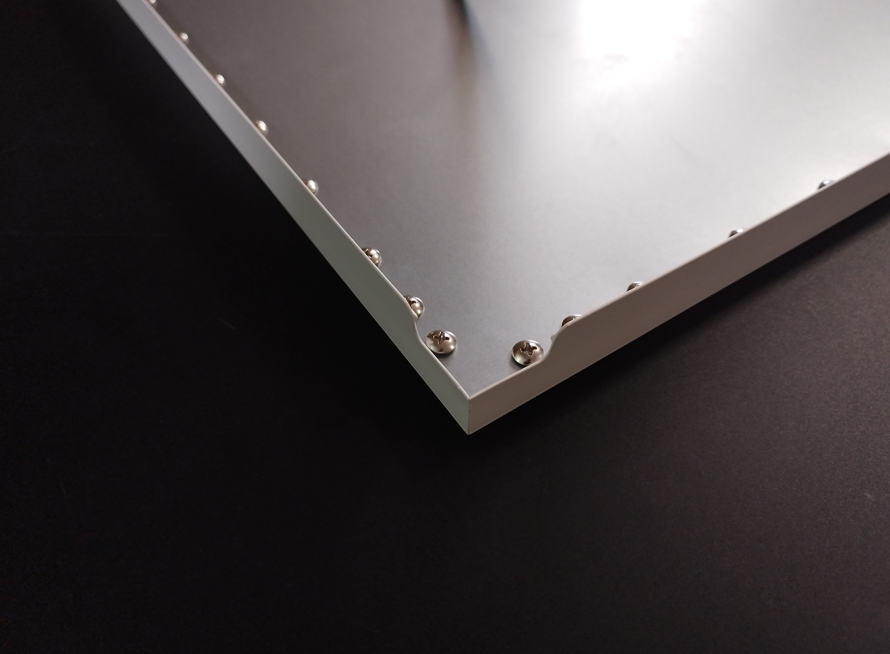

    3. ip65 integrated led ceiling panel light

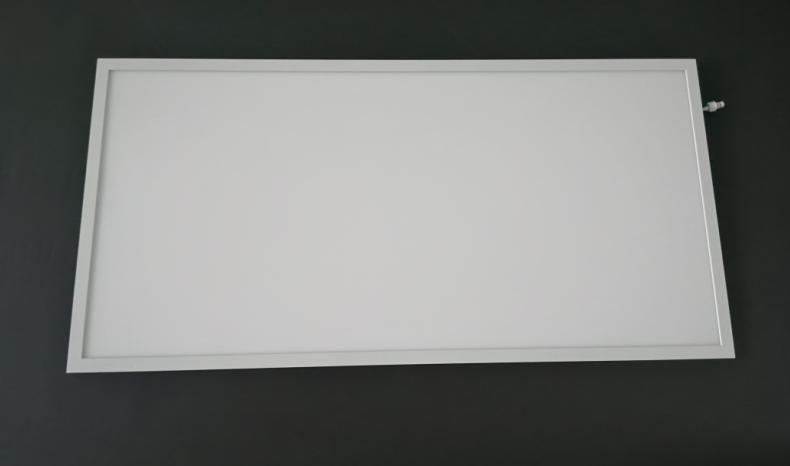

    2. 600x1200 ip65 led flat panel light


  • Previous:
  • Next:

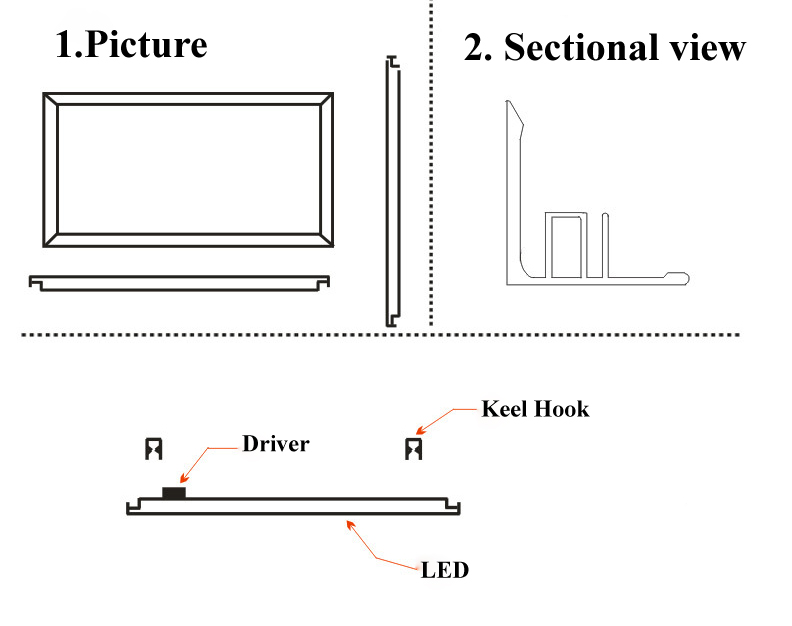

  • 7. installation guide

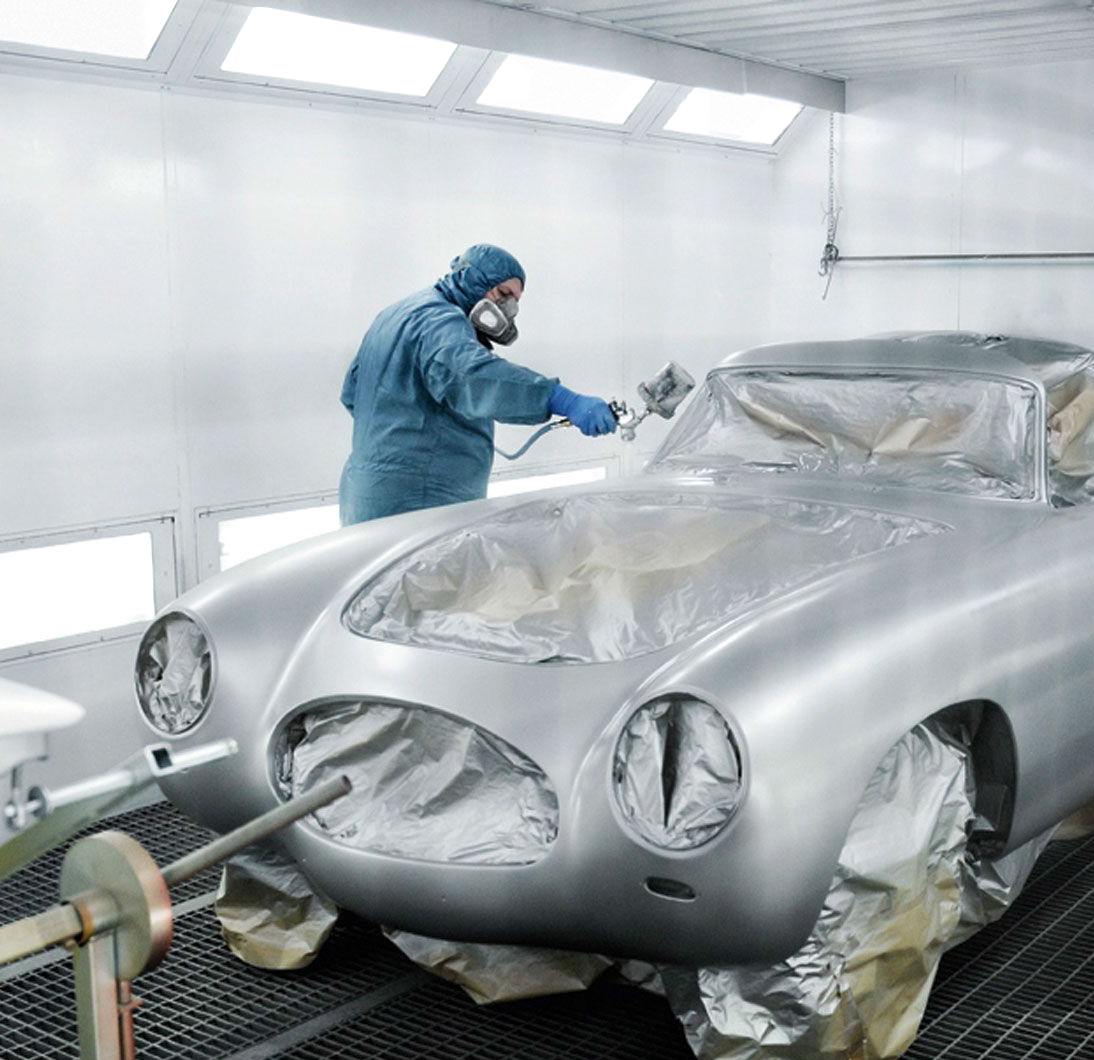

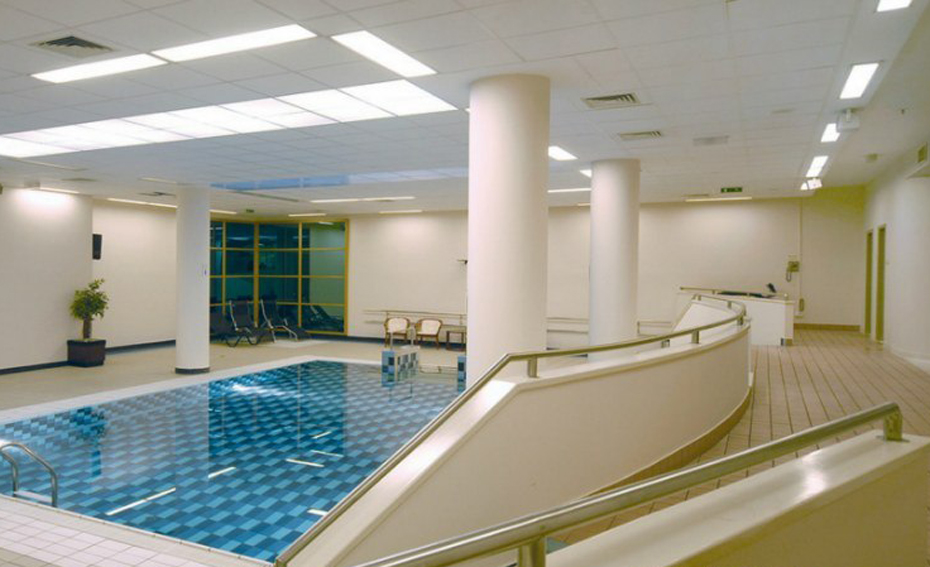

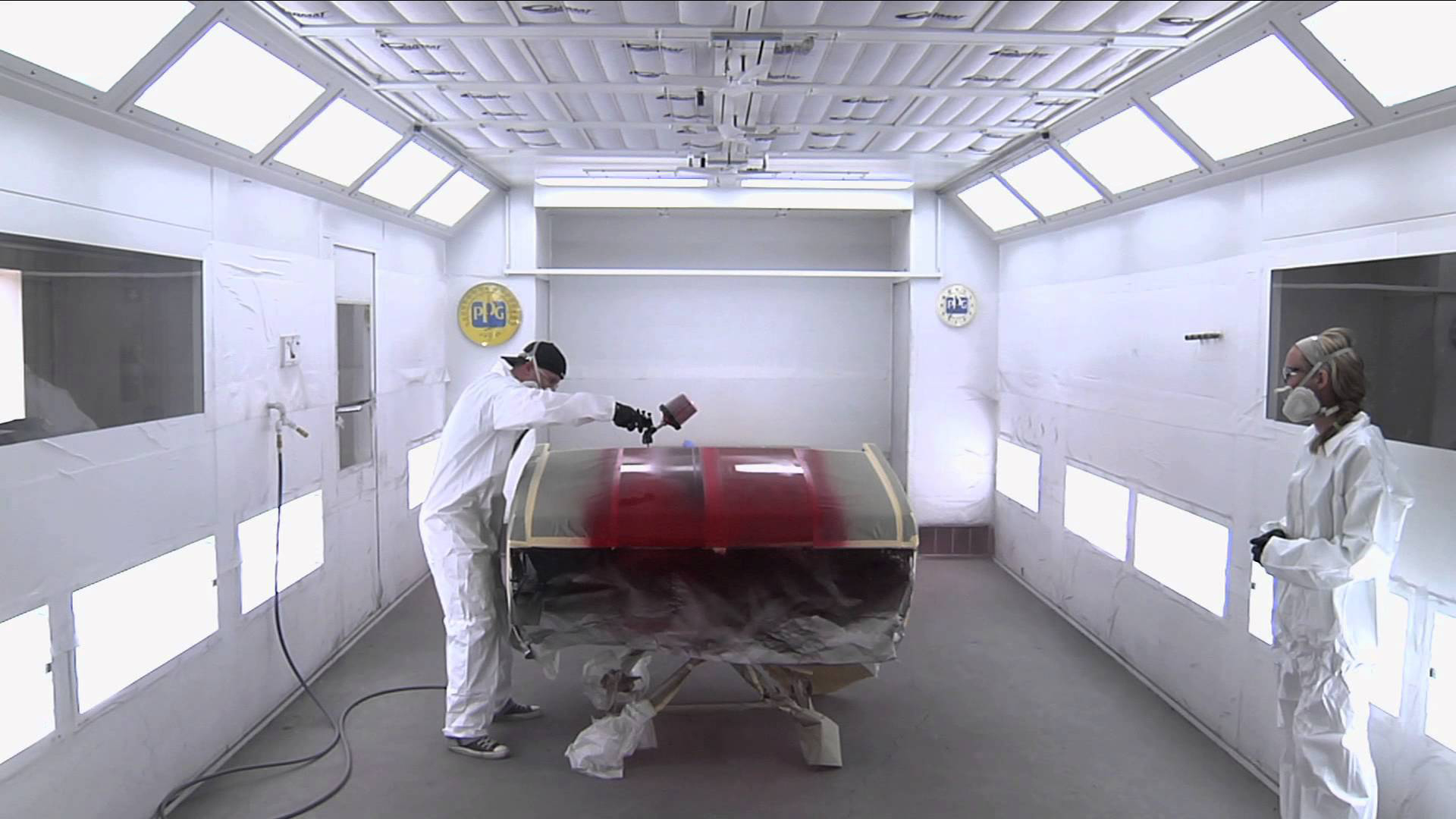

    8. ip65 led ceiling panel light 10. ip65 waterproof led panel light 9. ip65 led flat panel light
