CRI90 600×600 UGR < 19 UGR < 16 Square LED Ceiling Panel Lighting

Glare can make working environments uncomfortable and decrease productivity. Our UGR19 LED panels built with this in mind are ideal for office settings and other environments where glare can be an issue.

Item: 600x600 UGR19 LED Panel Light

Power: 36W / 40W /48W / 54W / 60W / 72W / 80W

CRI: >80

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

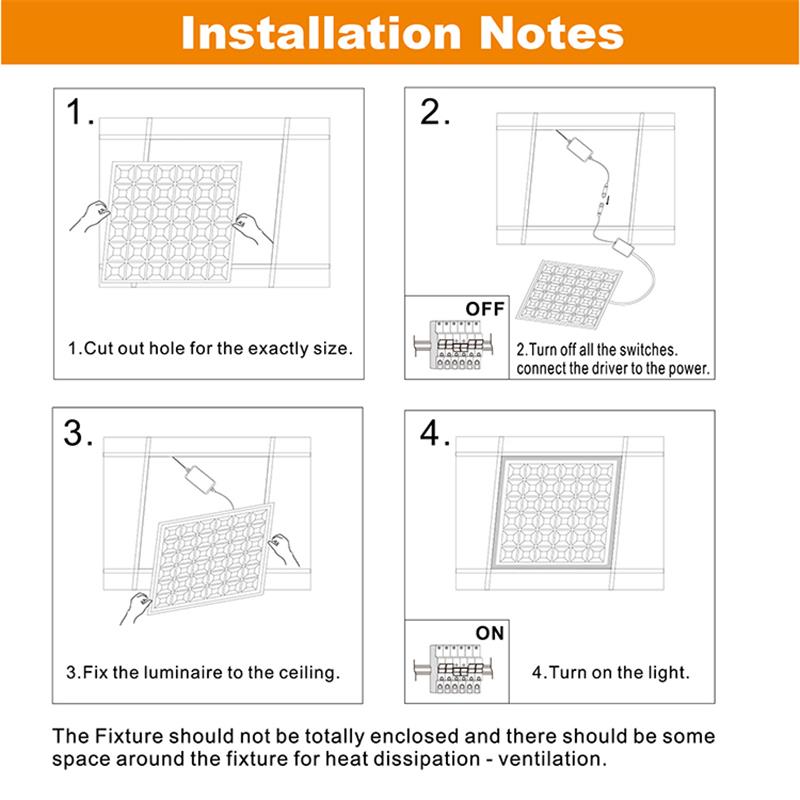

Installation Guide

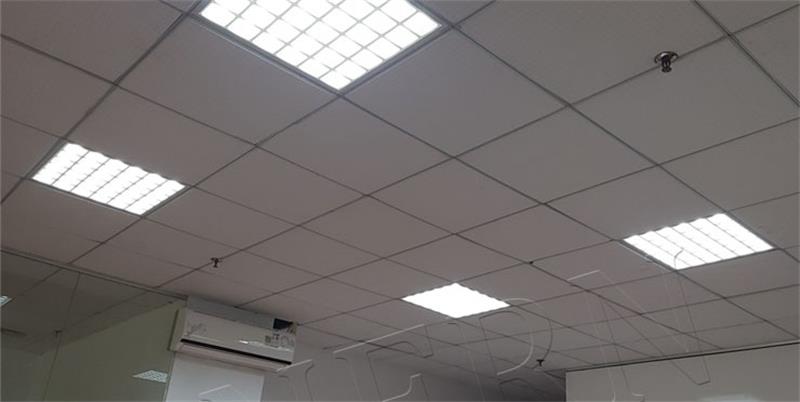

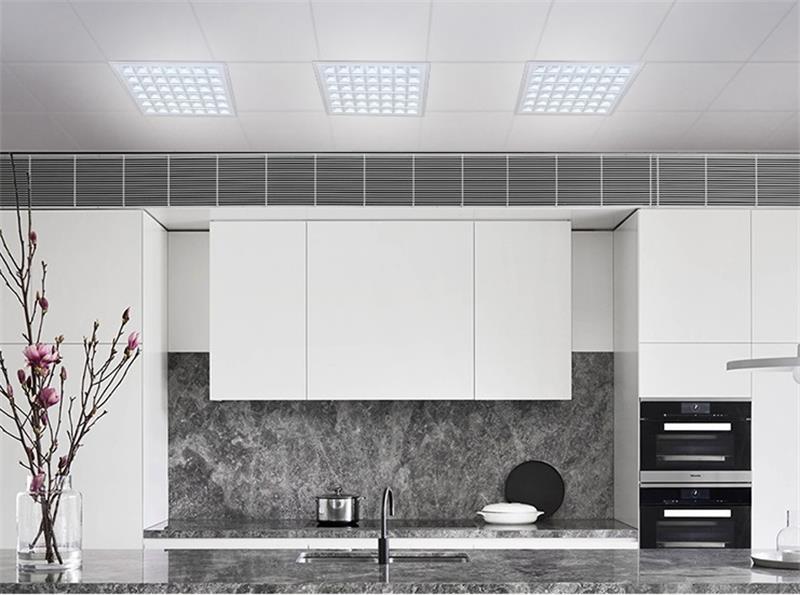

Project Case

Product Video

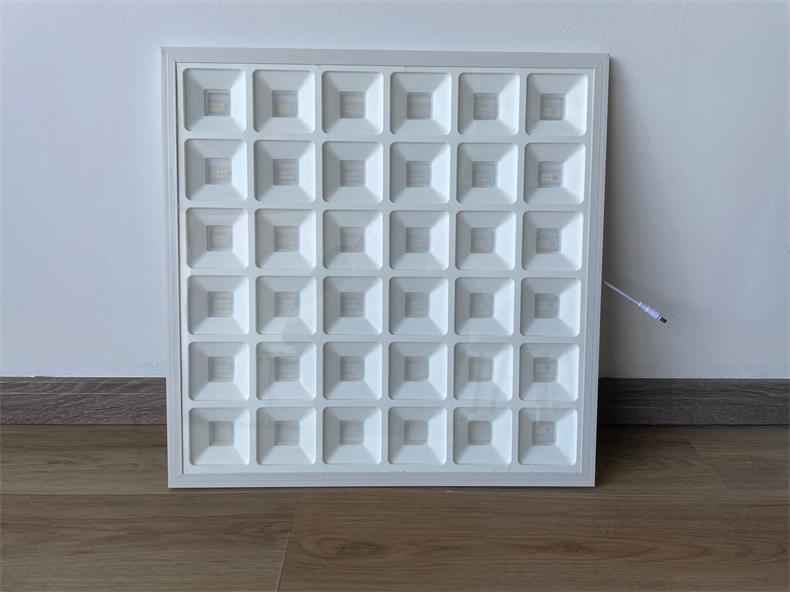

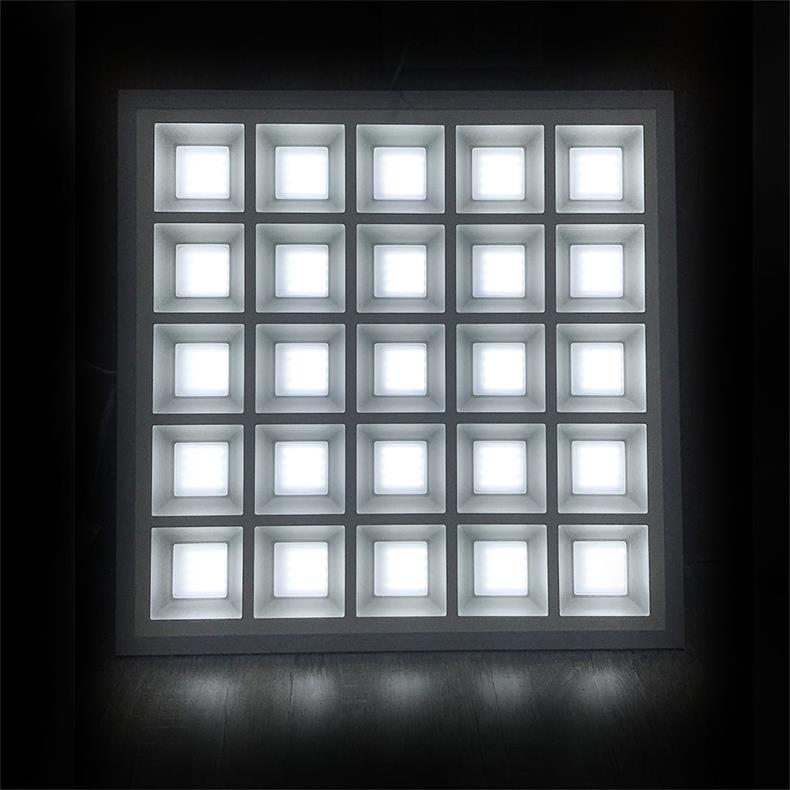

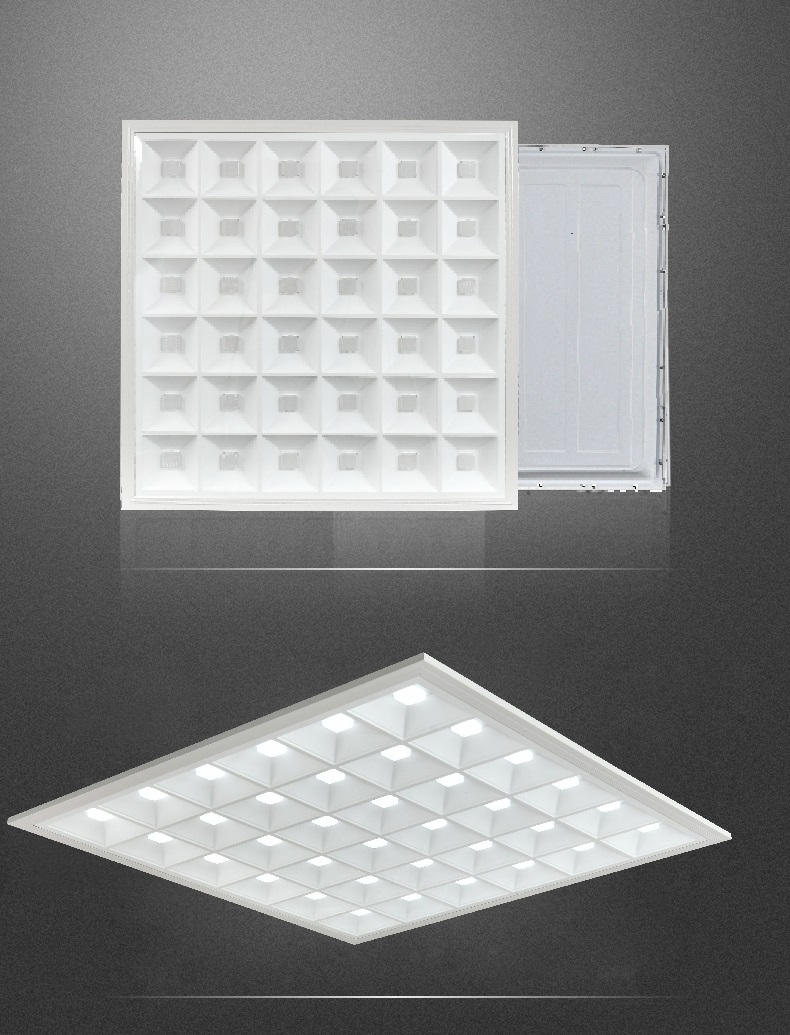

1.Product Introduction of 595x595 UGR<19 LED Panel Light.

• Ultra-slim, fashion design. UGR19 led ceiling light panel adopts high lumen SMD2835 LEDs

as light source.

• High CRI, restore true beauty. Ideal choice for retail application, enjoy the fun of the light.

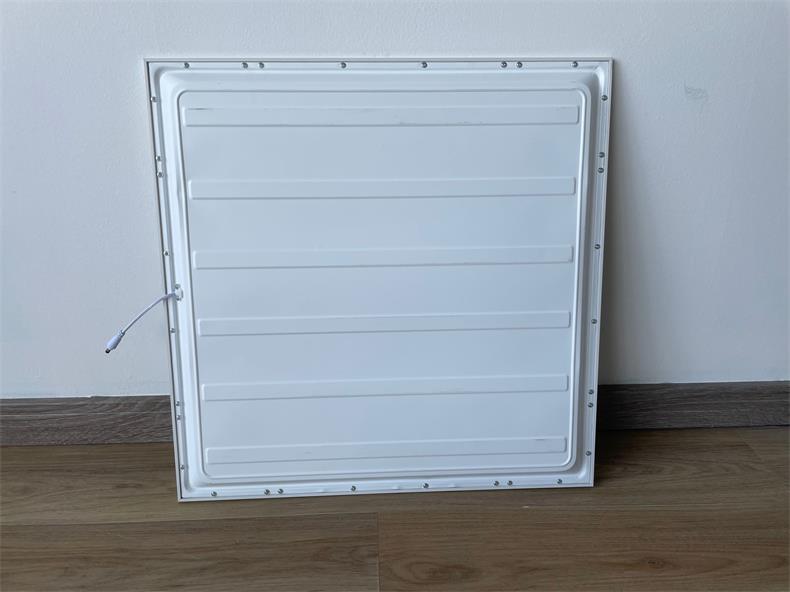

• UGR<19 LED Panel Light ,White painted Iron bottom with clear/mass diffuser long lasted

and easy installation mode.

• Excellent heat dissipation, high efficient ,long lifespan reached to 50000 hours ,with CE certificate, welcome any OEM project.

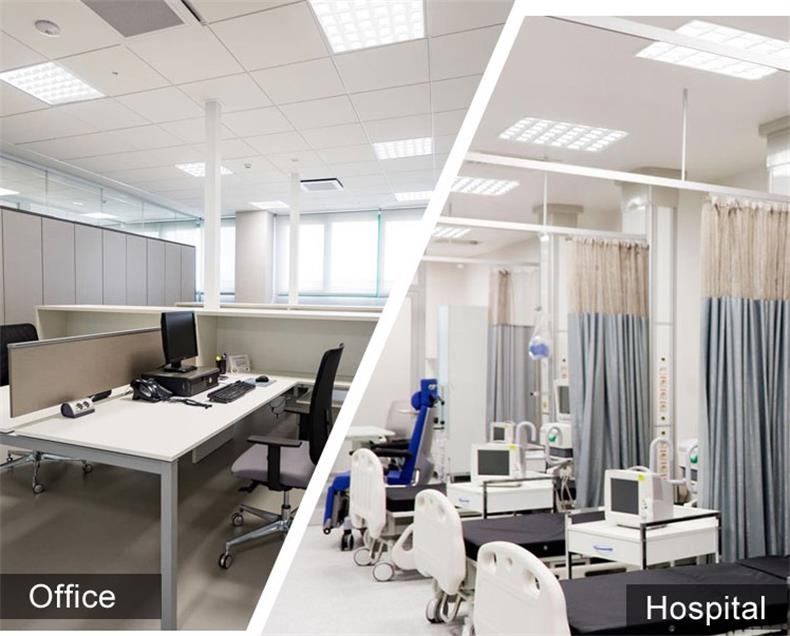

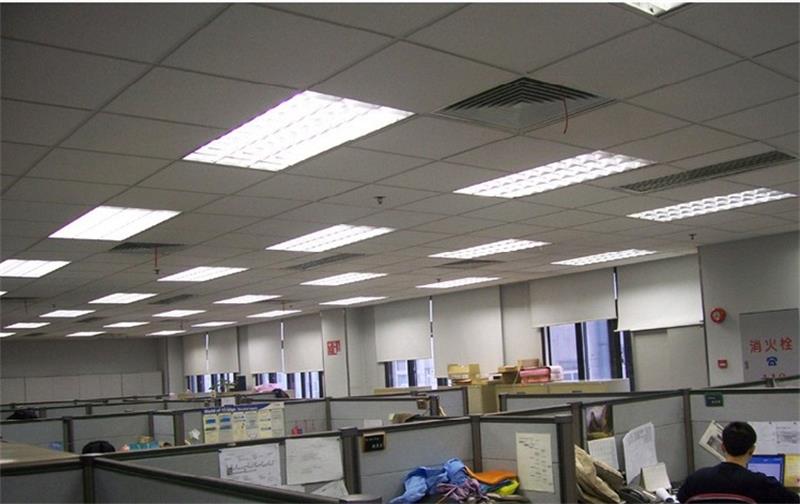

• Hotel, meeting room, factory or office, commercial using, residence or communal facilities, school, hospital etc.

• Quick and easy installation.

2. Product Parameter:

Model No	PL-6060-36W-UGR	PL-6060-40W-UGR	PL-6060-48W-UGR	PL-6060-54W-UGR
Power Consumption	36W	40W	48W	54W
Luminous Flux (Lm)	3240～3600lm	3600～4000lm	4320～4800lm	4860～5400lm
LED Qty (pcs)	192pcs	204pcs	252pcs	280pcs
LED Type	SMD 2835
Color Temperature (K)	6500K
Body Color	White
Dimension	595x595x25mm
Beam Angle (degree)	90°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.9
Input Voltage	AC85V-265V/AC220-240V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor

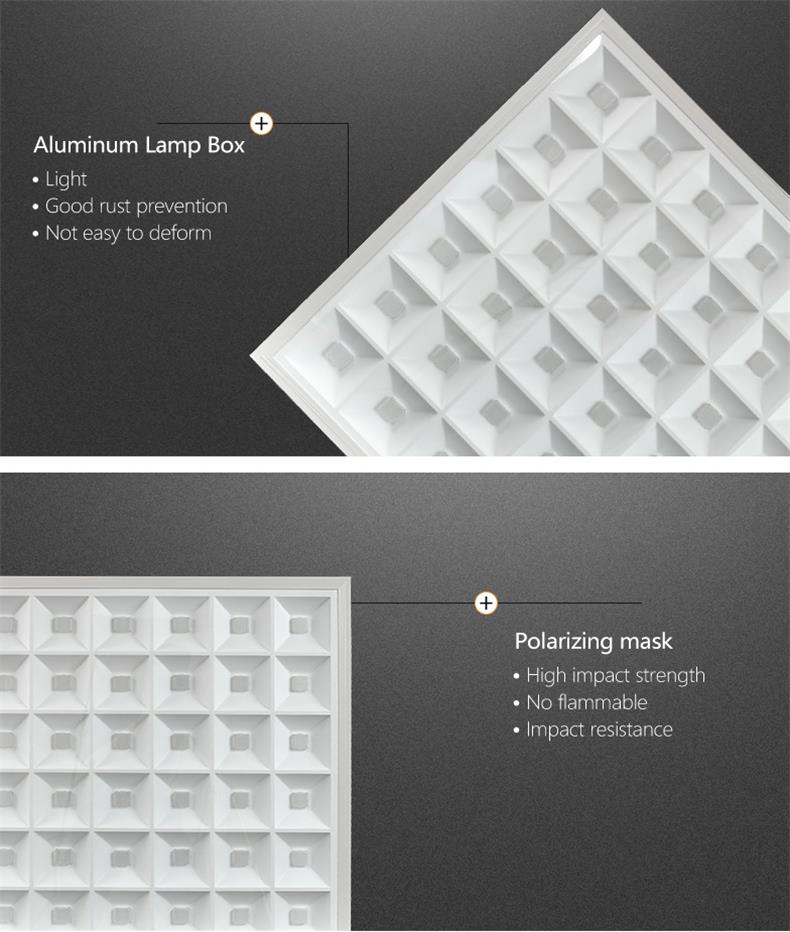

Material	Aluminum
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years
