We insist on offering premium quality manufacturing with superior business concept, honest product sales as well as finest and fast assistance. it will bring you not only the good quality product or service and huge profit, but the most significant is to occupy the endless market for Led Recessed Panel Light, Seamless Led Linear Light, Led Panel Light 2x2, With advantage of industry management, the business has generally been committed to supporting prospects to become the current market leader in their respective industries.
Factory source Portable Led Light Panel - 80W 1-10V Dimmable Emergency LED Ceiling Panel Light 60×120 – Lightman Detail:

1.Product Introduction of 60×120 Emergency LED Panel Light.

• Aviation aluminum 6063, high conductivity; with 3mm wall-thickness aluminum, which can solve the heat dissipation of led panel light.

• Light Guide Plate(LGP): 3mm high transparent(about 90%) PMMA LGP, which ensure that of LGP will not be yellow within 3 years.

• PCB(Printed Circuit Board): Imported Taiwan Epistar, professional circuit design, each group of LEDs work separately to avoid any problem of lighting output caused by single faulty LED.

• LED Driver: High quality driver & No Flicker driver.

• Emergency led lighting panel series is direct view type with patented design for emergency time. It is widely used in home, hotel, hospital, mall, office, classroom and conference rooms.

• Emergency led flat light panel has 3 years or 5 years warranty.

• Emergency led panel light fixtures can be come with 0-10v dimmable ,Triac dimmable, Dali dimmable, color changing etc functions.

2. Product Parameter:

Model No

PL-60120-48W

PL-60120-54W

PL-60120-60W

Power Consumption

48W

54W

60 W

Luminous Flux (Lm)

 4320～4560lm

4860～5130lm

5400～5700lm

LED Qty (pcs)

 252pcs

280pcs

300pcs

LED Type

SMD 2835

Emergency Time

1Hour, 2Hours, 3Hours for options

Color Temperature (K)

3000-6500K

Color

Warm/Natural/Cool White

Dimension

595*1195*11mm

Beam Angle (degree)

120°
Light Efficiency (lm/w)

  >85lm/w

CRI

  >80

Power Factor

 >0.95

Input Voltage

AC 85V - 265V

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PS diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Dimmable

Optional

Life span

50,000hours

Warranty

3Years or 5 Years

3.LED Panel Light Pictures:

1. emergency led panel light 60x60
2. 2ft x 4ft emergency led panel light

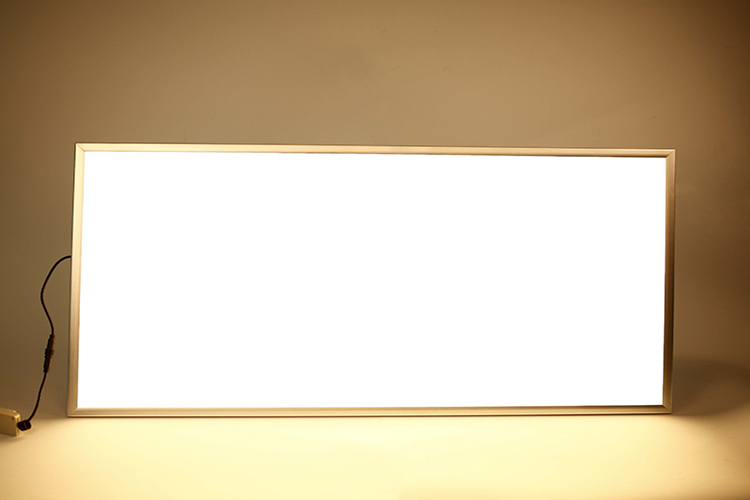

3. Lightman 1200x600mm led flat panel light
1. emergency led panel light 60x60
4. Emergency Wiring Connection for led panel light
5. emergency led flat panel light testing
7. led 60x60-Product Detail

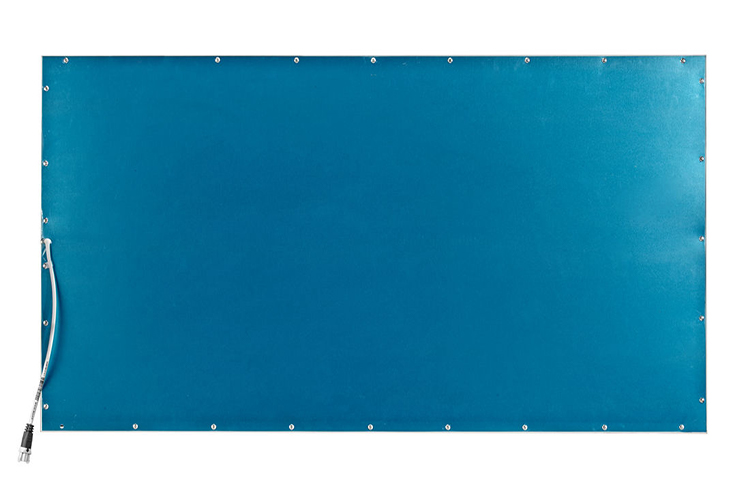

8. led Product Detail

4. LED Panel Light Application:

Frameless LED Sky Panel Light is widely used for office, hospital, bedroom, shopping mall, schools, factories, gym, hotel, anime city etc.

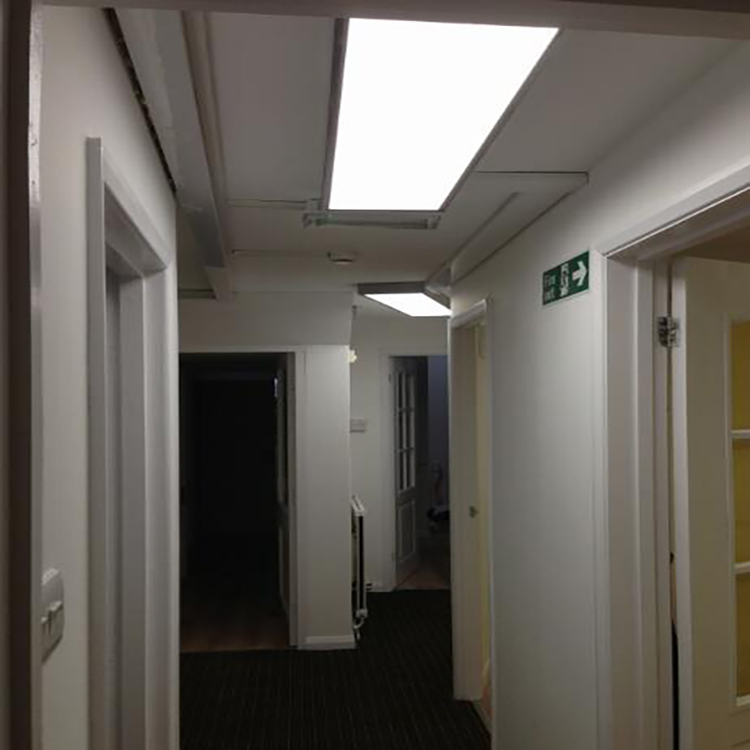

Wall Mounted Installation Project:

11. wall mounted ugr16 led panel light

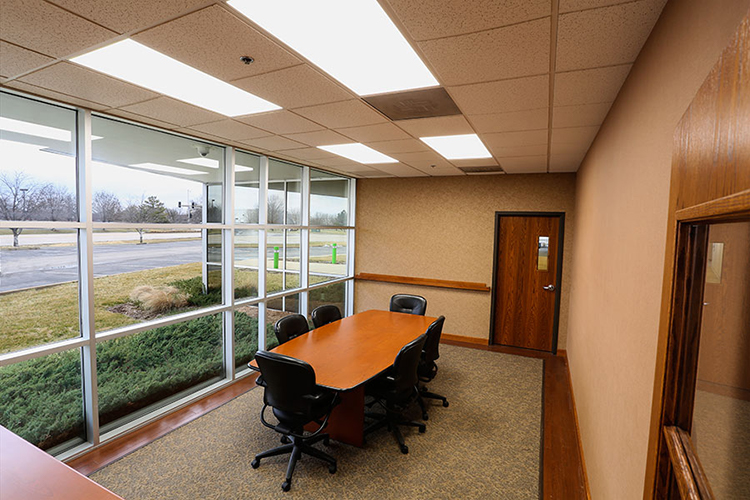

Recessed Installation Project:

10. surface mounted led panel 60x120

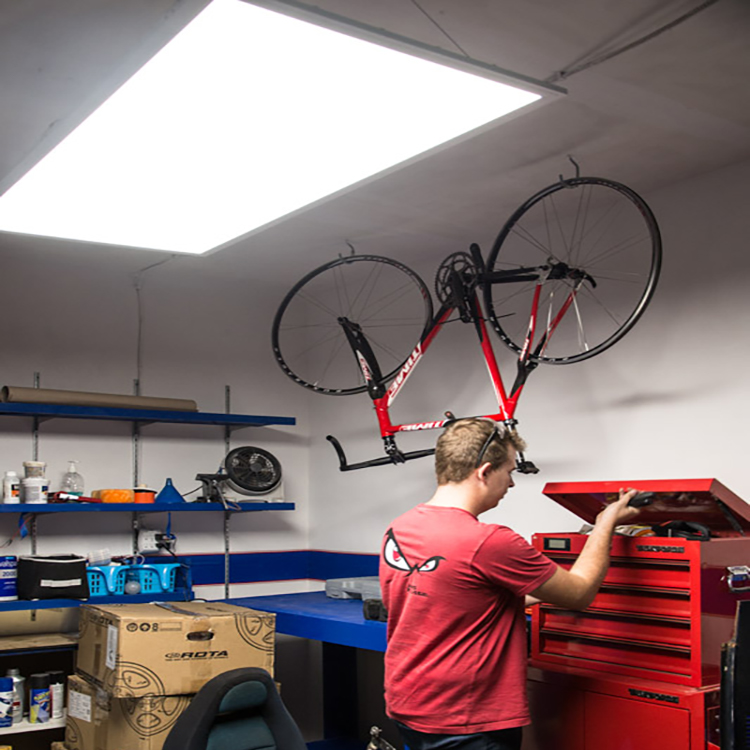

Suspended Installation Project:

9. recessed emergency led panel 2x4

urface Mounted Installation Project:

11. suspended emergency led panel 595x1195

Product detail pictures:

Factory source Portable Led Light Panel - 80W 1-10V Dimmable Emergency LED Ceiling Panel Light 60×120 – Lightman detail pictures

Factory source Portable Led Light Panel - 80W 1-10V Dimmable Emergency LED Ceiling Panel Light 60×120 – Lightman detail pictures

Factory source Portable Led Light Panel - 80W 1-10V Dimmable Emergency LED Ceiling Panel Light 60×120 – Lightman detail pictures
