High Quality Ultra Thin Rotating Round LED Panel Light 24W 9inch

This round led panel ceiling light is only 2cm thickness and LED technology, easy for install, it looks pretty style with modern design, it gives off higher brightness than the traditional incandescent bulb. Real Energy Saving and high efficiency. And rotating simple ceiling-mounted design makes installation.


  • Item: Ultra Slim Surface Rotating Round LED Panel Light
  • Power: 24W/28W/38W/48W
  • Input Voltage: AC85-265V, 50/60 HZ
  • Color Temperature: Warm / Natural / Pure White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1.Product Introduction of Ultra Thin Surface Mounted Round LED Flat Panel Light.

    • The sealed all-plastic integrated design makes it difficult for mosquitoes and dust to enter.

    The mask is made of acrylic high-permeability frosted material, side-emitting soft light technology, SMD2835 long-life chip, high brightness and non-glaring.

    • Rotating simple ceiling-mounted design makes installation, disassembly and maintenance easier. Small body, high brightness, and good texture are the three advantages of this lamp.

    • The round surface led panel is mainly used in home bedrooms, living rooms, kitchens, balconies, shops and other places.

    • Fashion design makes more grace and perfection!

    2. Product Parameter:

    Model No

    Power

    Product Size

    LED Qty

    Lumens

    Input Voltage

    CRI

    Warranty

    DPL-MT-R9-24W

    24W

    Ф230*20mm

    120*SMD2835

    2160LM

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-R12-28W

    28W

    Ф300*20mm

    160*SMD2835

    2520LM

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-R16-38W

    38W

    Ф400*20mm

    210*SMD2835

    3240LM

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-R20-48W

    48W

    Ф500*20mm

    260*SMD2835

    4320LM

    AC85~265V

    50/60HZ

    >80

    3 Years

    3.LED Panel Light Pictures:

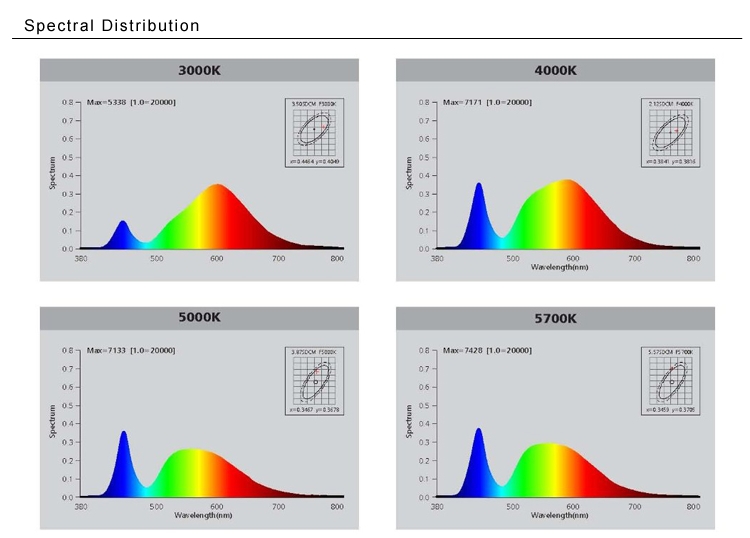

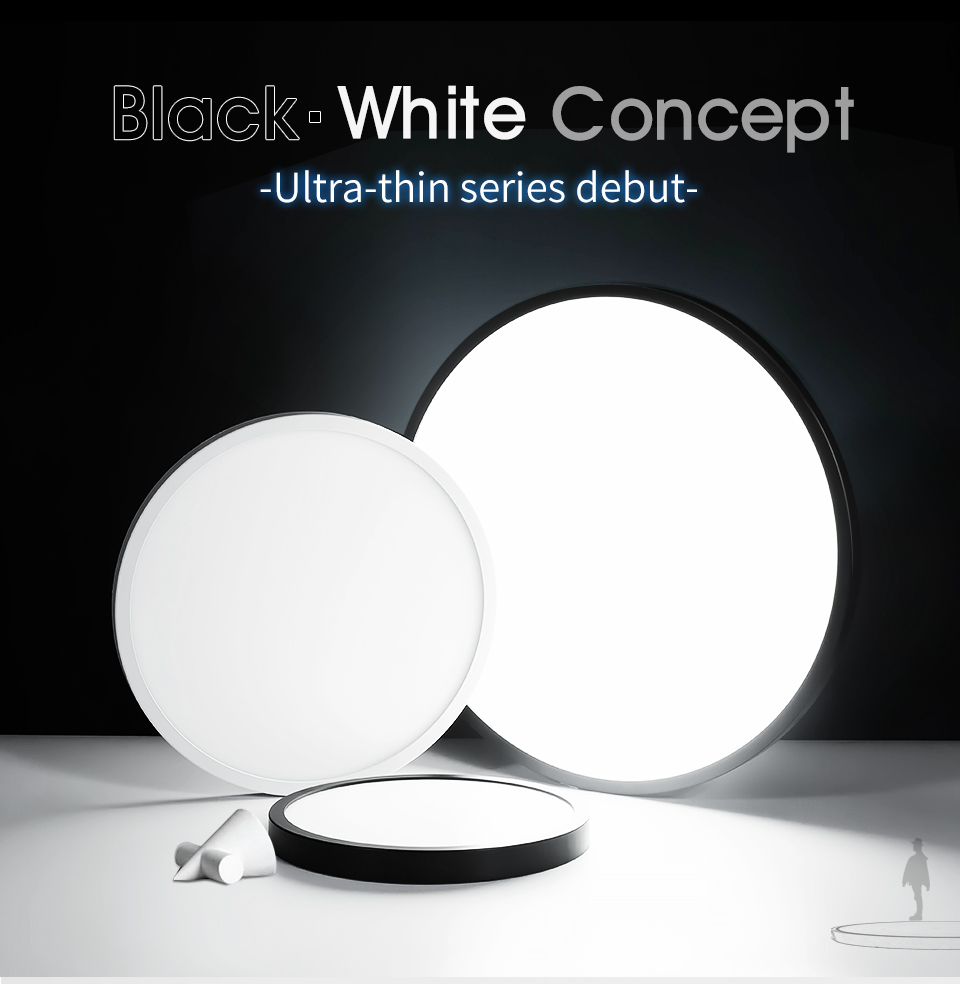

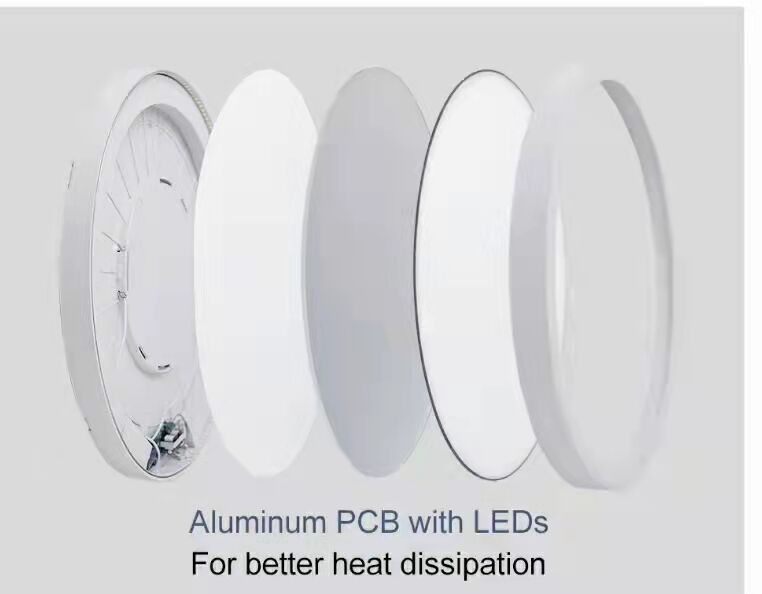

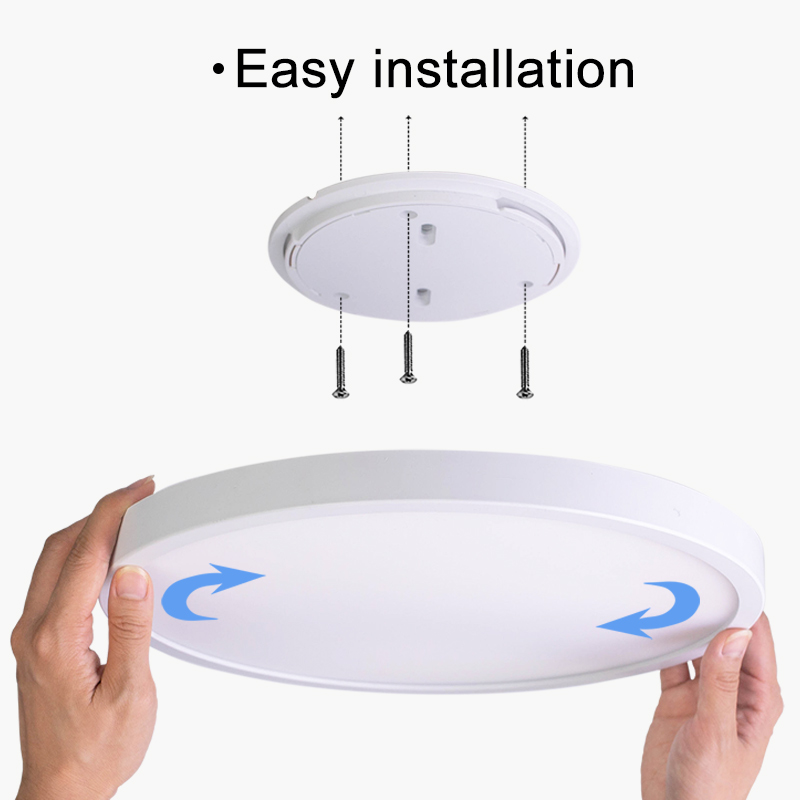

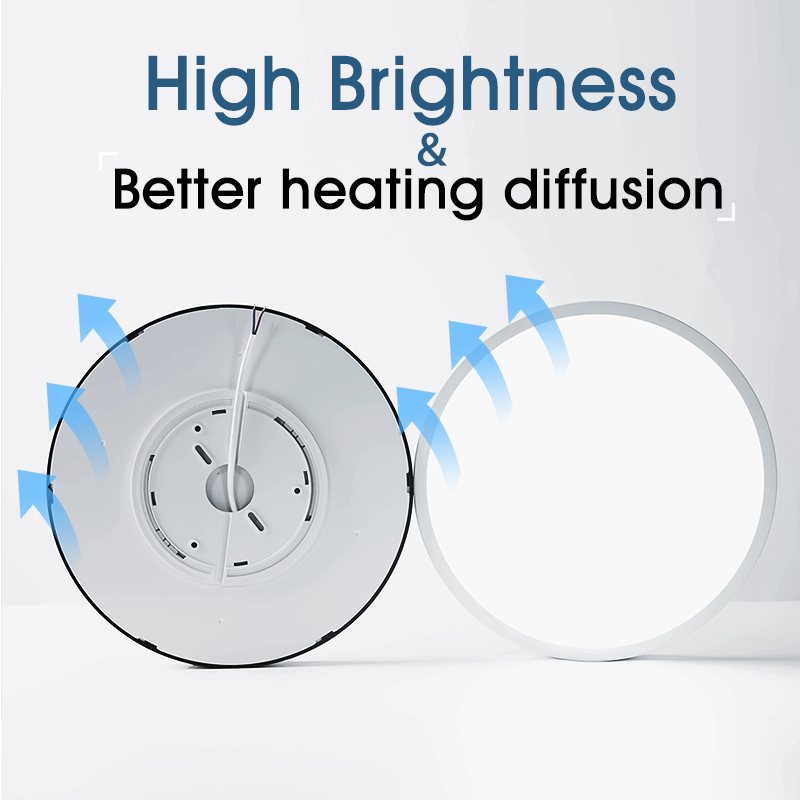

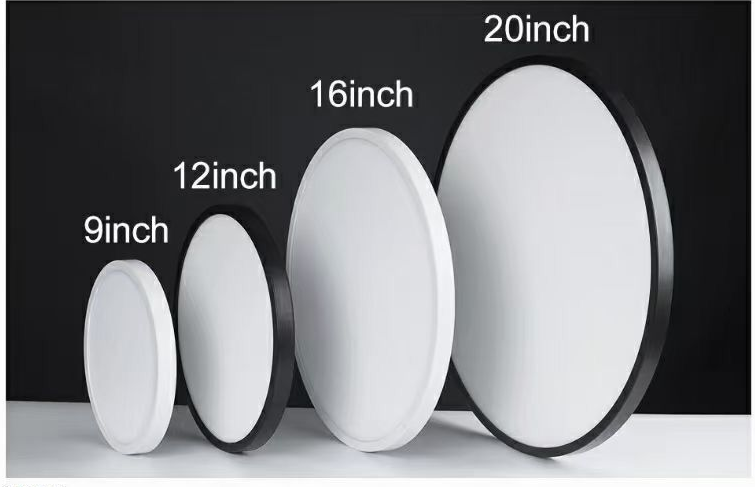

    1. surface mounting round led panel 2. different sizes 3. 400mm round surface panel light 4. specification 5. rotating round led panel 6. Dimmable Panel Down Light 7. led panel downlight

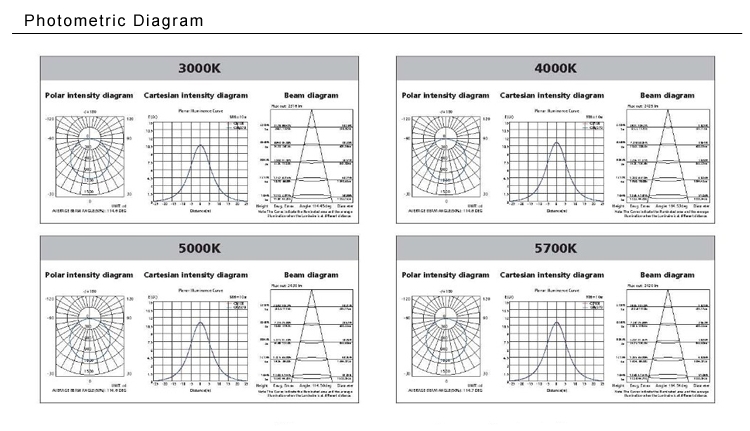

    8. pure white led flat panel light

    4. LED Panel Light Application:
    Lightman Rotating Round LED panel lights can be used in airports, parking lots, factories, production lines, family house, residential lighting, living room, dormitory, corridor, library, hospitals, school, the hall ,metro station, train station, bus station etc.

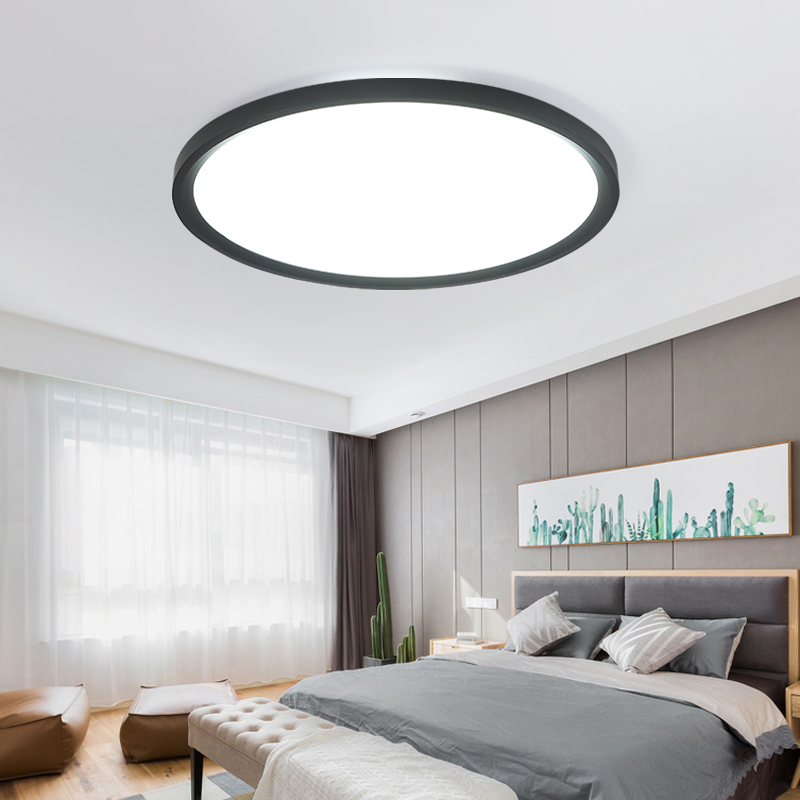

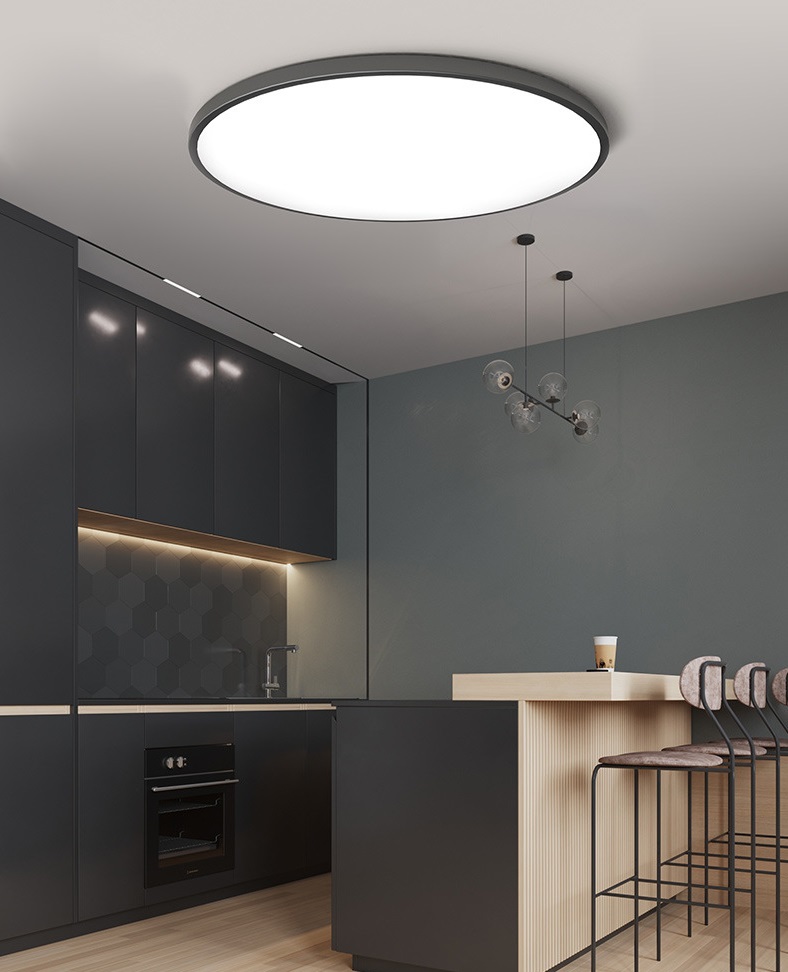

    9. surface round panel 10. 300mm surface round panel




  • Previous:
  • Next:

  • Installation Guide:

    11. installation guide

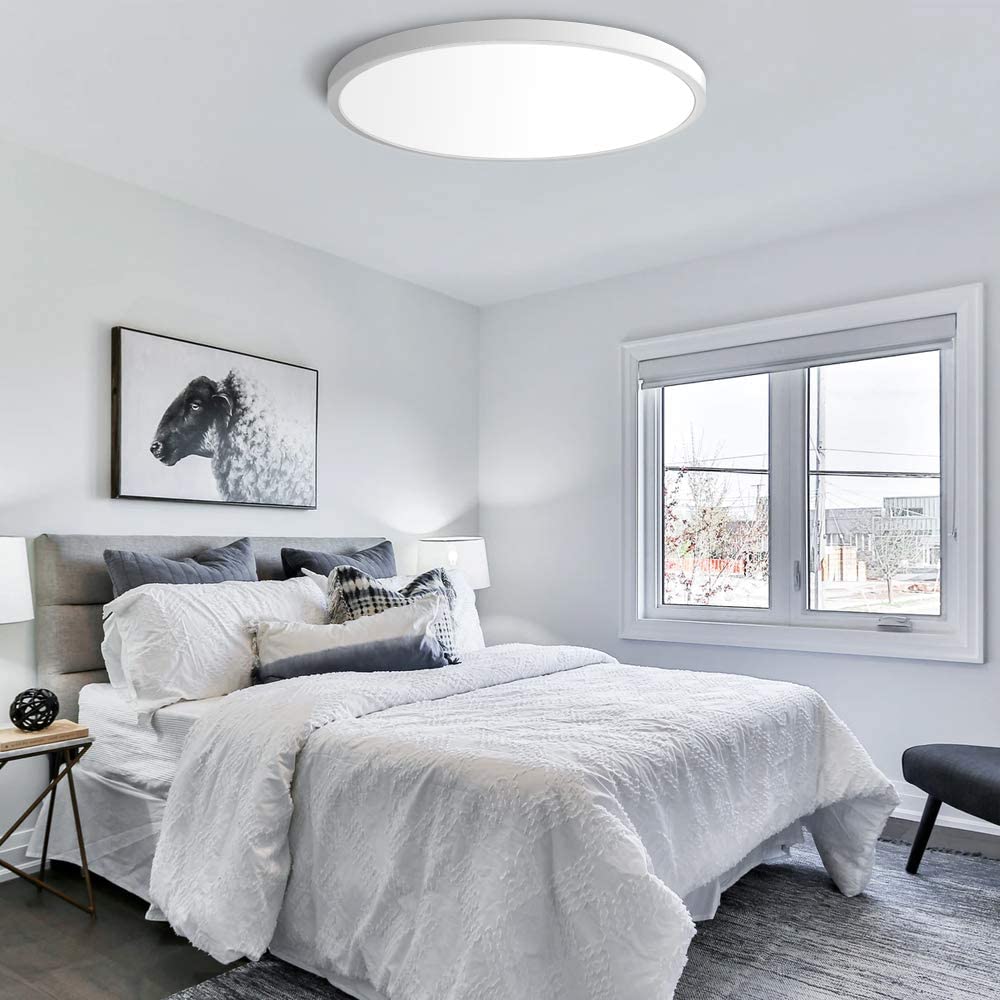

    12. round surface ceiling panel light

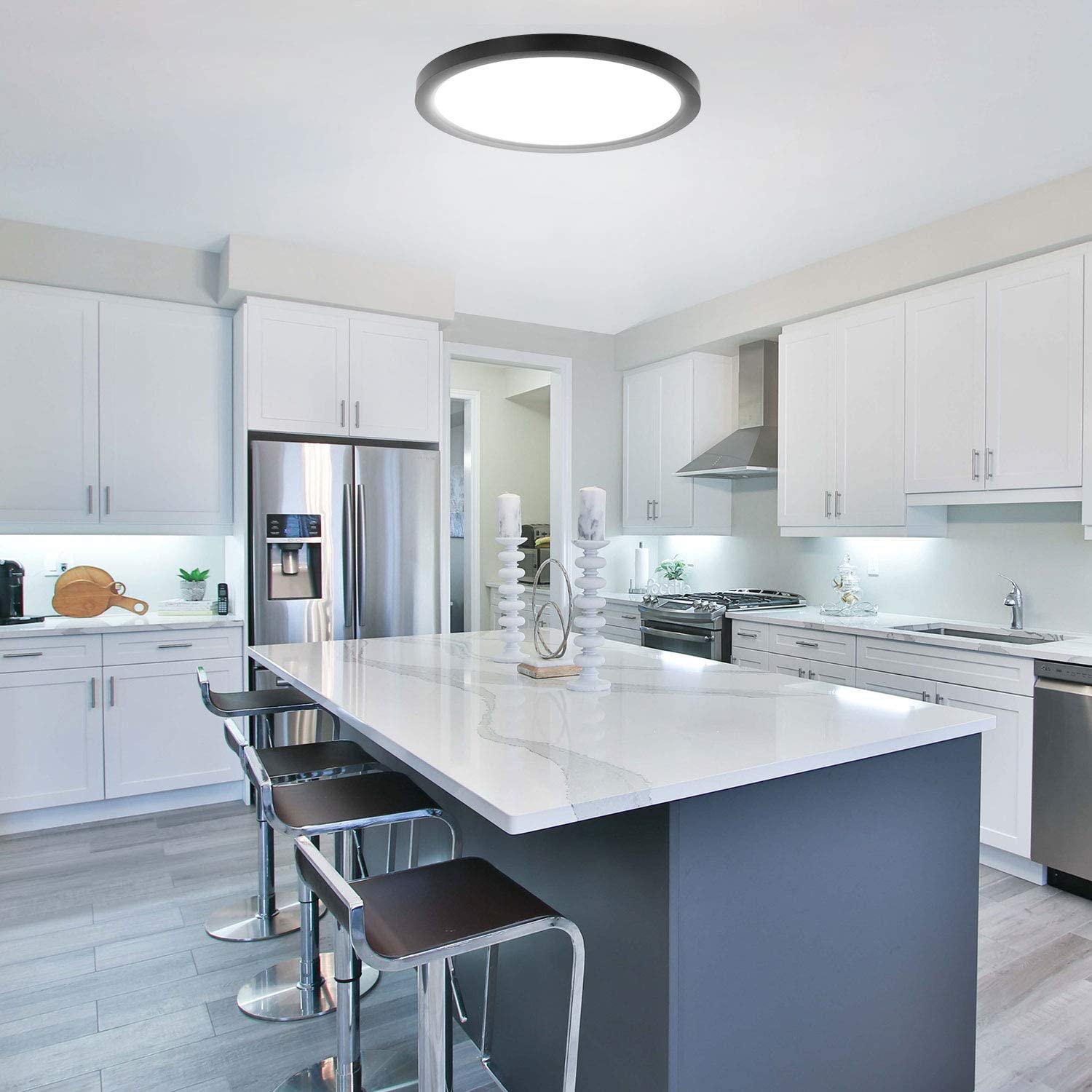

    13. 48w surface round panel light
