Indoor Lighting IP65 Waterproof Integrated LED Panel Light 62×62 With CE TUV

The IP65 integrated LED panel light is designed for applications in dusty or wet / damp environments where before this was just not possible with normal LED panels. This Panel Series is also designed to the good energy saving panel with 50,000 hours long life, and 90% uniformity across the emitting surface. It enables customers to recover initial investment quickly and greatly reduce the maintenance cost


  • Item: 62x62 IP65 Integrated LED Panel Light
  • Power: 36W /40W /60W /72W /80W
  • Input Voltage: AC220-240V/ AC85~265V
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1. Product Features of 620x620 IP65 Integrated Waterproof LED Panel Light.
    •Using aluminum alloy shell, with PS diffuser, Have good heat dissipation ability and optical effects.
    •Over 90% light transmission makes the light softly and brightly, no flickering.
    •Product quality: all products before they leave the factory after several strict examination, and has a number of safety certification.
    •Emit NO UV or IR radiation, environmentally friendly.
    •Stable durable: 3 years, from radio interference, not pollute the environment.
    •Distribute light evenly, absolutely NO bright spot or dark spot on panel.
    •Prevent lampblack, dustproof, anti-mosquito.


    2. Product Specification:


    Model No

    PL-6262-36W

    PL-6262-40W

    PL-6262-60W

    PL-6262-80W

    Power Consumption

    36 W

    40 W

    60 W

    80W

    Luminous Flux (Lm)

    2880~3240lm

    3200~3600lm

    4800~5400lm

    6400~7200lm

    LED Qty(pcs)

      192 pcs

    204 pcs

    300 pcs

    408 pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2800 - 6500K

    Color

    Warm/Natural/Cool White

    Light Efficiency (lm/w)

    >80lm/w

    Dimension

    620*620*12mm

    Beam Angle (degree)

    >120°

    CRI

     >80

    Power Factor

    >0.95

    Input Voltage

    AC85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS Diffuser

    Frame Color RAL

    Pure white/RAL9016; Silver

    IP Rating

    IP65

    IK Grade

    IK06

    Operating Temperature

    -20°~65°

    Dimmable Solution

      Dali/0~10V/PWM/Triac Optional

    Life span

    50,000hours

    Warranty

    3 Years

    3. LED Panel Light Pictures:

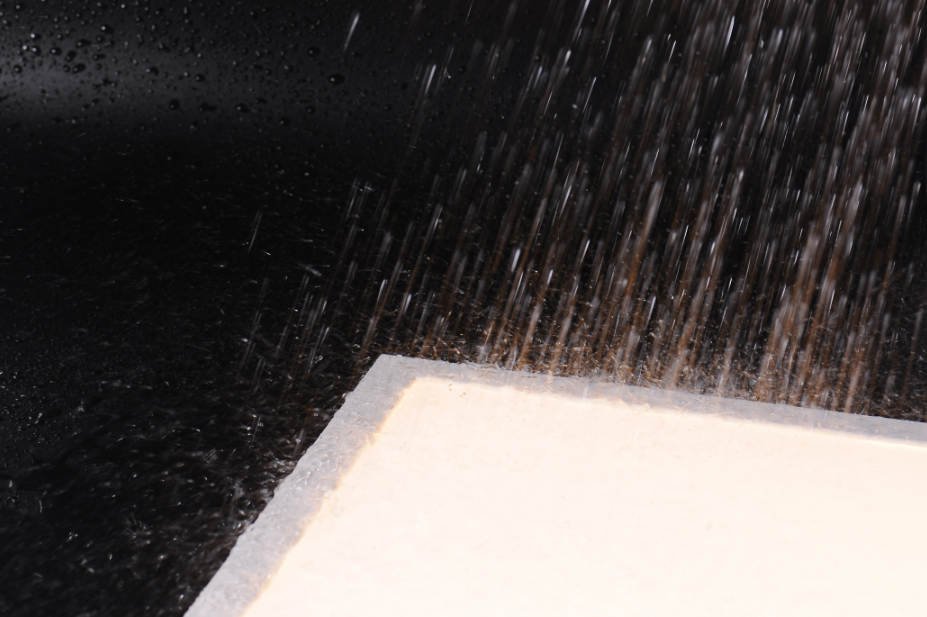

    1. IP65 led panel

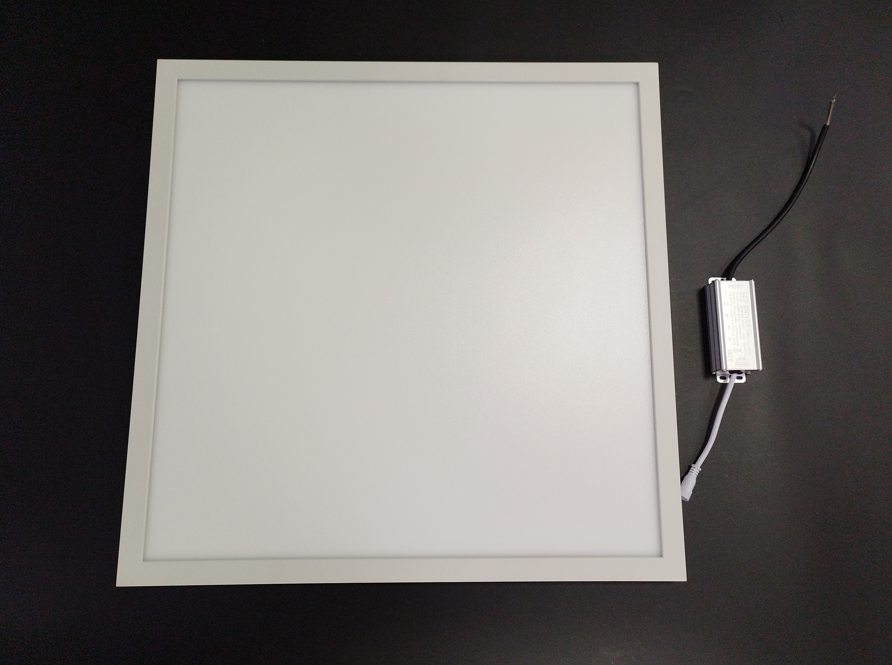

    2. IP65 led panel lamp

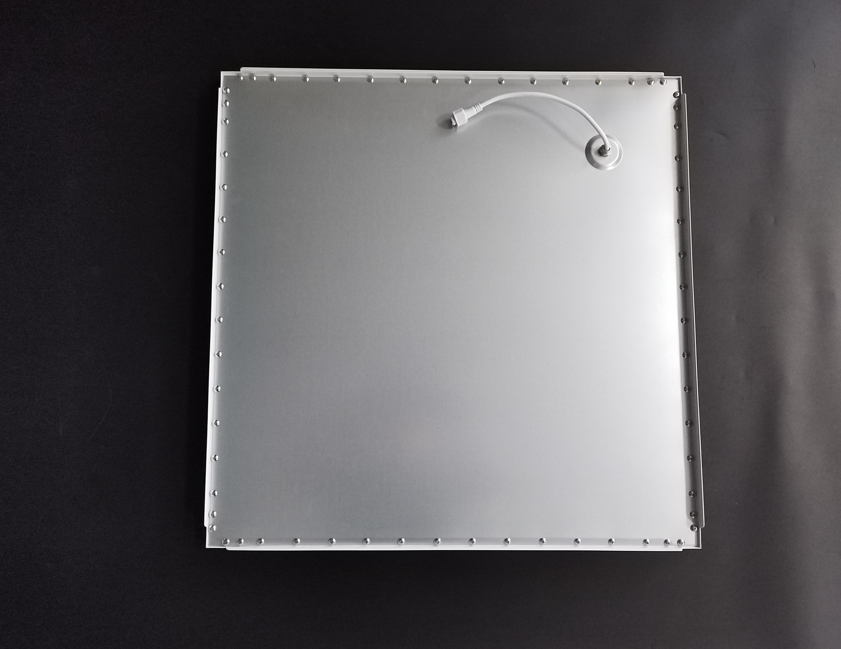

    3. ip65 wateproof led panel

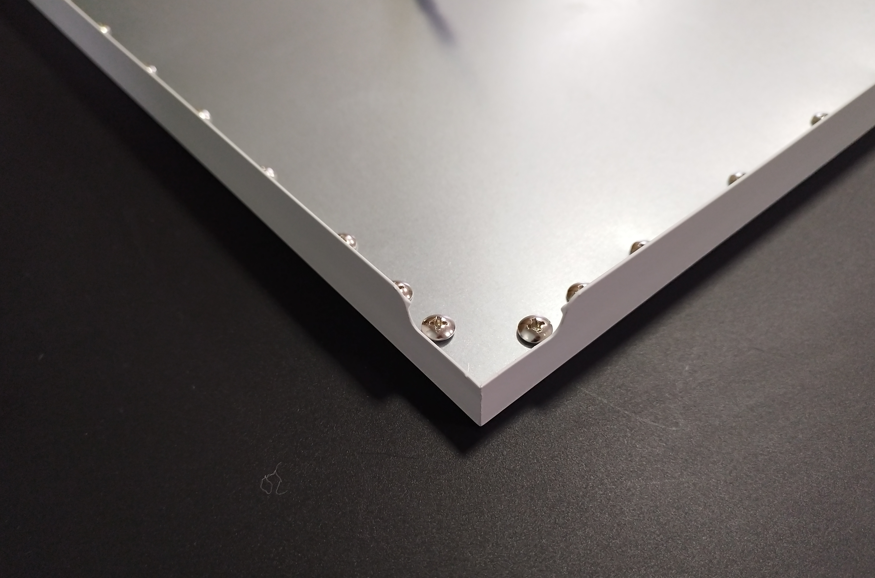

    4. ip65 rating led panel

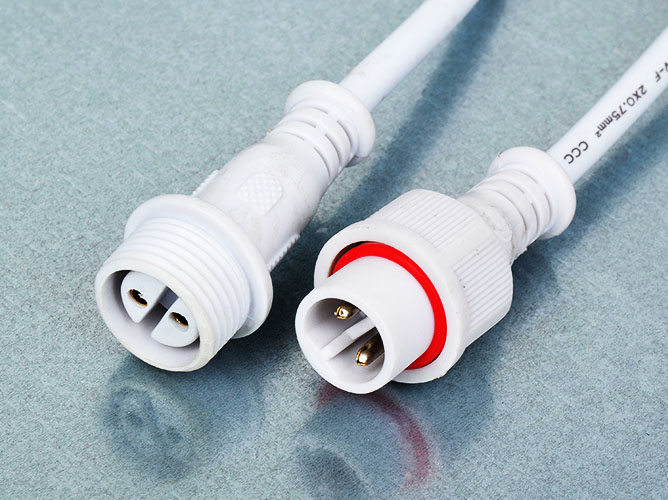

    5. IP65 Connector

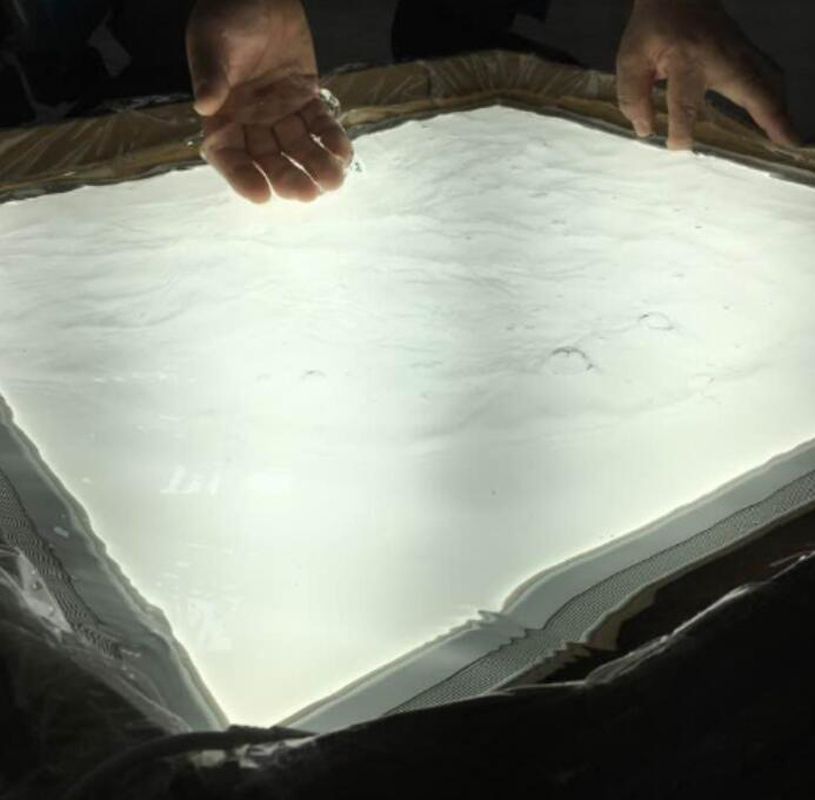

     6. Lightman Waterproof led panel light

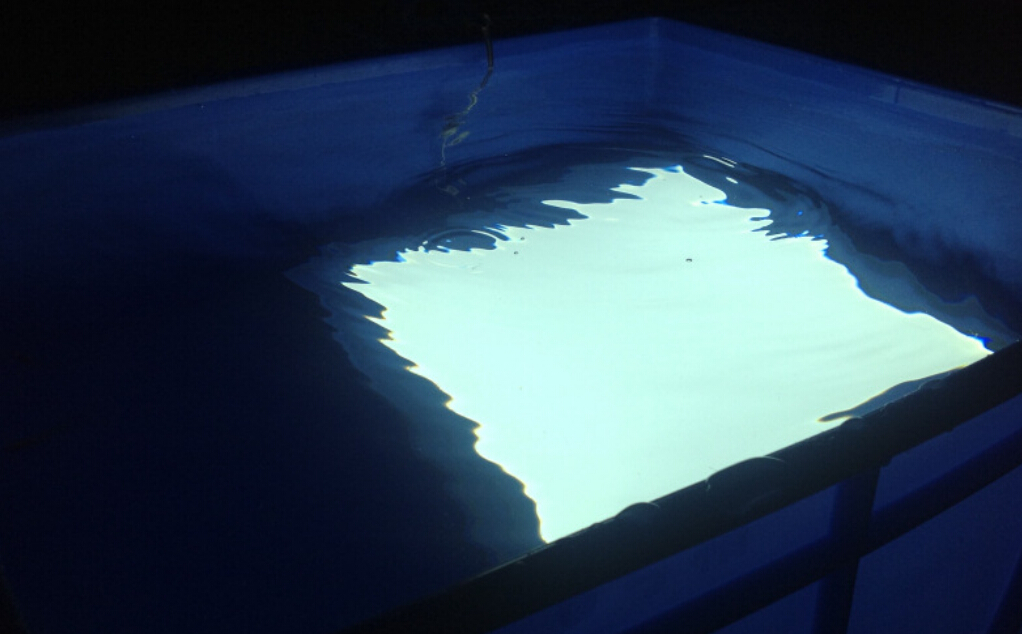

    7. ip65 wateproof led panel test


  • Previous:
  • Next:

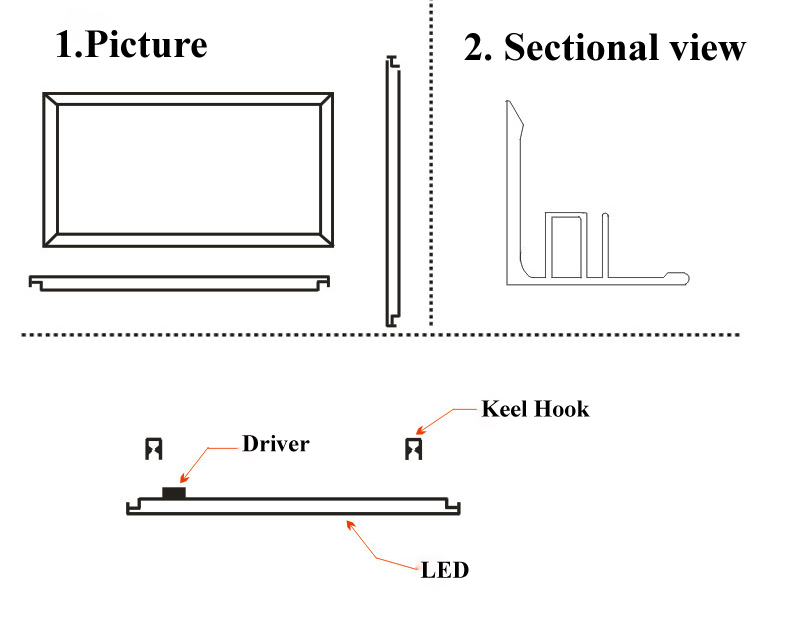

  • 8. installation guide

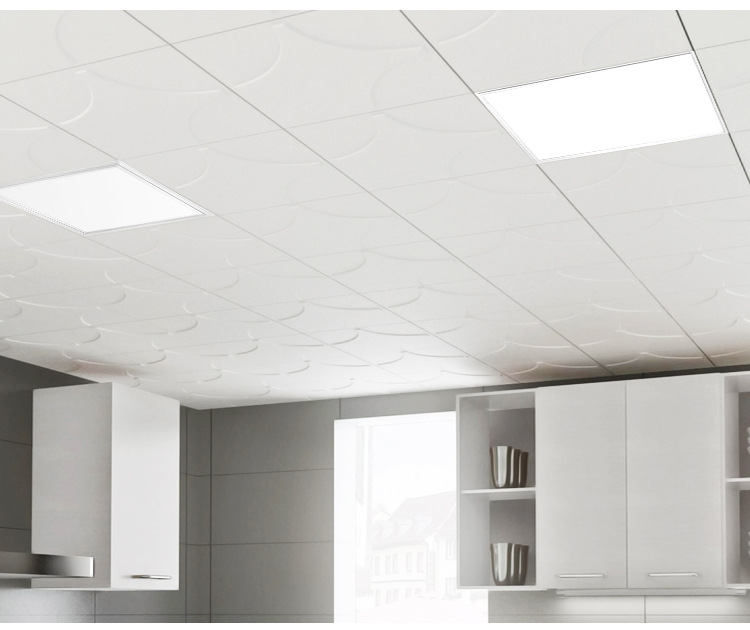

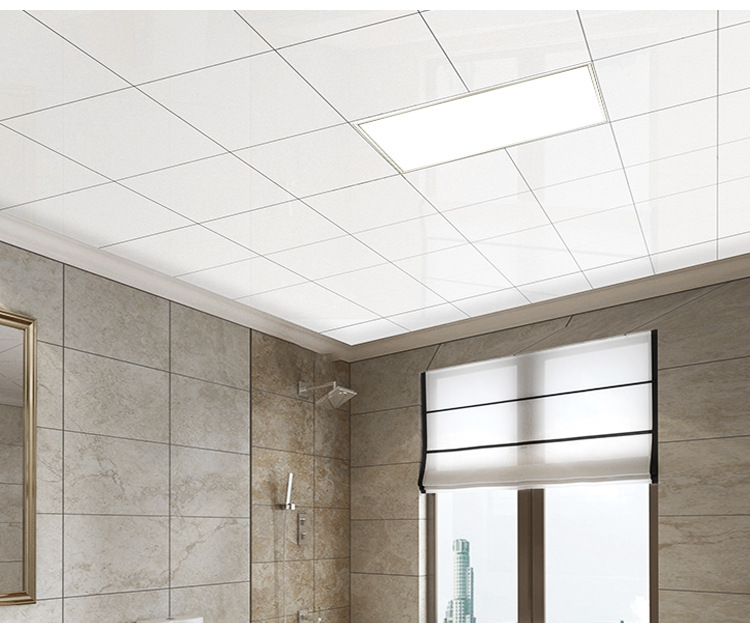

    9. 62x62 led panel light 10. 620x620 led panel
