Lifud Driver 40W 30×120 Square Narrow Frame LED Ceiling Panel Light

LED narrow frame panel light(8mm) providing uniform and harmonious light, is energy efficient and extremely sturdy and robust compared to other panels on the market. The narrow frame panel light has the added advantage of high quality driver – it is easy to fit, easy to maintain and less likely to suffer driver related faults. The driver (power supply) generates the high brightness for the frame panel light. An LED frame panel light is only as good as the driver (Lifud ). It is suitable to be used in offices, retail stores, hospitals, schools, hallways and lobbies, meeting rooms, restaurants, etc.

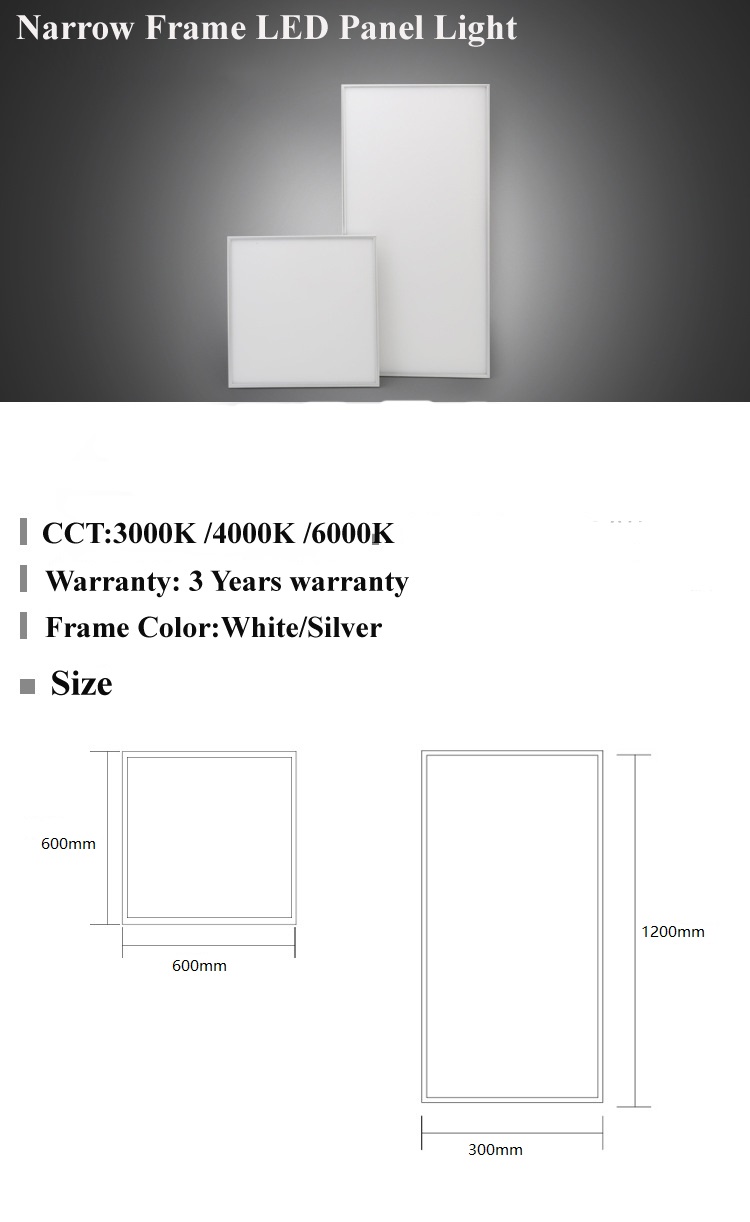

Item: Narrow Frame LED Panel Light 300x1200

Power: 40W

Input Voltage: AC85-265V

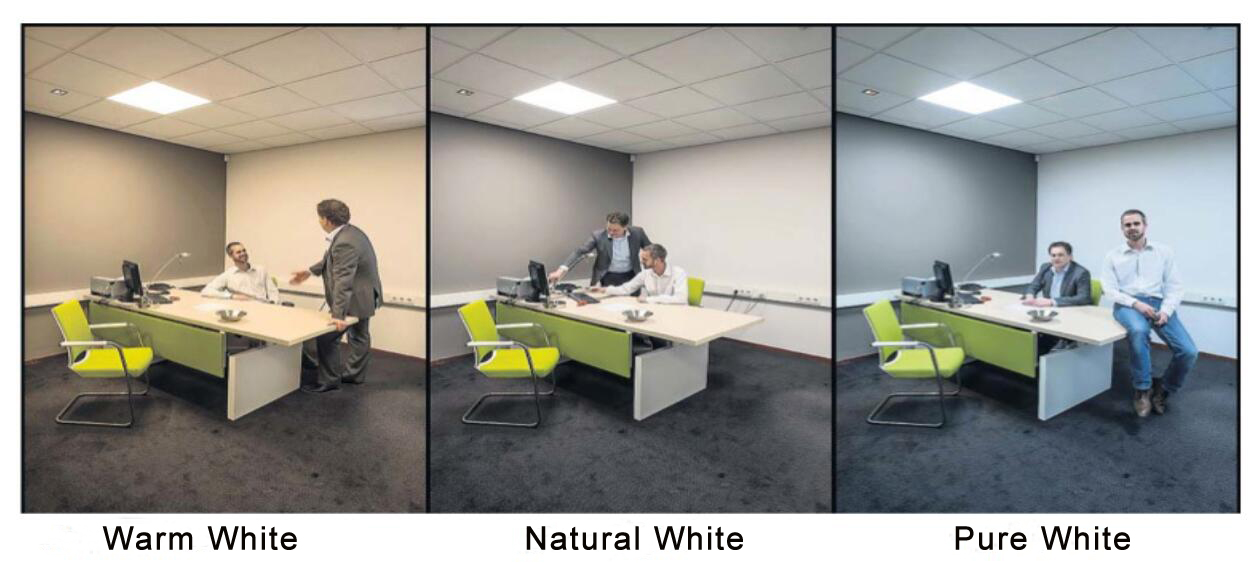

Color Temperature: Warm / Natural / Pure White

Lifespan: >50000H

Send email to us Download as PDF

Products categories

Product Detail

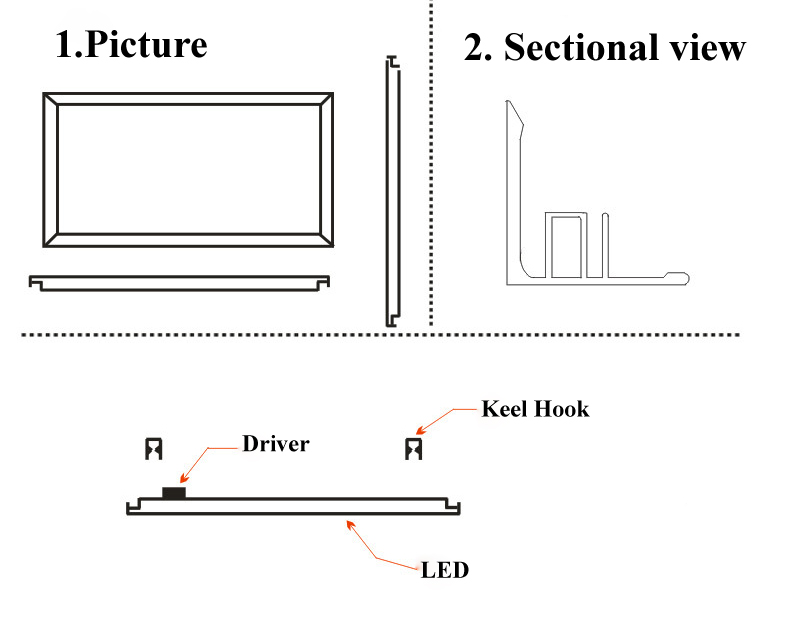

Installation Way

Project Case

Project Video

1. Product Features of Narrow Frame LED Panel Light 30x120cm.

• Our products, with invisible structure and unique appearance.

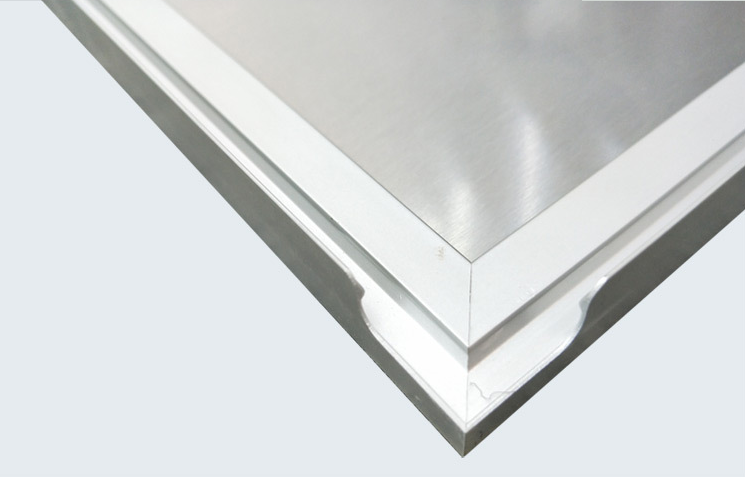

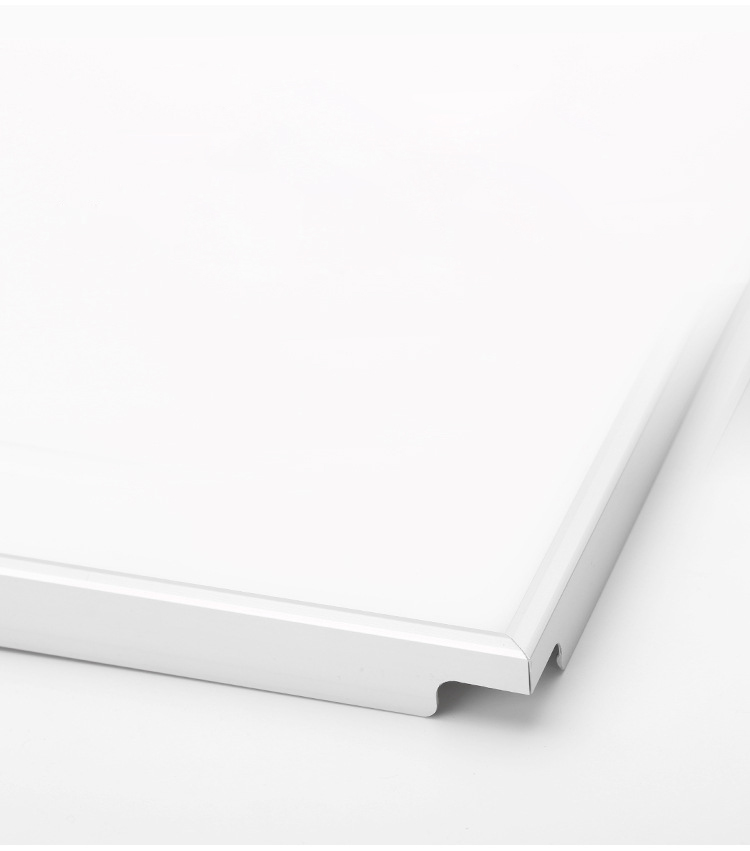

• Aluminum Narrow Frame with 8mm.and there are white color and silver color options.

• Use high brightness low decay Epistar SMD led chip with better heat dissipation.

• Use PMMA light guide plate with light transmittance up to 95%. What’s more, PMMA LGP will not turn yellow after using long years.

• With strong functional and decorative effects, It has the advantages of stability, easy to install

• Corrosion prevention, moisture proof, sound absorbing and inflaming retarding.

2. Product Specification:

Model No	Power	Product Size	Lumens	Input Voltage	CRI	Warranty
PL-6060-40W	40W	600*600mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
PL-30120-40W	40W	300*1200mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
PL-10120-12W	12W	100*1200mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
PL-20120-24W	24W	200*1200mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
PL-3060-24W	24W	300*600mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
PL-3030-12W	12W	300*300mm	90-100lm/w	AC85~265V 50/60HZ	>80	3 Years
