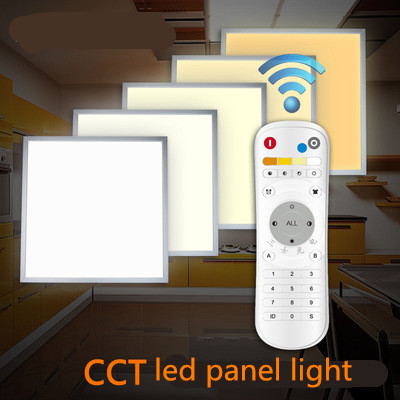

CCT dimmable led panel light adopts constant current solution to adjust the ‘Color’ of the white light from 3000K to 6500K and meanwhile with brightness dimming function. It can control simultaneously with any number of led panel lights by just one RF remote control. And one remote can setup 99 groups led panel light, and each group has no limit for panel light quantity. Stepless adjusting 4-step fast adjusting flicker free; support light sensor to dim brightness automatically, support setup time to turn on/off and support cyclical mode, save mode.

How to use the CCT controller?

1. Within 3 seconds after the lamp is lit up, press the number key “1″, then press the “ID” key,
then press the number key “1″ again and press the “ID” key again as the first time. If the code is matched successfully, then the light will flash one time; And then you need to turn off the panel lights first, and turn on it again. Then the remote controller can control the light.

2. If you want to set the second light or second group lights, you can press the number key “2″, then press the “ID” key,
then press the number key “2″ again and press the “ID” key again as the the same. This is to set the group number for the corresponding panel lights;

3. When you want to control the number “1″ light or number “1″ group lights, just press the “1″ number key to adjust the brightness or color temperature.
