OEM DEM 18W 20W 36W 40W 30×60 Recessed Ceiling LED Panel Light

LED Recessed flat panel lights are applied with high quality reflective panels and sealed design. The diffuser is made from imported PS or PMMA material, it will enable light soft. And light guide plat is made of imported PMMA, it will transmit the light from side to middle. LED recessed panel light is a idea choice for customers.


  • Item: 300x600 LED Panel Light
  • Power: 18W /20W /36W /40W
  • Input Voltage: AC85~265V, 50/60HZ
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product video

    1. Product Introduction of 600x300 LED Panel Light.

    • LED Panel Light uses alumina wire drawing frame, manual welding, strong and beautiful.

    • Led panel light is able to protect eyes , small power , highlight ; no dark space; no stroboflash.

    • Full sealed , to prevent the insect and dust.

    • Non-dimming, triac dimming, 0~10v dimming, cct dimming, DALI, Meanwell, UGR

    • We will provide 3 years warranty or 5 years warranty.

    2. Product Specification:

    Model No

    PL-3060-18W

    PL-3060-20W

    PL-3060-36W

    PL-3060-40W

    Power Consumption

    18W

    20W

    36W

    40W

    Luminous Flux (Lm)

    1440~1620lm

    1600~1800lm

    2880~3240lm

    3200~3600lm

    LED Qty (pcs)

    96pcs

     100pcs

    192pcs

    204pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2700 – 6500K

    Color

    Warm/Natural/Cool White

    Dimension

    612*312*12mm

    Cutting Hole:595*295mm

    Beam Angle (degree)

    >120°

    Light Efficiency (lm/w)

    >80lm/w

    CRI

     >80

    Power Factor

     >0.95

    Input Voltage

    AC 85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS diffuser

    IP Rating

    IP20

    Operating Temperature

    -20°~65°

    Life span

    50,000hours

    Warranty

    3 Years



    3. LED Panel Light Pictures:

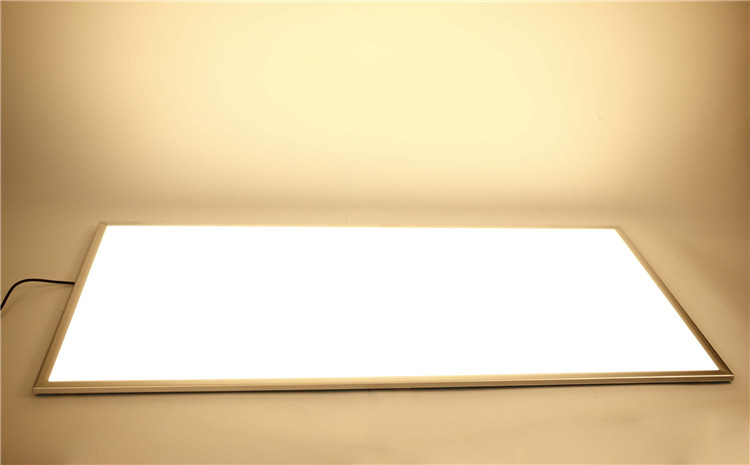

    1. 30x60 led panel light

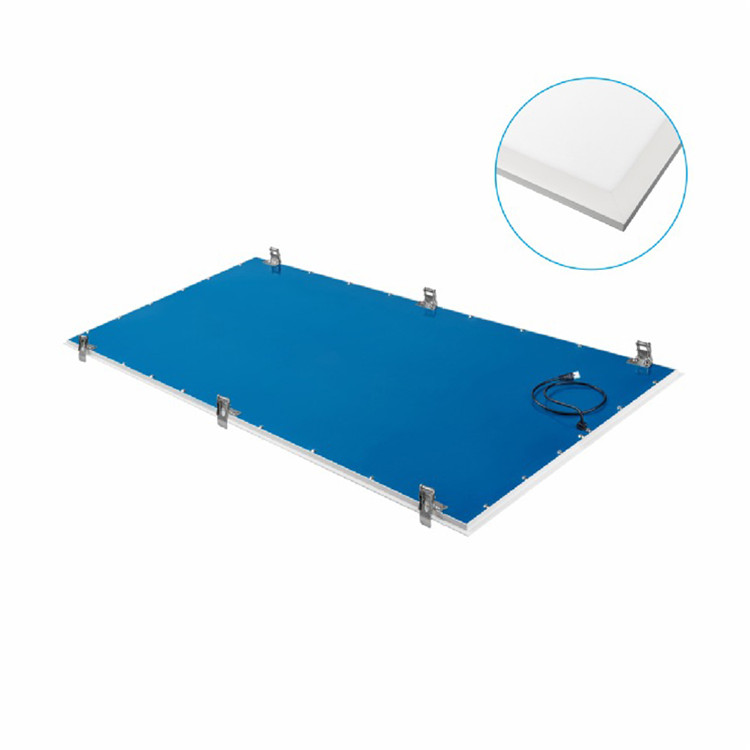

    2. Spring embeded led panel light 600x600

    3. 30x60 embedded led panel

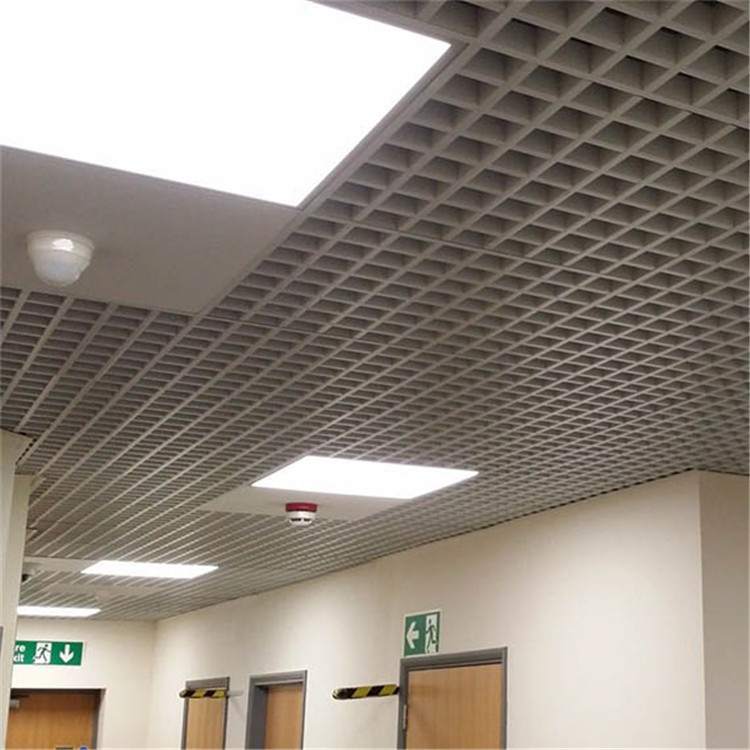

    4. led 600x600 ceiling panel light

    5. 600x600mm LED Panel Light in Office

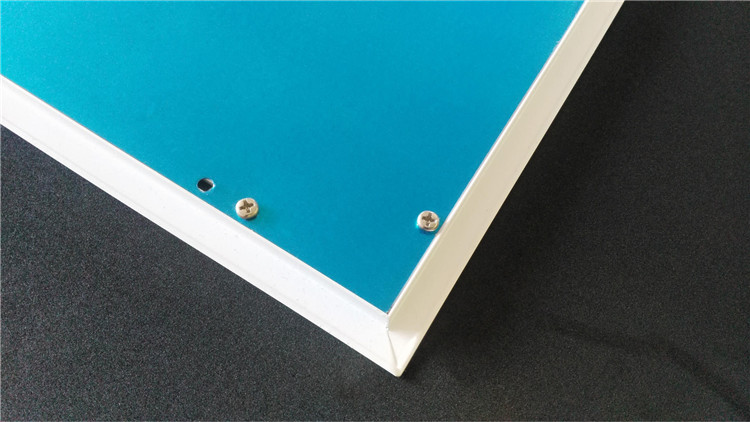

    6. led 60x60-Product Detail

    7. led 595x595-Product Detail

    4. LED Panel Light Application:

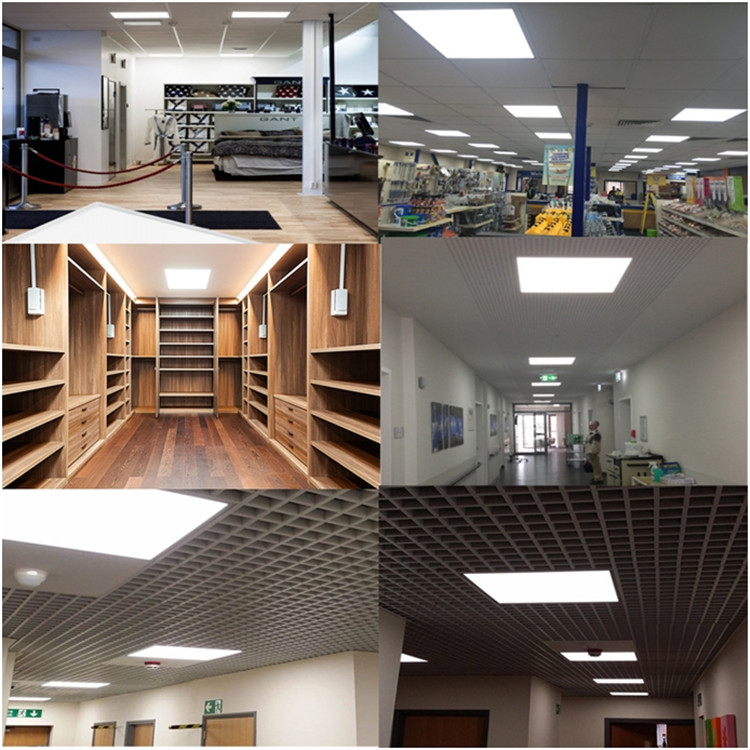

    LED panel light is widely used for Factories, Hospital Lighting, Warehouse, Supermarket Lighting, Schools, offices, Residential Area Lighting, Hotels, Conference, Meeting rooms Lighting etc.

    8. led panel light fixtures


  • Previous:
  • Next:

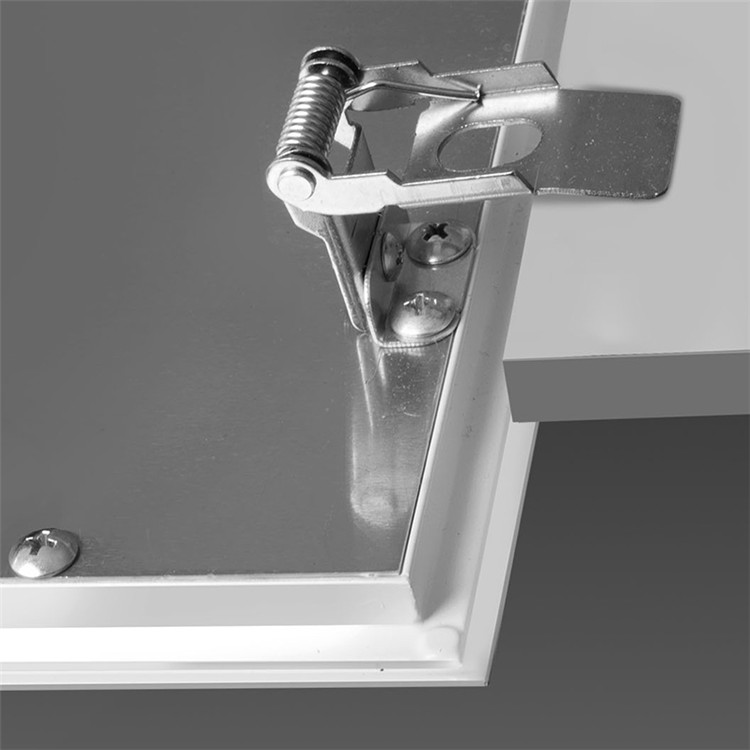

  • Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size.  9. Spring Clip Installation

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    01

    X 4

    X 6

    02

    X 4

    X 6


    10. 30x60 led panel

    Office Lighting (Germany)

    11.ultra thin led panel

    Company Lighting (Germany)

    12. 30x60 led flat panel light

     Shoes Store Lighting (USA)

    13. 60x120 led panel lighting

    Conference Room Lighting (USA)
