OEM/ODM Factory Ceiling Led Panel Light - Germany Sound &Light Sensor LED Ceiling Mounted Panel Light 62×62 – Lightman Detail:

1. Product Features of 620×620 Sound & Light Sensor LED Panel Light .

•Sound & light sensor led panel light adopts edge-lit solution with high brightness, even light at a fraction of the cost of traditional fluorescent light fixtures.

•Sound sensor led panel light use high quality Epistar SMD2835 chips with low energy consumptions and long lifespan.

•With LEDs located in the edges of the fixture and directed with a lens, the whole panel emits even uniform light all over the surface and looks very contemporary.

•LED Edge-Lit panels are universal and can be used in commercial and residential applications. Great for offices, stores, hospitals, schools, hotels, etc. Our LED panels are easy to install and maintenance-free

2. Product Specification:

Model No

PL-6262-36W

PL-6262-40W

PL-6262-60W

PL-6262-80W

Power Consumption

36W

40W

60 W

80W

Luminous Flux (Lm)

2880-3240lm

3200-3600lm

4800-5400lm

6400-7200lm

LED Qty(pcs)

192pcs

204pcs

300pcs

432pcs

LED Type

SMD 2835

Color Temperature (K)

2700 – 6500K

Color

Warm/Natural/Cool White

Dimension

620x620x10mm

Beam Angle (degree)

>120°

Light Efficiency (lm/w)

>80lm/w

CRI

 >80

Power Factor

 >0.95

Input Voltage

AC 85V - 265V/AC220-240V

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PS diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Dimmable

Optional

Life span

50,000hours

Warranty

3 Years or 5 Years

3. LED Panel Light Pictures:

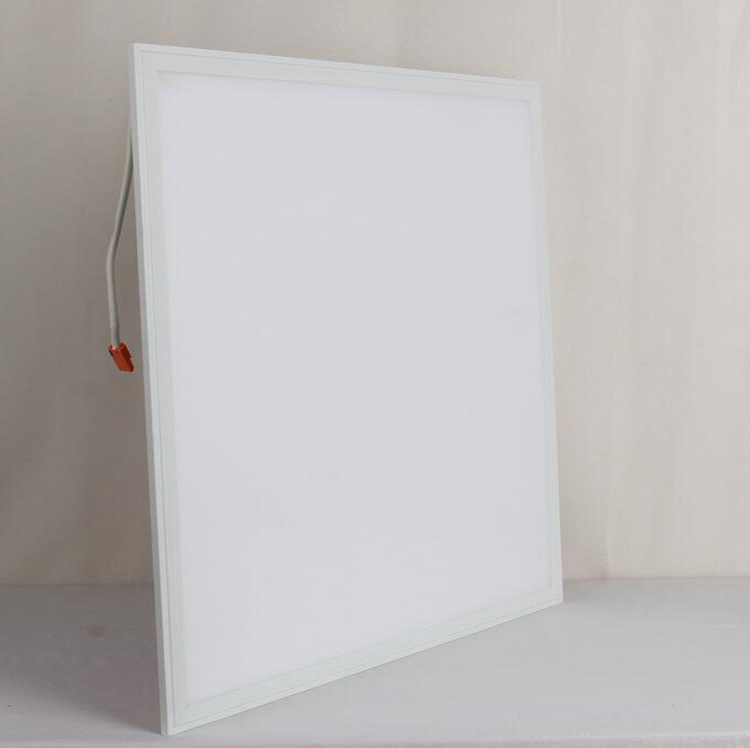

1. led panel light 600x600
2. white frame  600x600 led panel light

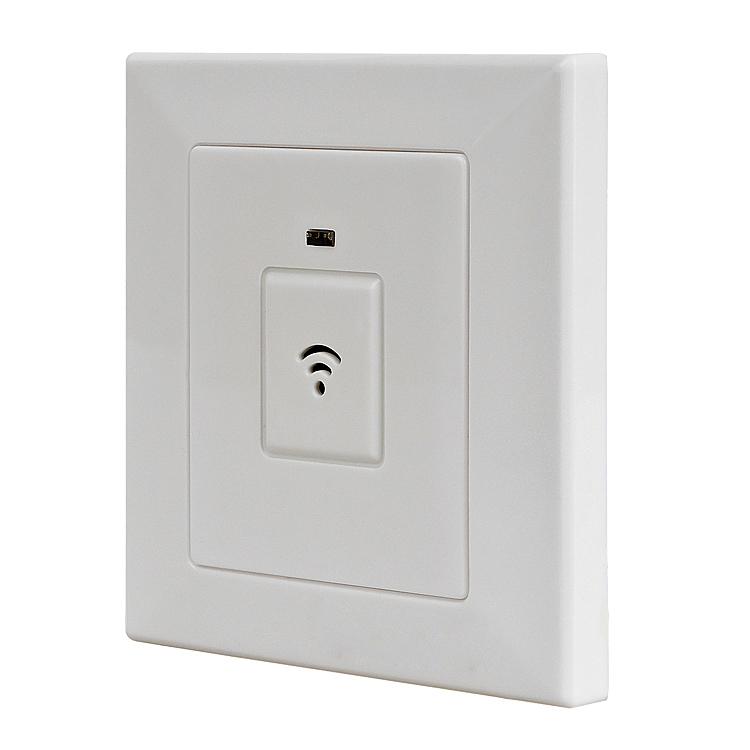

3. sound sensor switch

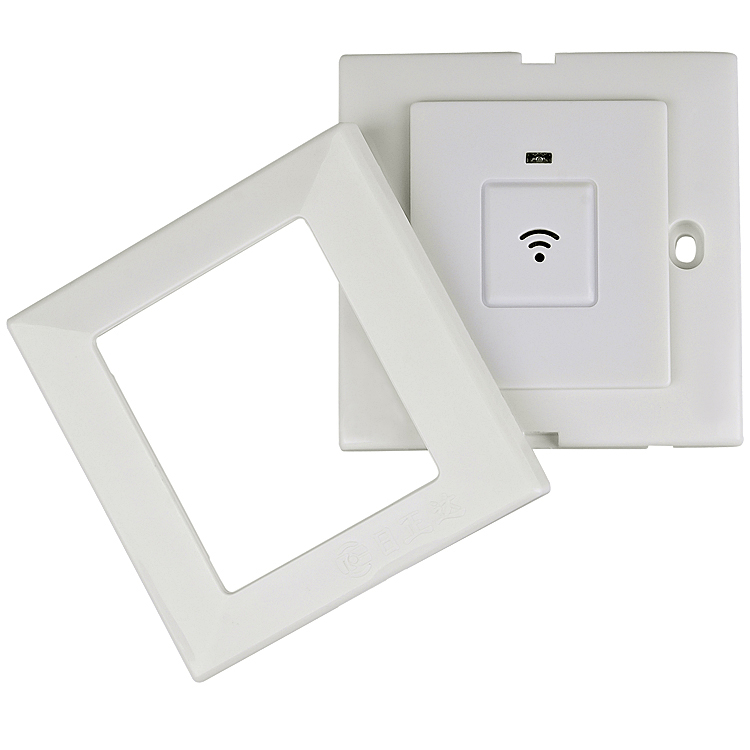

4. sound light switch for led panel light

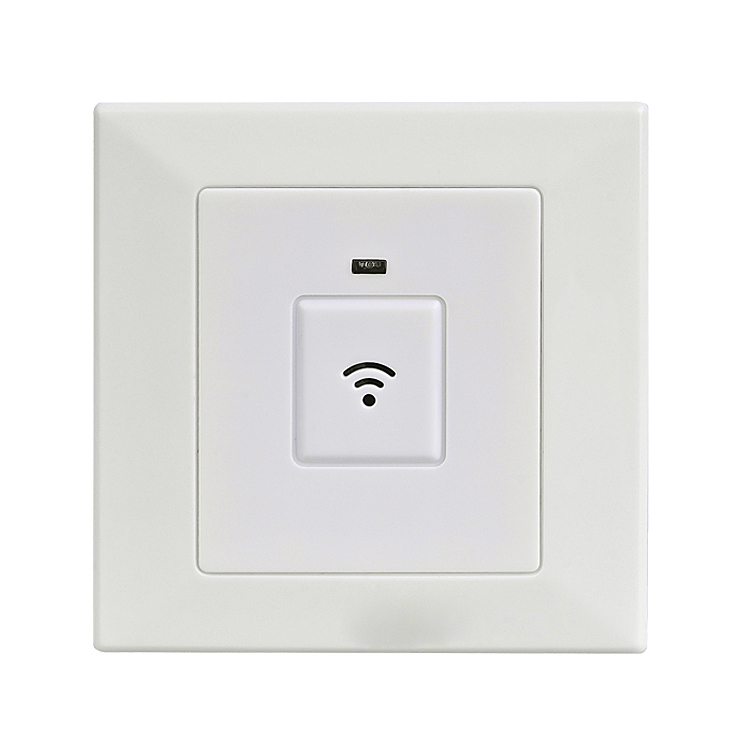

5. sound sensor switch for 60x60 led panel

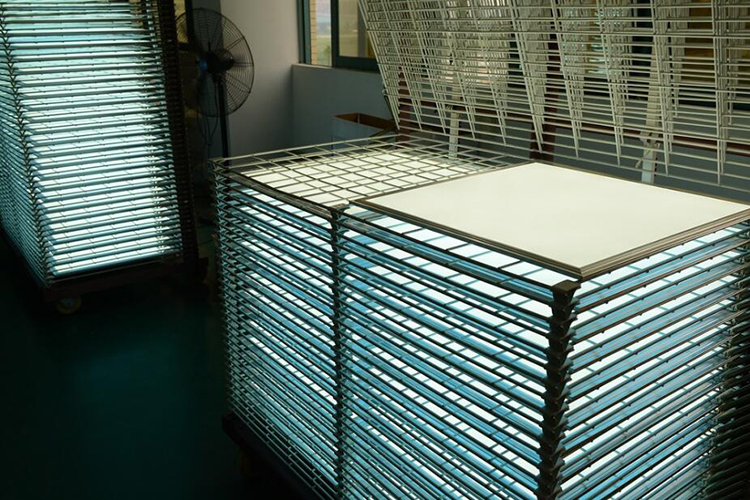

6. LED Panel Light Aging Testing

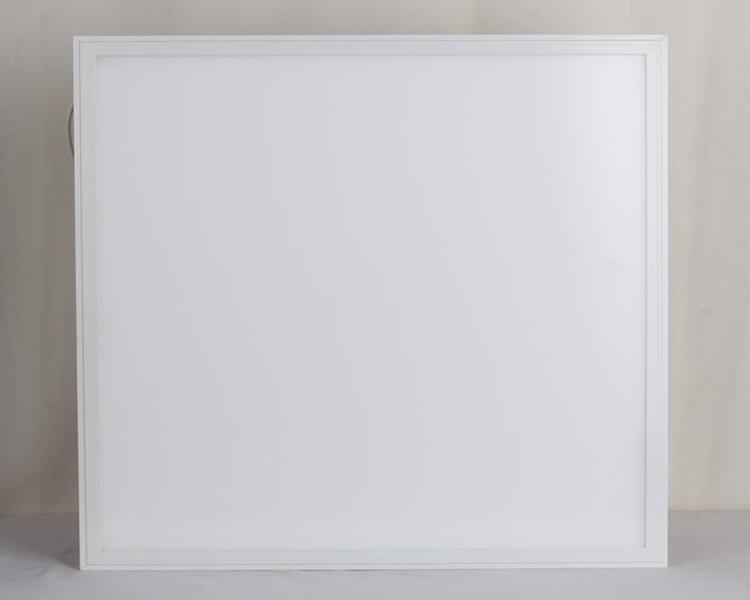

7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

   Apply to the court, the passage, the corridor, the stairs, the depot, the bathroom, the toilet ,children room, and so on. Its the embodiment of real state management and building intellectualization.

Recessed Installation Project:

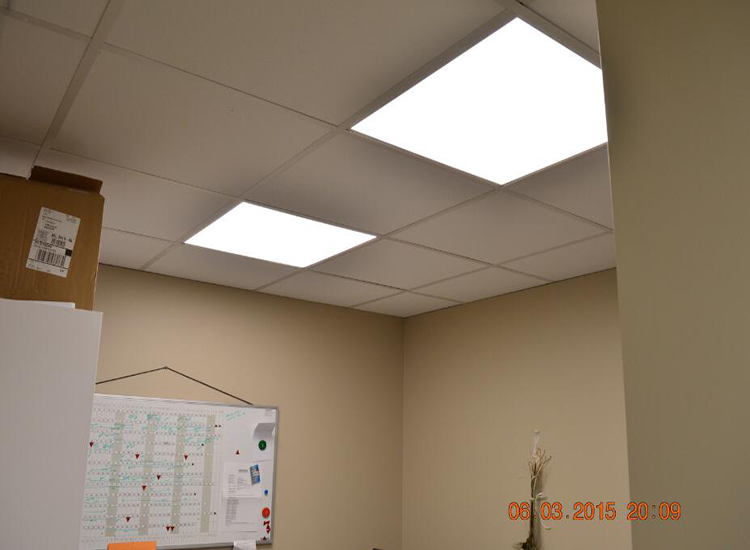

7. recessed led panel installation example

Wall Mounted Installation Project:

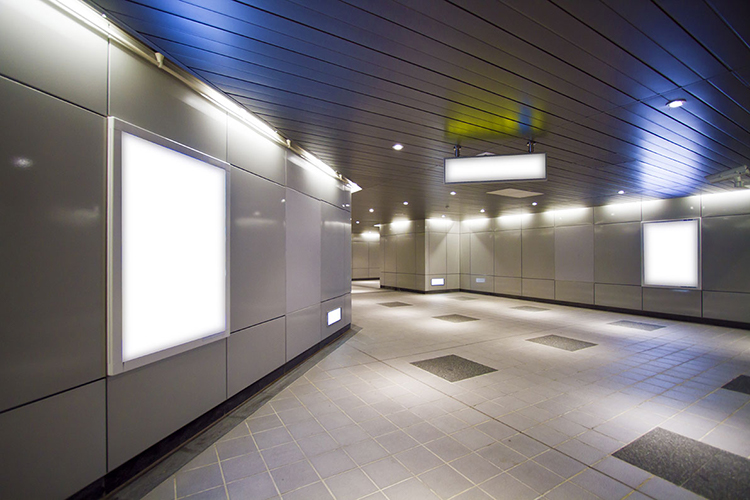

10. wall mounted led panel installation example

Suspended Installation Project:

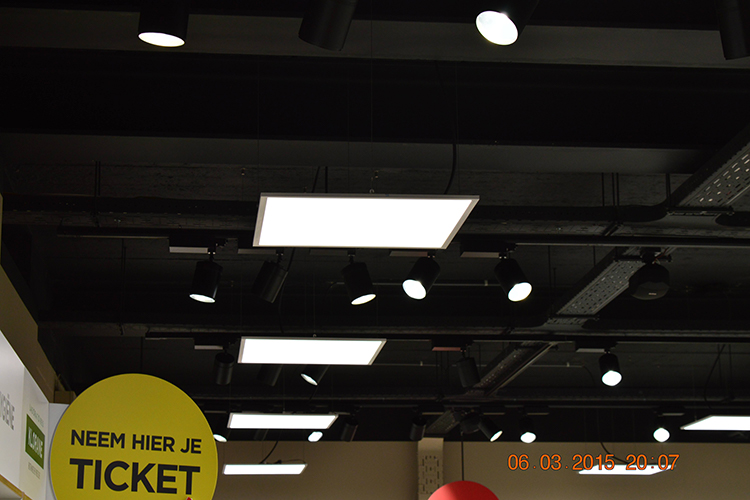

9. suspended led panel installation example

Surface Mounted Installation Project:

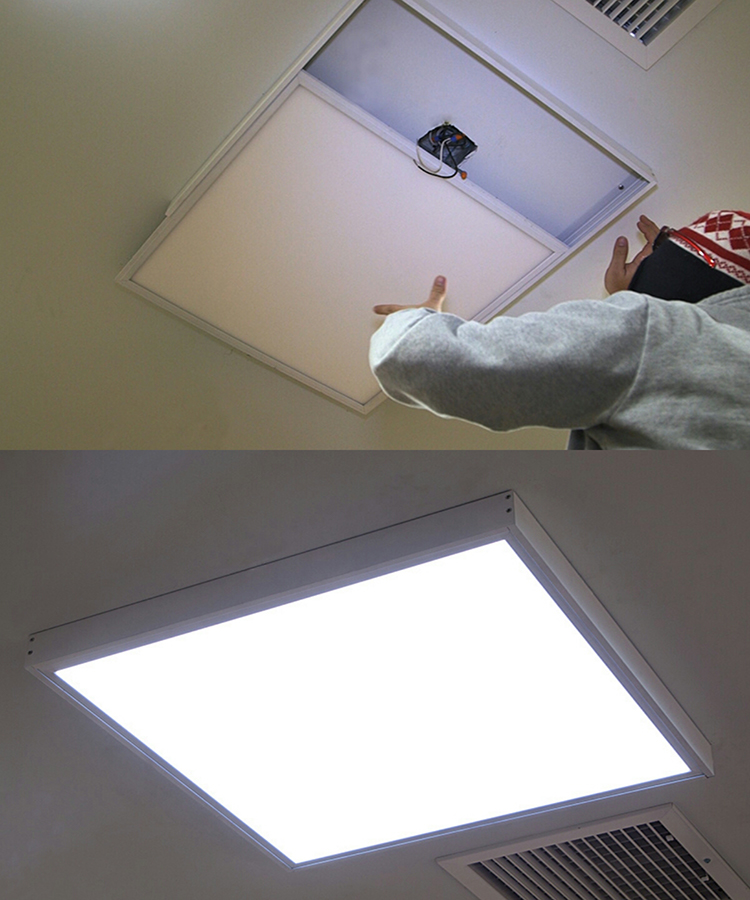

8. surface mounted installation example


Product detail pictures:

OEM/ODM Factory Ceiling Led Panel Light - Germany Sound &Light Sensor LED Ceiling Mounted Panel Light 62×62 – Lightman detail pictures

OEM/ODM Factory Ceiling Led Panel Light - Germany Sound &Light Sensor LED Ceiling Mounted Panel Light 62×62 – Lightman detail pictures

OEM/ODM Factory Ceiling Led Panel Light - Germany Sound &Light Sensor LED Ceiling Mounted Panel Light 62×62 – Lightman detail pictures
