Personlized Products Led Rgb Panel - Prismatic Diffuser 30×120 Recessed Anti-Dazzle UGR19 LED Panel Light 295×1195 – Lightman Detail:

1.Product Introduction of 300mmx1200mmUGR<19 LED Panel Light.

• Design and use of the protection angle mirror coating technology to achieve the effect of anti-glare, ensures ugr19 led panel light can effectively reduce the harm to the workers’ eyes, avoid the sense of uncomfortable and tired.

• The structural design of the 300×1200 led panel light multiple anti-vibration and high-strength alloy housing, ensure the lamp safety and long-term work in the roadbed, bridges, tunnels, and high frequency vibration environment.

• Special surface coating and sealing treatment ensures the 36w 40w 48w etc led panel light worked normally in the humid, high temperature and other harsh environment.

• The power factor of the 30x120cm led panel light is more than 0.95, a high luminous efficiency, good light transmission, as long as 50, 000 hours lifespan.

2. Product Parameter:

Model No

PL-30120-36W-UGR

PL30120-40W-UGR

PL-30120-48W-UGR

PL-30120-54W-UGR

Power Consumption

36W

40W

48W

54W

Luminous Flux (Lm)

3240~3600lm

3600~4000lm

4320~4800lm

4860~5400lm

LED Qty (pcs)

192pcs

 204pcs

252pcs

280pcs

LED Type

SMD 2835

Color Temperature (K)

2800 – 6500K

Color

Warm/Natural/Cool White

Dimension

1195x295x11mm

Beam Angle (degree)

90°

Light Efficiency (lm/w)

>90lm/w

CRI

 >80

Power Factor

 >0.95

Input Voltage

AC 85V - 265V

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and Prismatic diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Dimmable

Optional

Life span

50,000hours

Warranty

3 Years or 5 Years

3.LED Panel Light Pictures:

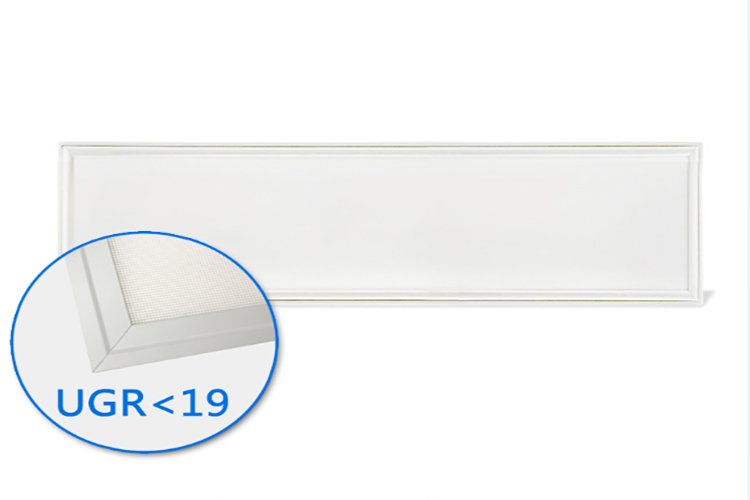

1. led panel ugr19 30x120
2. 30x120 ugr19 ugr16 led ceiling panel lamp
3. Micro Prismatic Diffuser VS Norma PS Diffuser
4. UGR19 VS Normal LED Panel Light
5. Prismatic Diffuser VS Normal Diffuser
6. UGR19 led Panel Light Photometric Test Report
7. ugr19 led flat panel light
7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

Frameless LED Sky Panel Light is widely used for office, hospital, bedroom, shopping mall, schools, factories, gym, hotel, anime city etc.

Wall Mounted Installation Project:

11. wall mounted ugr16 led panel light

Recessed Installation Project:

8. 300x1200 recessed ugr16 led panel

Suspended Installation Project:

10. suspended led panel light 30x120

Surface Mounted Installation Project:

9. led surface panel light 295x1195mm


Product detail pictures:

Personlized Products Led Rgb Panel - Prismatic Diffuser 30×120 Recessed Anti-Dazzle UGR19 LED Panel Light 295×1195 – Lightman detail pictures

Personlized Products Led Rgb Panel - Prismatic Diffuser 30×120 Recessed Anti-Dazzle UGR19 LED Panel Light 295×1195 – Lightman detail pictures

Personlized Products Led Rgb Panel - Prismatic Diffuser 30×120 Recessed Anti-Dazzle UGR19 LED Panel Light 295×1195 – Lightman detail pictures
