Reliable Supplier Led Panel 12v - 36W 40W 62×62 Recessed Motion Sensor LED Panel Light 60×60 – Lightman Detail:

1. Product Features of 60×60 Motion Sensor LED Panel Light.

• Housing of strong 6063 aluminum, with white and silver finish color for selection.

• Different sizes of LED panel light for your options. Diversity in shape (square, rectangle)

• LED panel light is easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.

•Lightman adopts high brightness low decay 26lm-28lm 0.2w Epistar SMD 2835 led chip with better heat dissipation.

• Innovated structure heating design.

• Lock cable DC plug for Lightman led panel light.

•No flicker, No UV, No lead and No glare.

•Easy to install. Ideal to be built into system ceilings, offices, and can be used as a suspended light fixture.

2. Product Specification:

Model No	PL-6060-36W	PL-6060-40W	PL-6060-48W	PL-6060-54W
Power Consumption	36 W	40 W	48 W	54 W
LED Qty(pcs)	204pcs	204 pcs	252 pcs	280 pcs
LED Type	SMD 2835
Color Temperature (K)	2700 - 6500K
Color	Warm/Natural/Cool White
Light Efficiency (lm/w)	85lm/w～120lm/W
Dimension	595x595x10mm
Beam Angle (degree)	>120°
CRI	>80Ra / >90Ra
Power Factor	>0.95
Input Voltage	AC180V - 260V/100~240Vac
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS Diffuser
Frame Color RAL	Pure white/RAL9016; Silver
IP Rating	IP20
IK Grade	IK06
Operating Temperature	-20°~65°
Dimmable Solution	Dali/0~10V/PWM/Triac Optional
Life span	60,000hours
Warranty	3 Years or 5 Years

3. LED Panel Light Pictures:

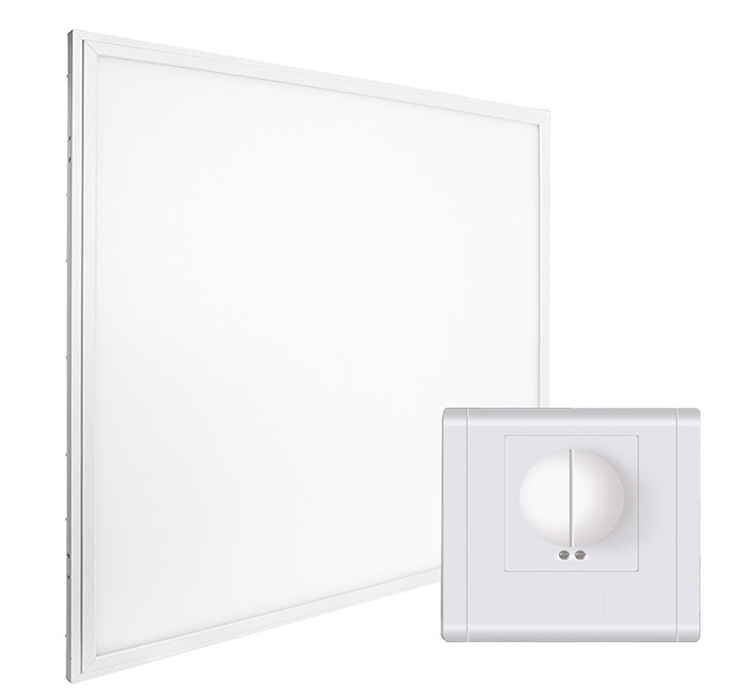

1. motion sensor led panel light 60x60

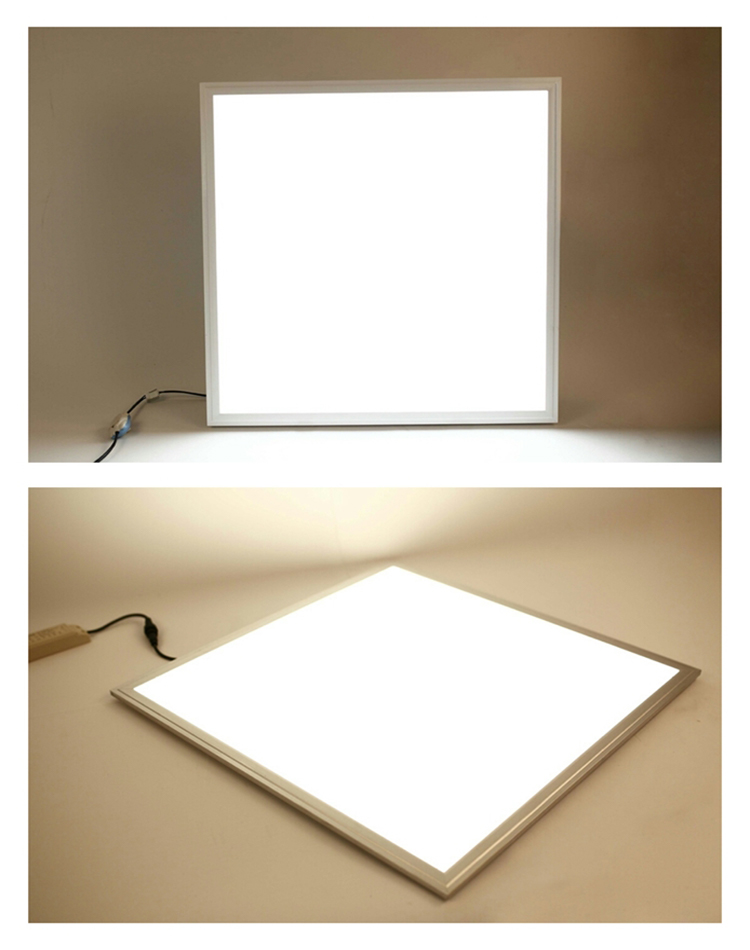

2. motion sensor led panel lamp 595x595
3. 40w motion sensor led flat panel lamp 600x600
4. motion sensor led ceiling panel light 60x60cm

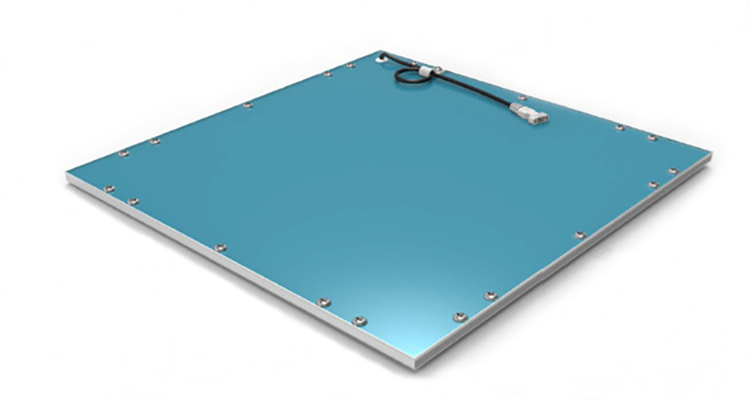

7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

LED Panel Light is widely used in office spaces, major retail stores, education, government, healthcare, and hospitals.

Surface Mounted Project:

8. surface mounted installation example

Suspended Installation Project:

9. suspended led panel installation example

Wall Mounted Installation Project:

10. wall mounted led panel installation example

Recessed Installation Project:

7. recessed led panel installation example
