TUV VDE DALI Dimmable LED Flat Panel Light 62×62 620×620 54W

Ultra thin flat panel LED lights are most desirable for offices, conference rooms, corridors, industrial buildings, retail establishments, classrooms and homes. This clean design not only looks good but the panel itself is hassle-free to keep clean which is a good choice for areas where hygiene is of the uttermost importance. This super bright LED panel lighting has a high lumen output and offers consumers significant savings over using conventional fluorescent fittings.

Item: 62x62 DALI Dimmable LED Panel Light

Power: 36W /40W /60W /80W

Dimmable: DALI Dimmable

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product video

1.Product Introduction of 62x62cm DALI Dimmable LED Panel Light.

•Lightman Dali led ceiling panel lamp 620x620 adopts 6063 aluminum frame with good heat conduction.

•Superior Performance of Light Uniform, Good Cooling, No Light Leakage.

•Lightman 62x62 Dali dimmable led flat panel lighting uses high quality SMD2835 LED as light source, which is high brightness, long life and less heat.

•Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks.

•Flicker-Free Lighting: Eliminate eye strain and headaches.

•DALI dimming led office ceiling panel light 62*62 LGP is made from PMMA, and it's net-spot is processed by Laser machine. Those make light good distribution, high lumen output, and free from glare.

2. Product Parameter:

Model No	PL-6262-36W	PL-6262-40W	PL-6262-60W	PL-6262-80W
Power Consumption	36W	40W	60W	80W
Luminous Flux (Lm)	2880～3240lm	3200～3600lm	4800～5400lm	6400～7200lm
LED Qty (pcs)	192pcs	204pcs	300pcs	432pcs
LED Type	SMD 2835
Color Temperature (K)	2800 – 6500K
Color	Warm/Natural/Cool White
Dimension	620x620x10mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS Diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	DALI Dimmable
Life span	50,000hours
Warranty	3 Years/5 Years

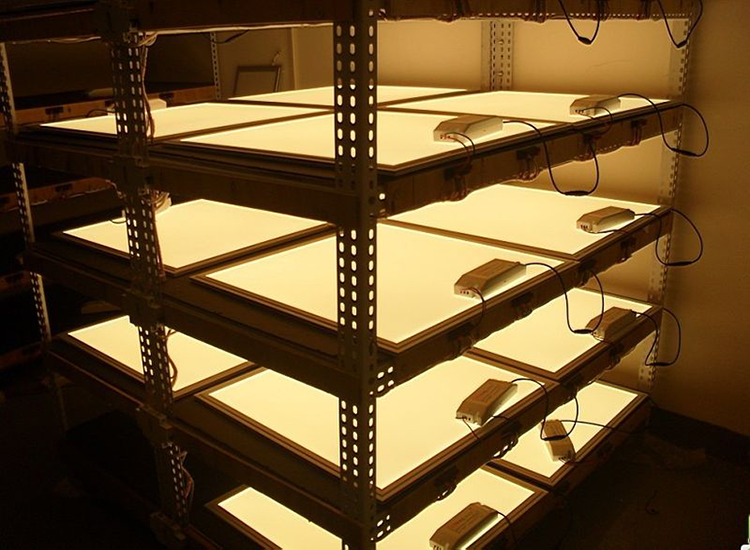

3.LED Panel Light Pictures:

2. 60x60 dimmable led ceiling panel lamp

4. LED Panel Light Application:

High performance LED ceiling panels are the ideal energy efficient replacement for fluorescent fixtures in offices, schools, hospitality, healthcare and other commercial and industrial applications.

Recessed Installation Project:

Surface Mounted Installation Project:

Suspended Installation Project:

Wall Mounted Installation Project:

Previous: 40W 100lm/w DALI Dimmable LED Ceiling Flat Panel Light 595 595

Next: Acrylic Rectangular 30x120cm DALI Tunable White Dimmable LED Flat Ceiling Panel Light

Installation Guide:

For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements.

Suspension Kit:

The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

Items included in the Suspended Mount Kit:

Items	PL-SCK4				PL-SCK6
	3030	3060	6060	6262	3012	6012
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 4				X 6

Surface Mount Frame Kit:

This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the three frame sides to the ceiling. The LED panel is then slid in. At last complete the installation by screwing the remaining side.

The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

Items included in the Surface Mount Frame Kit:

Items	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Dimension	302x305x50 mm	302x605x50 mm	602x605x50 mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Frame A	L302 mm X 2 pcs	L302mm X 2 pcs	L602 mm X 2 pcs	L622mm X 2 pcs	L1202mm X 2 pcs	L1202 mm X 2 pcs
Frame B	L305 mm X 2 pcs	L305 mm X 2 pcs	L605mm X 2 pcs	L625 mm X 2 pcs	L305mm X 2 pcs	L605mm X 2 pcs
	X 8 pcs
	X 4 pcs			X 6 pcs

Ceiling Mount Kit:

The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the clips to the ceiling / wall, and the corresponding clips to the LED panel. Then couple the clips . At last complete the installation by placing the LED driver at the back of the LED panel.

Items included in the Ceiling Mount Kits:

Items	PL-SMC4				PL-SMC6
	3030	3060	6060	6262	3012	6012
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
